WAGO priechodný konektor pre 2773-2401, Push-in, max. 4 mm², 2 vodiče

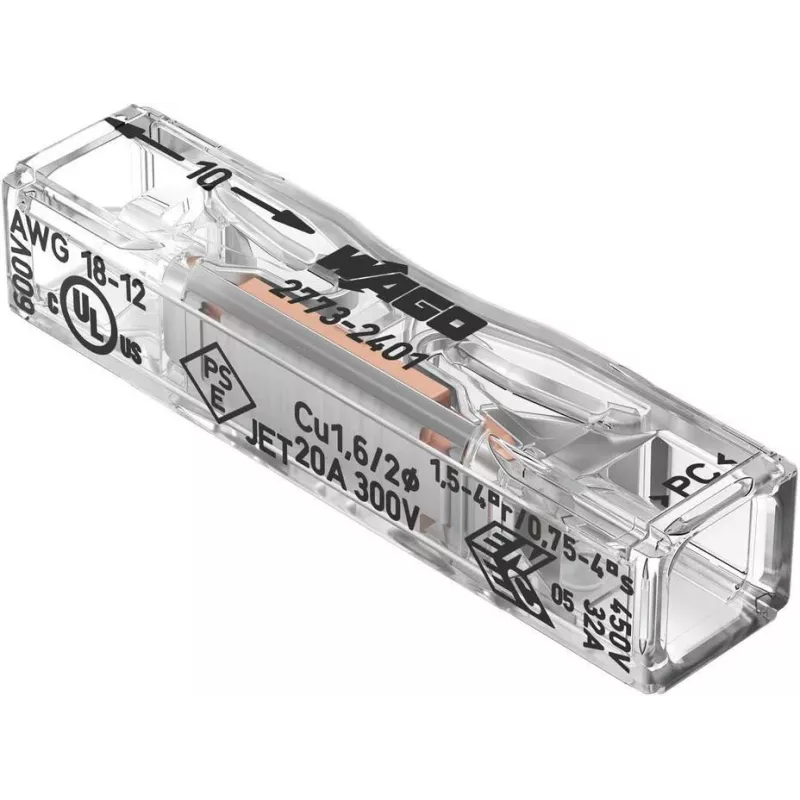

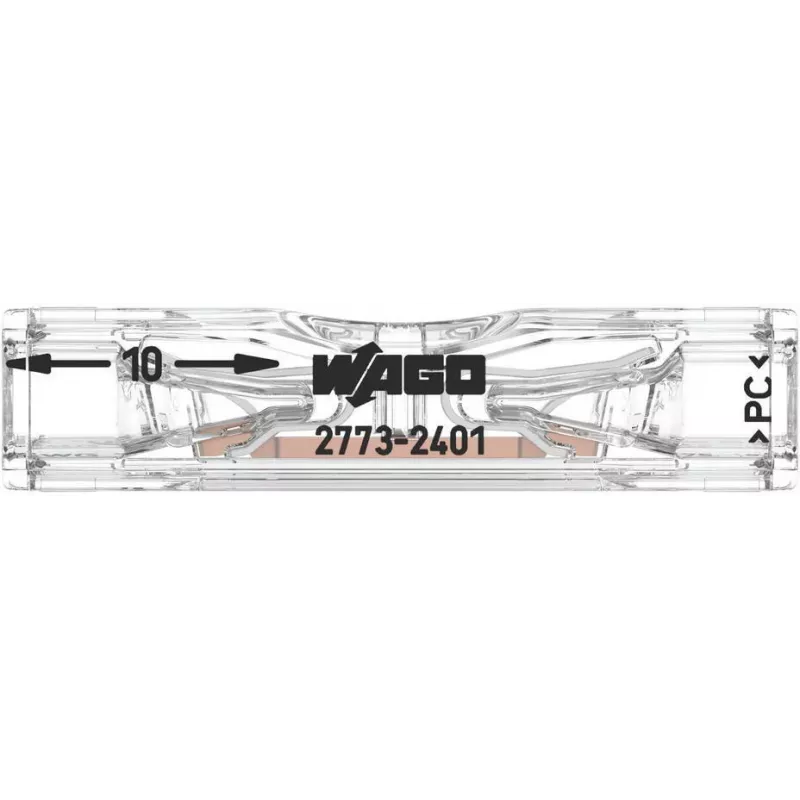

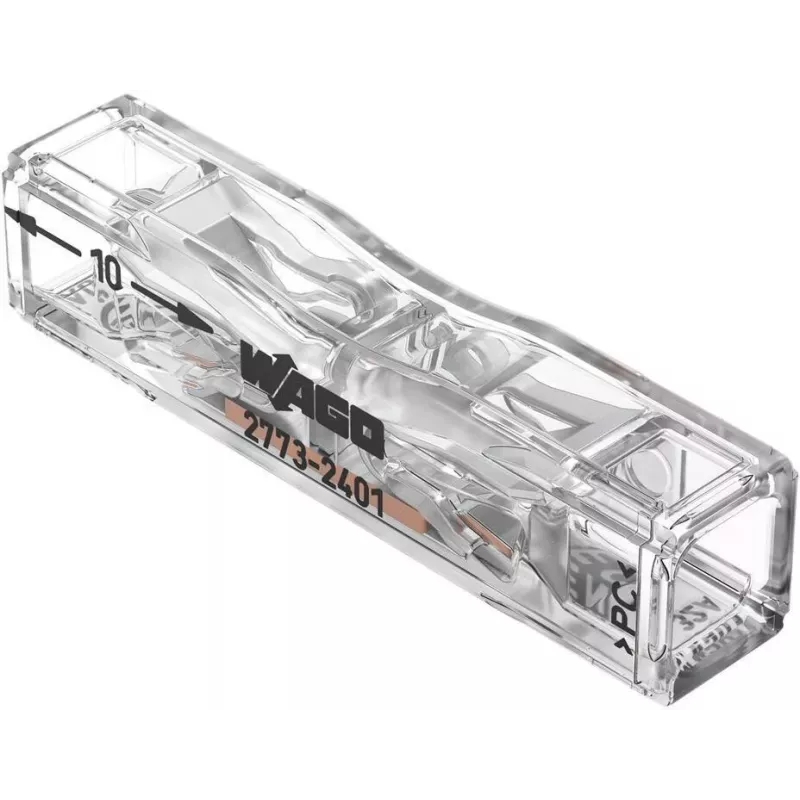

The WAGO Through Connector 2773-2401 is a compact, push-in terminal block from the WAGO COMPACT Series 2773, designed for reliable and tool-free wiring of solid and stranded conductors. Ideal for junction boxes and control cabinets, this transparent/orange connector accommodates up to 2 conductors with a maximum cross-section of 4 mm² (12 AWG) and offers a rated voltage of 450 V and rated current of 32 A.

Advantages

Tool-free push-in connection saves installation time. Compact design fits tight spaces. Transparent housing allows visual inspection of conductor insertion. High current and voltage ratings suitable for industrial applications. VDE, UL, and CSA approved for global use.

Suitable for

• Junction boxes and distribution boards
• Control cabinet wiring
• Lighting and power circuits
• Industrial automation and building installations

Key specifications

• Series: WAGO COMPACT Series 2773
• Number of Conductors: 2
• Connection Type: Push-in (PUSH WIRE®)
• Max. Conductor Cross-Section: 0.5 - 4 mm² (20 - 12 AWG) for solid, stranded, and fine-stranded
• Rated Voltage (EN): 450 V
• Rated Current (EN): 32 A
• Rated Impulse Voltage: 4 kV
• Stripping Length: 11 mm (0.43 inch)
• Wiring Type: Side-entry
• Color: Transparent / Orange
• Housing Material: Polycarbonate (PC)
• Contact Material: Electrolytic copper, tin-plated
• Operating Temperature: -20 to +85 °C
• Flammability Rating: UL94 V-2
• Pollution Degree: 2
• Approvals: VDE, UL, CSA

Recommendations

For optimal performance, use with solid or stranded copper conductors. Ensure proper stripping length (11 mm) for secure connection. Suitable for use in dry and damp environments.
