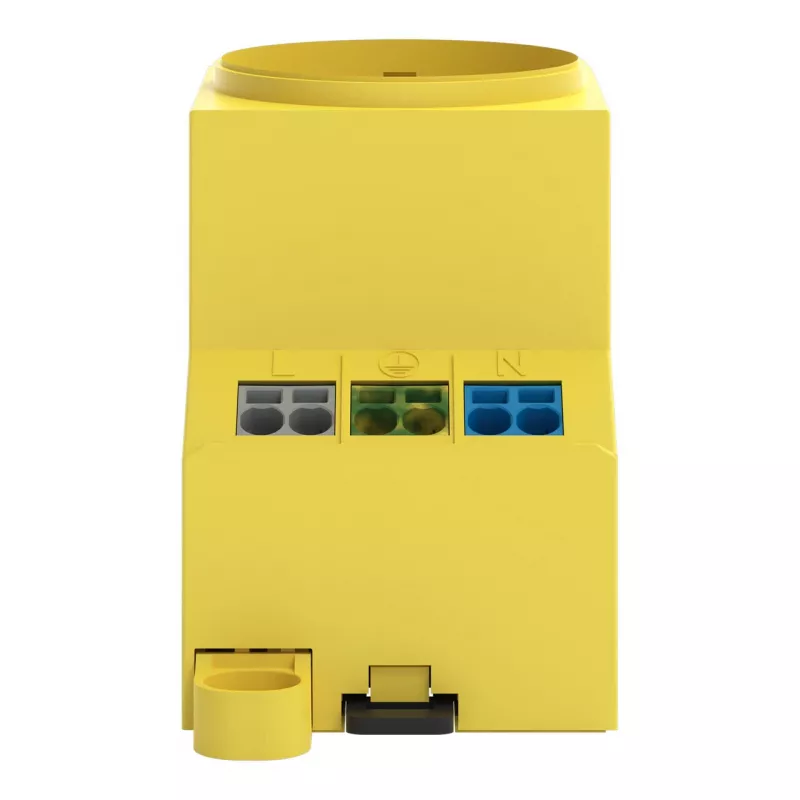

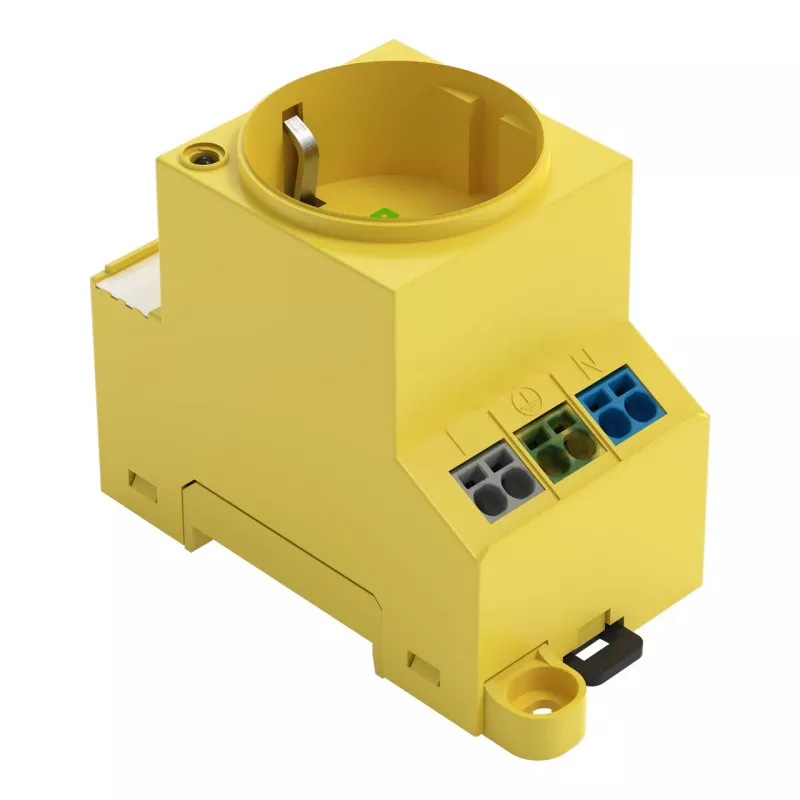

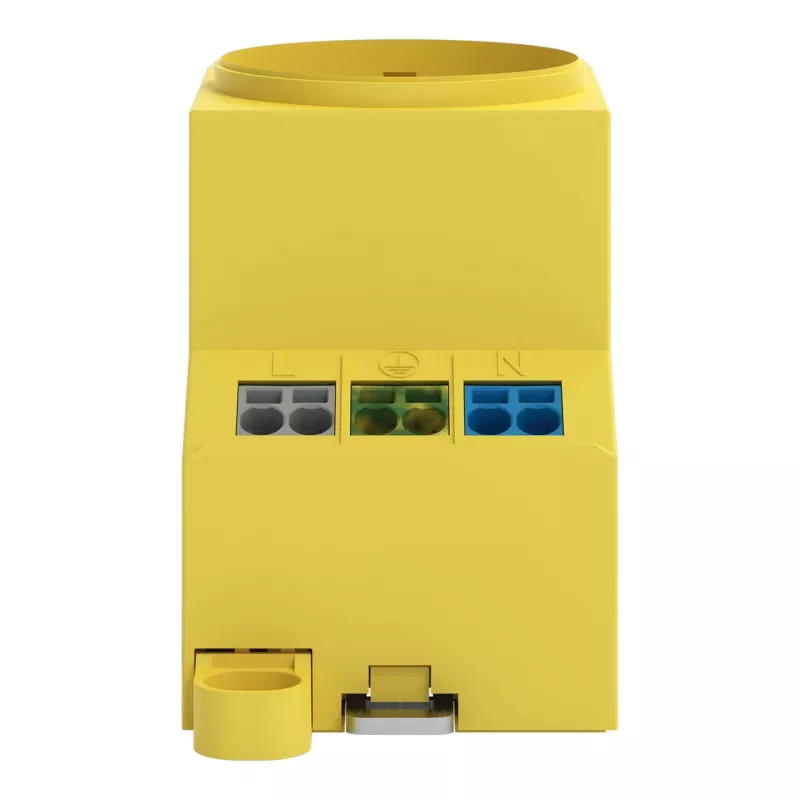

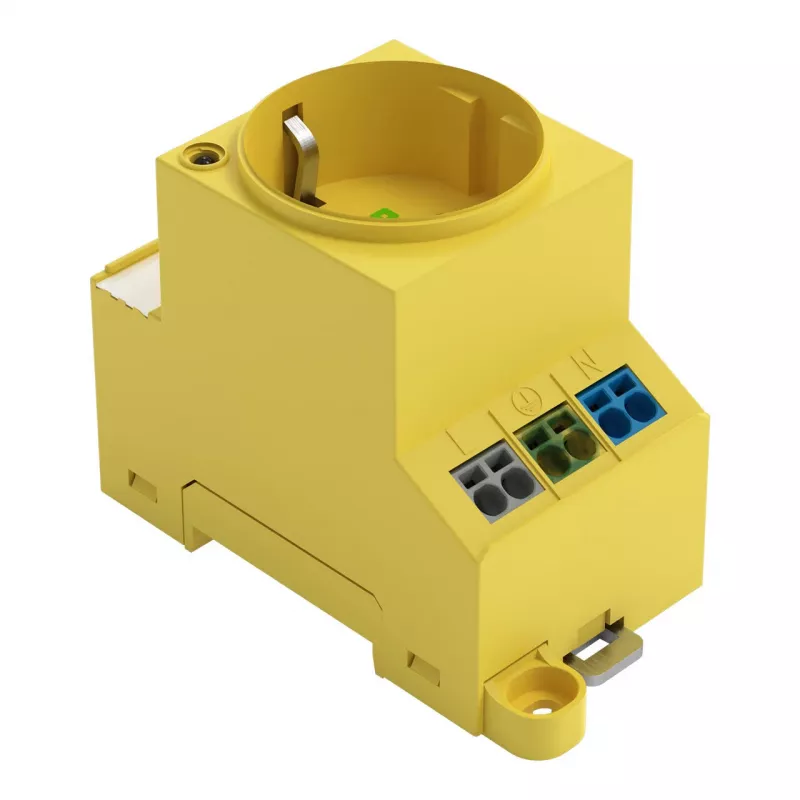

WAGO zásuvka do rozvádzača 709-582 žltá 1 ks

The WAGO 709-582 is a robust control cabinet socket designed for reliable power distribution in industrial environments. Featuring a Schuko (Type F) outlet with CAGE CLAMP® connection technology, it ensures secure and maintenance-free wiring. The yellow housing provides high visibility for safety, and the compact design allows for easy mounting on DIN rails or directly in control cabinets.

Advantages

• CAGE CLAMP® spring connection for fast, vibration-proof wiring
• Compact design saves space in control cabinets
• High visibility yellow color for safety identification
• VDE and cULus approved for global use

Suitable for

• Control cabinet power distribution
• Industrial automation panels
• Machine building and switchgear

Key specifications

• Socket type: Schuko (Type F)
• Number of outlets: 1
• Rated voltage: 250 V AC
• Rated current: 16 A
• Connection: CAGE CLAMP®
• Conductor cross-section: 0.5 - 2.5 mm² (solid/stranded)
• Mounting: Screw or DIN-rail adapter
• Color: Yellow
• Protection class: IP20
• Operating temperature: -20 to +60 °C
• Housing material: Polyamide 66 (PA 66)
• Flammability rating: UL94 V-0
• Approvals: VDE, cULus, EAC

Recommendations

For optimal performance, use with WAGO mounting accessories and ensure proper conductor stripping length of 9-10 mm. Suitable for use in distribution boards and control cabinets requiring a single Schuko outlet.
