Weidmüller AITB 2.5 N-L-PE inštalačná radová svorka 2669020000

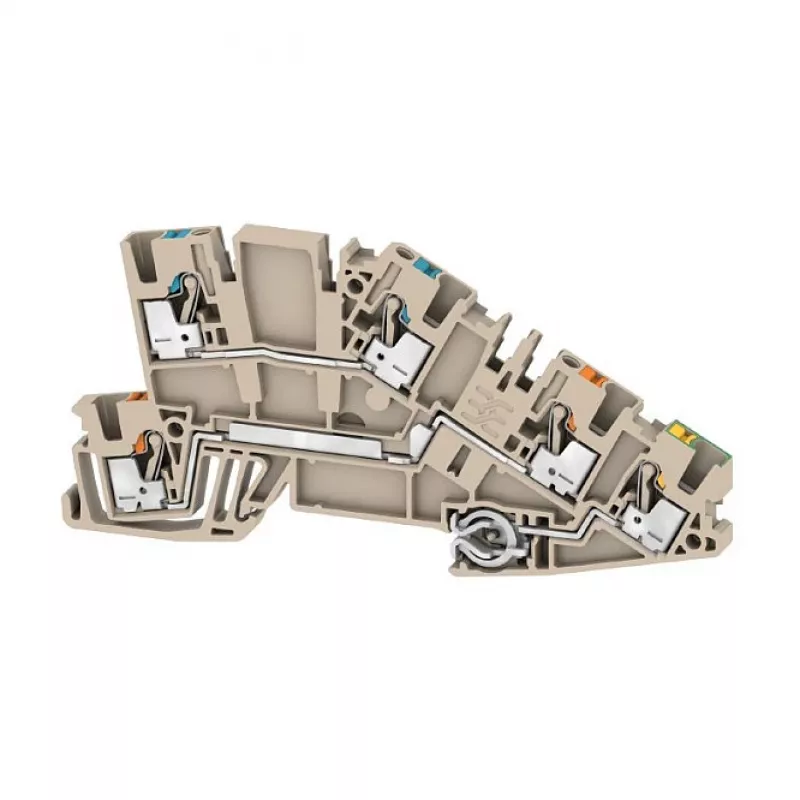

The Weidmüller AITB 2.5 N-L-PE is a high-quality installation terminal block designed for reliable and safe electrical connections in industrial and building installations. This three-potential terminal block integrates N, L, and PE functions in a single compact unit, simplifying wiring and saving space on the DIN rail.

Advantages

With PUSH IN connection technology, the AITB 2.5 N-L-PE enables fast, tool-free wiring, reducing installation time and labor costs. The Wemid insulating material provides excellent thermal and mechanical resistance, ensuring long-term performance even in demanding environments. The clear colour coding (grey housing, blue N, green/yellow PE) minimizes wiring errors and enhances safety.

Suitable for

• Industrial control panels
• Building automation systems
• Distribution boards
• Lighting and power circuits requiring N, L, and PE termination

Key specifications

• Connection Technology: PUSH IN
• Number of Potentials: 3 (N, L, PE)
• Number of Connections: 6 (2x N, 2x L, 2x PE)
• Rated Cross-section: 2.5 mm²
• Rated Voltage (IEC): 400 V
• Rated Current (IEC): 24 A
• Rated Impulse Withstand Voltage: 4 kV
• Pollution Degree: 3
• Insulating Material: Wemid (PA 66)
• Mounting Type: TS 35 DIN Rail
• Operating Temperature: -50 °C to +120 °C
• Stripping Length: 10 mm
• Clamping Range (flexible with ferrule): 0.5 - 2.5 mm²
• Clamping Range (flexible without ferrule): 0.5 - 2.5 mm²
• Clamping Range (rigid): 0.5 - 4 mm²
• AWG Range: AWG 20 - AWG 12
• Colour: Grey (housing), Blue (N), Green/Yellow (PE)
• Standards: IEC 60947-7-1

Recommendations

For optimal performance, use with Weidmüller marking systems and accessories. Ensure proper stripping length and torque settings as per manufacturer guidelines.
