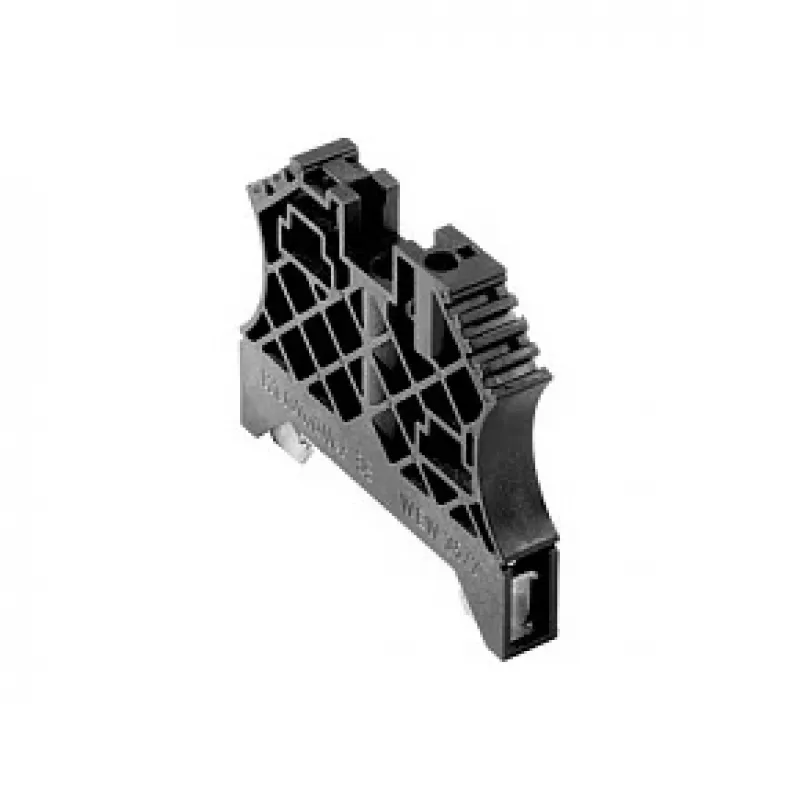

Weidmüller WEW 35/2 SW koncový uholník, čierny, lišta DIN TS 35, polyamid 66

The Weidmüller WEW 35/2 SW End Bracket is a high-quality accessory designed for securing terminal blocks and components on DIN rails. Made from durable Polyamide 66 (PA 66) in black, this end bracket ensures reliable mounting and long-lasting performance in industrial environments.

Advantages

Robust construction with UL 94 V-2 flammability rating ensures safety and durability. Wide operating temperature range from -50 to 100 °C makes it suitable for demanding applications. Easy screw-on installation saves time and effort.

Suitable for

• Securing terminal blocks on DIN rail TS 35
• Industrial control panels and electrical enclosures
• Applications requiring reliable component mounting

Key specifications

• Product Type: End Bracket
• Mounting Standard: DIN Rail TS 35
• Material: Polyamide 66 (PA 66)
• Color: Black
• Operating Temperature Range: -50 to 100 °C
• Storage Temperature Range: -50 to 100 °C
• Flammability Rating: UL 94 V-2
• Insulation Material Group: I
• Pollution Degree: 3
• Approvals: cURus, EAC
• Environmental Compliance: RoHS, REACH
• Clamping Screw Size: M4
• Installation Method: Screw-on

Recommendations

For optimal performance, use with Weidmüller terminal blocks and ensure proper torque on the clamping screw. Always follow installation guidelines for DIN rail accessories.
