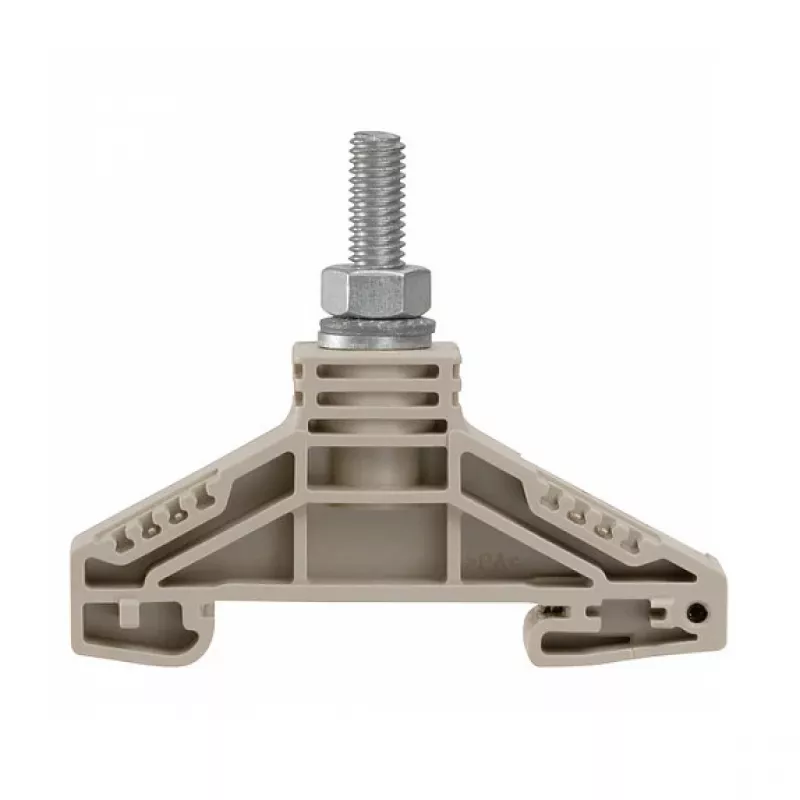

Weidmüller WF 6 svorka 35 mm², skrutková prípojka, 125 A, 1000 V, tmavobéžová

The Weidmüller WF 6 stud terminal block is a high-quality connection solution designed for reliable and secure electrical connections in industrial applications. With a rated cross-section of 35 mm² and a rated current of 125 A, this terminal block is ideal for power distribution and control systems. The stud connection ensures a robust and vibration-resistant contact, while the dark beige Wemid (PA 66) housing provides excellent insulation and durability.

Advantages

High current capacity of 125 A and voltage rating of 1000 V make it suitable for demanding applications. The stud terminal design allows for easy and secure connection of conductors. Wide operating temperature range from -50 to +120 °C ensures reliable performance in harsh environments. UL 94 V-0 flammability rating guarantees high fire safety.

Suitable for

• Power distribution panels
• Control cabinets
• Industrial automation systems
• Machine building

Key specifications

• Connection Type: Stud Terminal
• Number of Connections: 2
• Number of Potentials: 1
• Number of Levels: 1
• Rated Cross-Section: 35 mm²
• Rated Voltage (IEC): 1000 V
• Rated Current (IEC): 125 A
• Rated Impulse Voltage: 8 kV
• Insulation Material: Wemid (PA 66)
• Colour: Dark Beige
• Mounting Type: DIN Rail TS 35
• Operating Temperature Range: -50 to +120 °C
• Flammability Rating: UL 94 V-0
• Tightening Torque: 4 Nm
• Stripping Length: 20 mm
• Approvals: CE, CSA, cURus, EAC, KEMA, VDE

Recommendations

For optimal performance, use with appropriate copper conductors and ensure proper tightening torque. Suitable for use in industrial environments where high reliability and safety are required.
