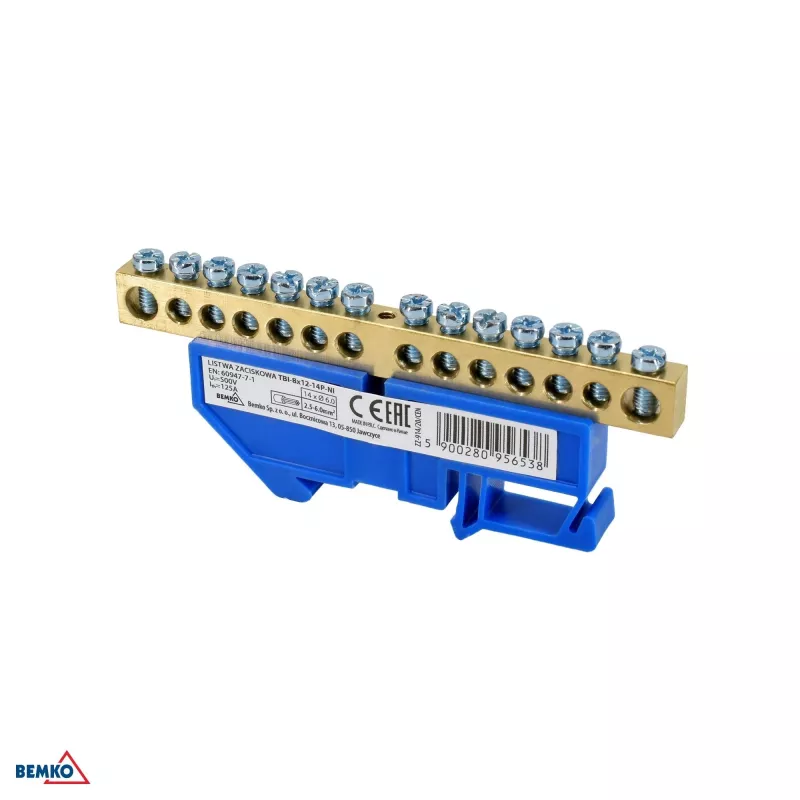

SCHELINGER 14-pólová DIN lištová svorka 8-12 mm² modrá

Terminal block for DIN rail mounting, engineered for reliable power distribution in industrial control panels and electrical installations. Its 14-pole design accommodates conductors from 8 mm² to 12 mm², supporting rated currents up to 57 A at 500 V. The blue polyamide housing provides excellent insulation and mechanical protection, while nickel-plated brass terminals and galvanized steel screws ensure durable, low-resistance connections. With a flammability rating of UL94 V-0 and an operating temperature range of -25°C to +100°C, this terminal block is built for demanding environments.

Advantages

Secure screw clamp connections with a recommended torque of 1.2 Nm guarantee vibration-resistant, maintenance-free terminations. The compact design saves space on the DIN rail, and the IP20 degree of protection is suitable for use in enclosed panels. The blue color allows for easy identification of neutral or specific circuit groups in complex wiring systems.

Suitable for

• Industrial control panels
• Distribution boards
• Electrical installations in machinery
• Building automation systems
• Power supply distribution

Key specifications

• Number of poles: 14
• Conductor cross-section: 8 mm² to 12 mm²
• Rated voltage: 500 V
• Rated current: 57 A
• Connection type: Screw clamp
• Wire stripping length: 12 mm
• Flammability rating: UL94 V-0
• Degree of protection: IP20
• Standard compliance: IEC 60947-7-1

Recommendations

For optimal performance, use ferrules on stranded conductors and tighten screws to the recommended torque.
