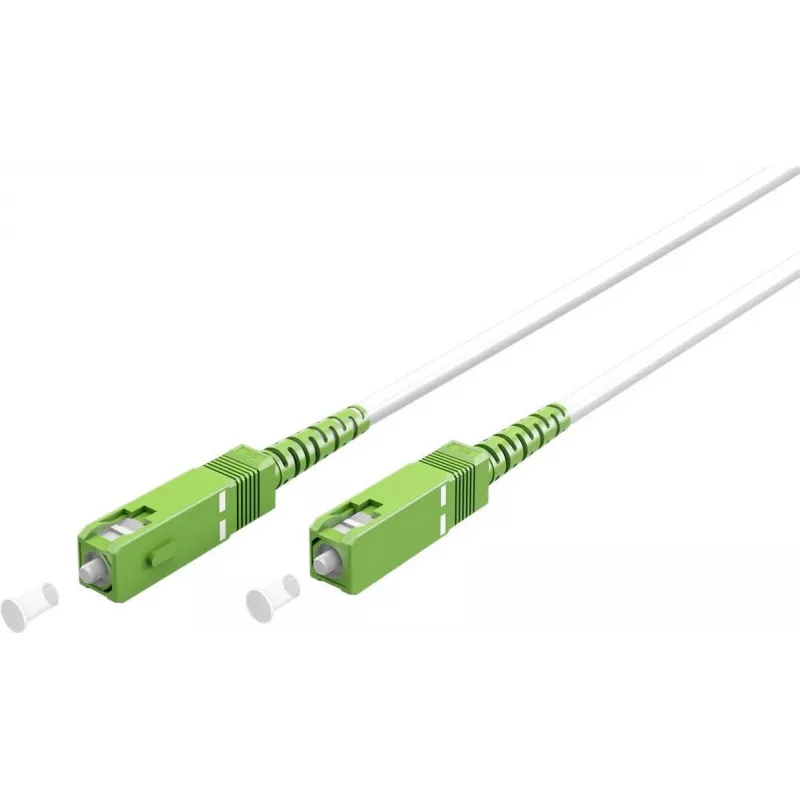

Wentronic Goobay 59596 SC/APC na SC/APC Single-Mode OS2 optický patch kábel, 3 m, LSZH, biela

The Goobay 59596 stands apart from generic fibre patch leads by pairing a true OS2 single-mode core with precision SC/APC connectors. The angled polish on both ends cuts back reflections dramatically, which keeps your FTTH link stable even when the line is pushed to its limits. A 3-metre reach gives you enough slack to route cleanly between the ONT and the wall outlet, while the white LSZH jacket stays discreet in living spaces.

Highlights

• SC/APC to SC/APC connectors with ceramic ferrules for reliable mating
• OS2 single-mode fibre, 9/125 µm, compliant with ITU-T G.657.A1/A2 for bend resistance
• Typical insertion loss ≤ 0.3 dB and return loss ≥ 60 dB
• LSZH (Low Smoke Zero Halogen) jacket for improved fire safety
• 3 mm simplex cable with a minimum bend radius of just 10 mm
• White jacket blends into home and office environments

In daily use

This patch cable is built for FTTH installations where a clean, low-reflection link matters. The APC polish reduces back reflections that can degrade signal quality, making it a solid choice for GPON, XGS-PON, and other single-mode applications. The LSZH jacket means it can be run through walls or conduits without adding halogenated smoke risk in case of fire. With a 3-metre length, it bridges the gap between the fibre termination point and your router or media converter without excess slack.

Full specifications

• Product type: Fibre optic patch cable
• Fibre mode: Single-mode OS2
• Connector A: SC/APC
• Connector B: SC/APC
• Cable length: 3 m
• Core/cladding diameter: 9/125 µm
• Insertion loss (typical): ≤ 0.3 dB
• Return loss (typical): ≥ 60 dB
• Ferrule material: Ceramic
• Polish type: APC (Angled Physical Contact)
• Cable construction: Simplex
• Jacket material: LSZH
• Jacket colour: White
• Cable diameter: 3 mm
• Minimum bend radius: 10 mm
• Operating temperature: -20 °C to +70 °C
• Storage temperature: -40 °C to +85 °C
• Application: FTTH (Fibre To The Home)

Final note

For installers and home users who need a dependable SC/APC link with low reflection and a safety-conscious jacket, the Goobay 59596 delivers consistent performance without fuss.
