Wirewin Cat.6 SLIM patch kábel U/UTP 25 m fialový PKW-SLIM-KAT6 25.0 VT

With a 250 MHz bandwidth and Gigabit Ethernet support, this Cat.6 slim patch cable delivers high-speed data transfer up to 1000 Mbps while its 4.0 mm outer diameter saves space in dense installations.

Overview

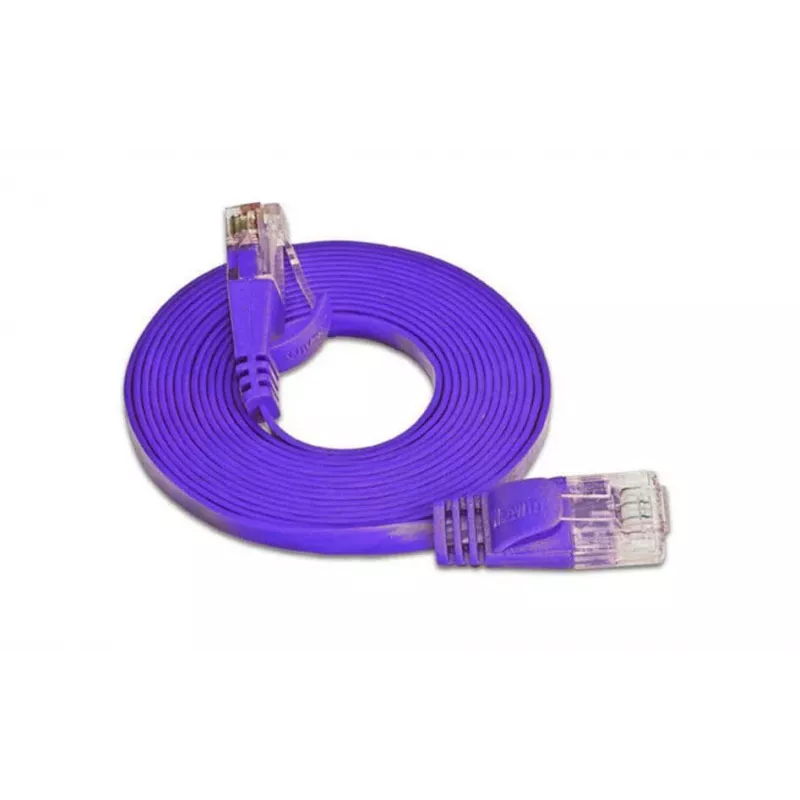

The SLIM WIREWIN PKW-SLIM-KAT6 25.0 VT is a 25-meter Cat.6 U/UTP patch cable with RJ45 connectors. Its slim design and LSZH jacket make it suitable for structured cabling in offices and data centers where space and fire safety are priorities.

What stands out

• Ultra-slim 4.0 mm outer diameter for high-density patching
• Stranded copper conductors (AWG 28/7) for flexibility
• Gold-plated RJ45 connectors (50µ") ensure reliable connections
• LSZH jacket: low smoke and halogen-free
• Supports Power over Ethernet (PoE) applications

Technical details

• Category: Cat.6
• Shielding: U/UTP (unshielded)
• Length: 25 m
• Colour: Violet
• Connector type: RJ45 (8P8C)
• Conductor material: Copper (Cu)
• Conductor gauge: AWG 28/7 (stranded)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Bandwidth: 250 MHz
• Data transfer rate: up to 1000 Mbps (Gigabit Ethernet)
• Wiring standard: TIA/EIA 568B
• Outer diameter: approx. 4.0 mm
• Operating temperature: -20°C to +60°C

Our verdict

A reliable slim Cat.6 patch cable for high-density network environments, offering Gigabit performance and a halogen-free jacket.
