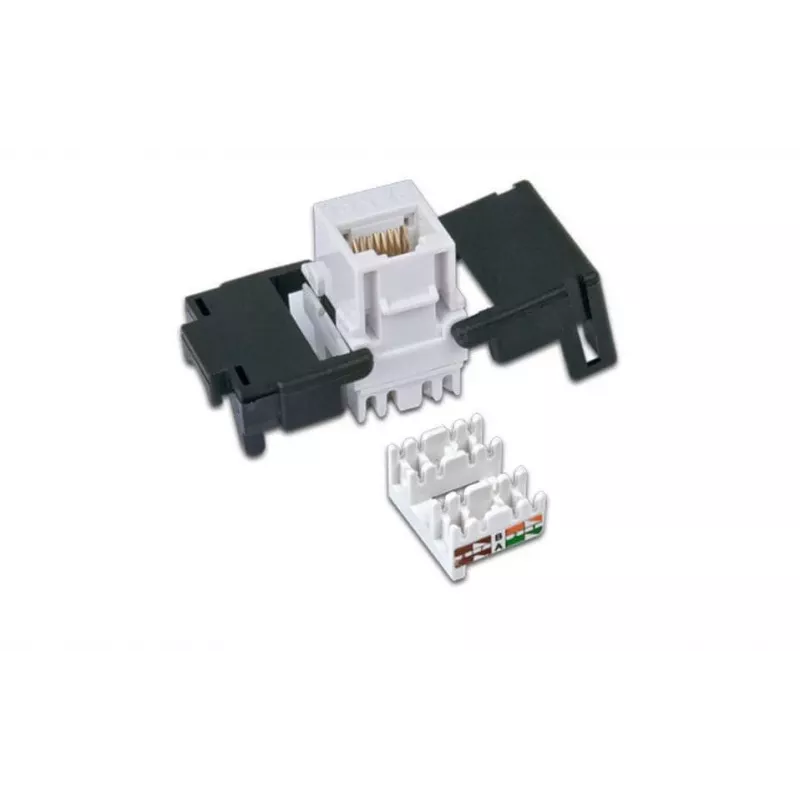

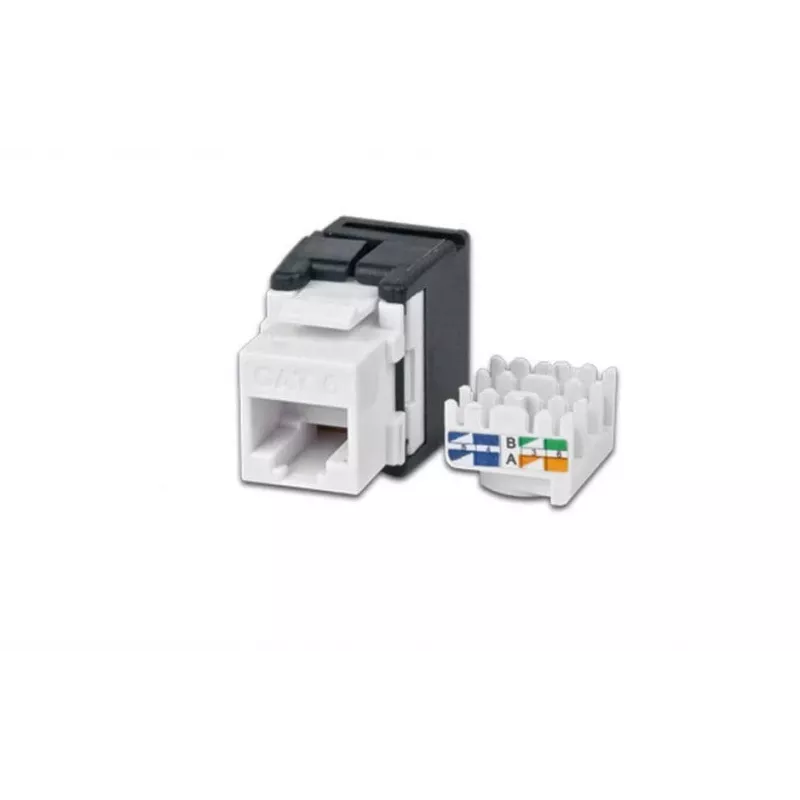

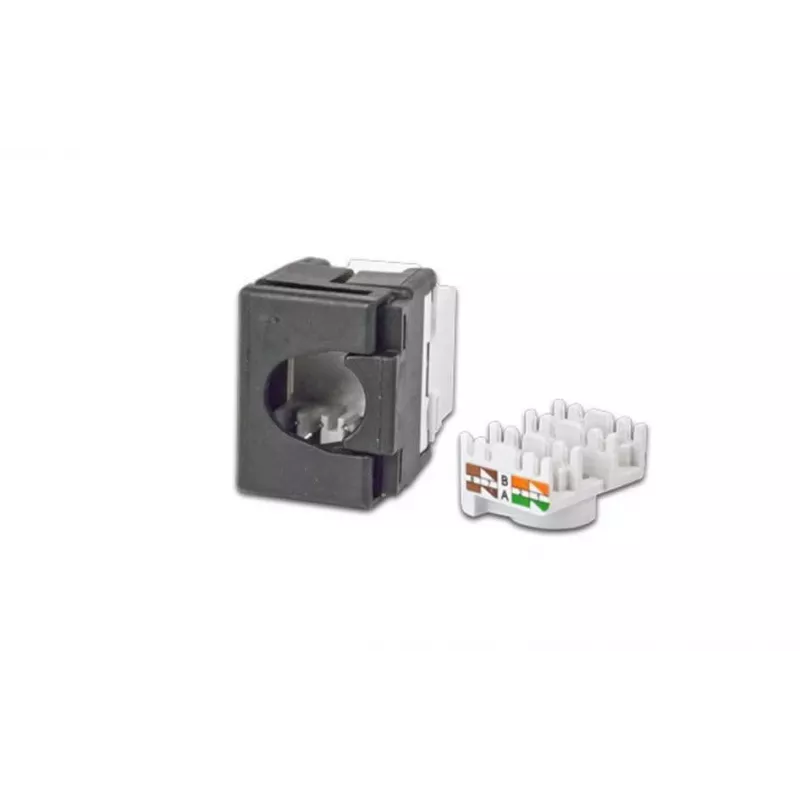

Wirewin WKS JACK KAT6A UTP keystone modul, netienený, RJ45, bez nástroja, biela

Terminating CAT6A cables in tight spaces can be slow and error-prone, but the SLIM WIREWIN WKS JACK KAT6A UTP Keystone Module makes it fast and reliable. This unshielded keystone jack snaps into standard cutouts and supports 10 Gigabit Ethernet without special tools.

Who is it for

Network installers and IT technicians who need a dependable, tool-less CAT6A termination for patch panels, wall outlets, and surface mount boxes. It suits both solid and stranded conductors from AWG 22 to 24.

Main features

• CAT6A performance up to 500 MHz and 10 Gbps
• Unshielded (UTP) design for standard installations
• Tool-less LSA+ (IDC) termination with colour-coded TIA/EIA 568A/B wiring
• Gold-plated contacts (50µ") for reliable connections and over 750 mating cycles
• Fits standard keystone cutouts (19.2 x 14.9 mm)

Specifications

• Performance category: CAT6A (Class EA)
• Shielding: Unshielded (UTP)
• Data rate: Up to 10 Gigabit Ethernet
• Bandwidth: Up to 500 MHz
• Connector type (front): RJ45 (8P8C)
• Termination type (rear): LSA+ (IDC)
• Wiring scheme: TIA/EIA 568A/B
• Contact plating: Gold-plated (50µ")
• Housing material: ABS / PC
• Conductor compatibility: AWG 22-24 solid and stranded
• Mating cycles: >750
• Operating temperature: -10°C to +60°C
• Colour: White
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Number of ports: 1

Tips

For best performance, keep pair twists as close to the IDC block as possible and use the same wiring scheme on both ends.
