Wittenberg Antennen 103505 TNC konektor samec na N konektor samica adaptér, 50 Ohm, DC-11 GHz

With a frequency range up to 11 GHz and VSWR ≤ 1.2:1 through 6 GHz, this TNC male to N female adapter maintains signal integrity in RF coaxial systems. The 50 Ohm impedance matches standard RF components, making it suitable for antennas and test setups.

Overview

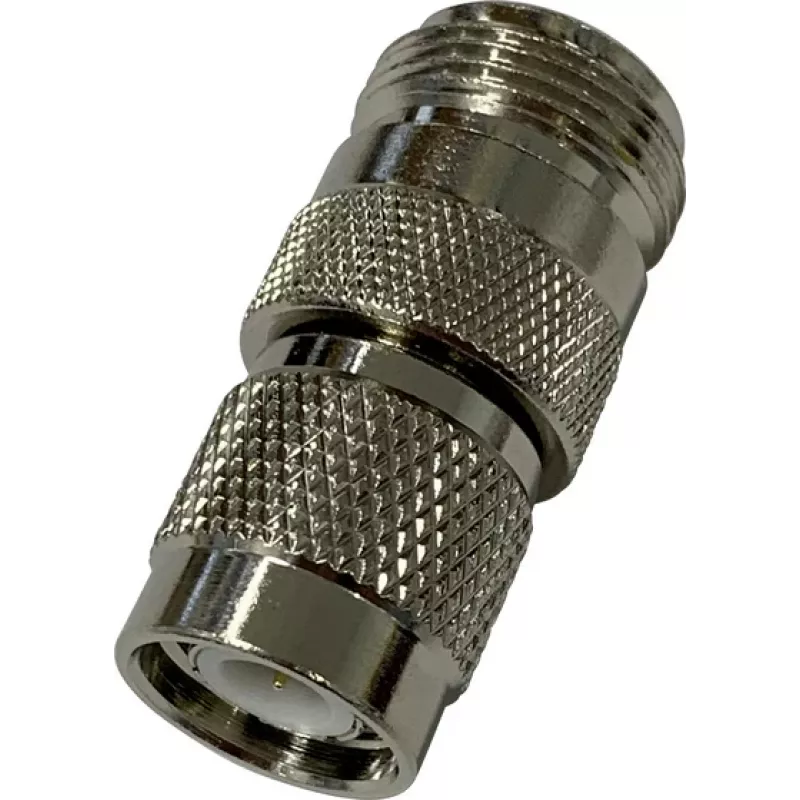

The Wittenberg Antennen 103505 is a straight RF coaxial adapter with a TNC male plug on one end and an N female jack on the other. Both connectors use threaded coupling for secure mating. The body is brass with nickel plating, while the center contacts are brass with gold plating for reliable conductivity. PTFE insulation provides thermal stability across a wide temperature range.

What stands out

• Frequency range: DC to 11 GHz
• VSWR ≤ 1.2:1 up to 6 GHz
• Gold-plated center contacts
• PTFE insulator
• Operating temperature: -55°C to +155°C

Technical details

• Connector 1: TNC male (plug), threaded
• Connector 2: N female (jack), threaded
• Impedance: 50 Ohm
• Body material: Brass, nickel plated
• Contact material: Brass, gold plated
• Insulator: PTFE
• Dielectric withstanding voltage: 1500 V RMS
• Insulation resistance: ≥ 5000 MΩ
• Mating cycles: ≥ 500

Our verdict

A precision adapter built for demanding RF applications, offering low VSWR and durable construction.
