Wittenberg Antennen SMA adaptér konektor samec na konektor samec 50 Ohm rovný 103512

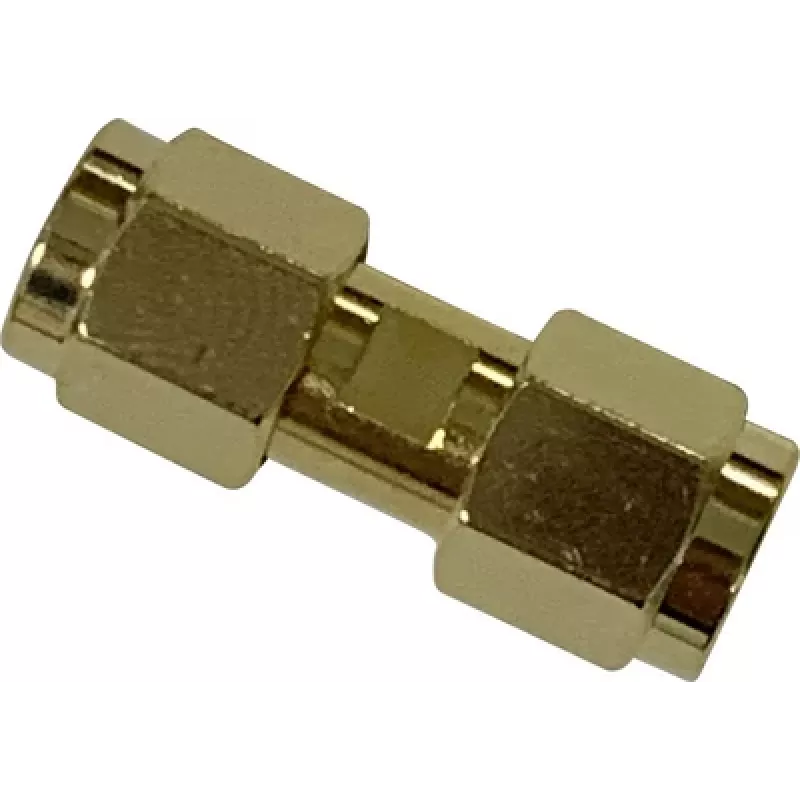

RF coaxial connections often fail when two SMA male interfaces need to be joined directly. The Wittenberg Antennen SMA Adapter Male to Male solves this by providing a straight, in-line connection between two SMA male connectors, maintaining a 50 Ohm impedance across the link.

Who is it for

This adapter is for RF technicians, radio amateurs, and electronics engineers who need to connect two SMA male-terminated cables or devices in test setups, antenna systems, or compact RF assemblies.

Main features

• SMA male to SMA male, straight body
• 50 Ohm impedance for standard RF systems
• Frequency range DC to 6 GHz
• Nickel-plated brass body, gold-plated center contacts
• PTFE insulator for low loss and high stability

Specifications

• Connector A: SMA male
• Connector B: SMA male
• Impedance: 50 Ohm
• Frequency range: DC - 6 GHz
• VSWR: < 1.2:1
• Body material: Brass, nickel plated
• Center contact: Gold plated
• Insulator: PTFE
• Dielectric withstanding voltage: 1000 V RMS
• Insulation resistance: ≥ 5000 MOhm
• Contact resistance center: ≤ 3 mOhm
• Contact resistance outer: ≤ 2 mOhm
• Durability: 500 mating cycles
• Operating temperature: -65°C to +165°C
• Mounting type: In-line / free hanging

Tips

Ensure both mating connectors are SMA male. For best performance, keep connections clean and torque to manufacturer recommendations.
