WLAN access point T-bar držiak Lancom Systems LX-7000 pre LX-7500 LX-7300, biely, balenie 5 ks

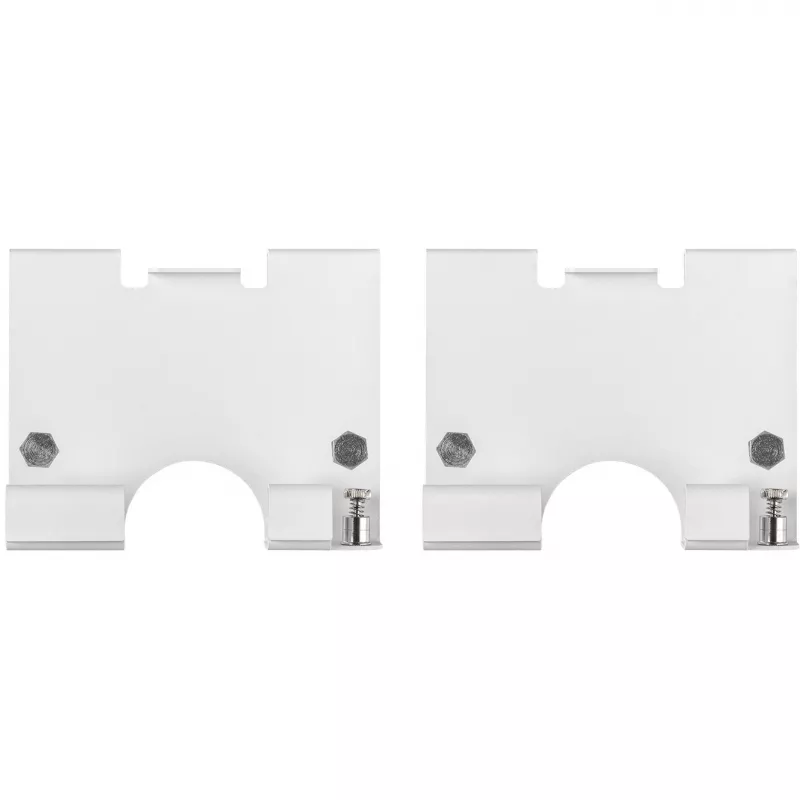

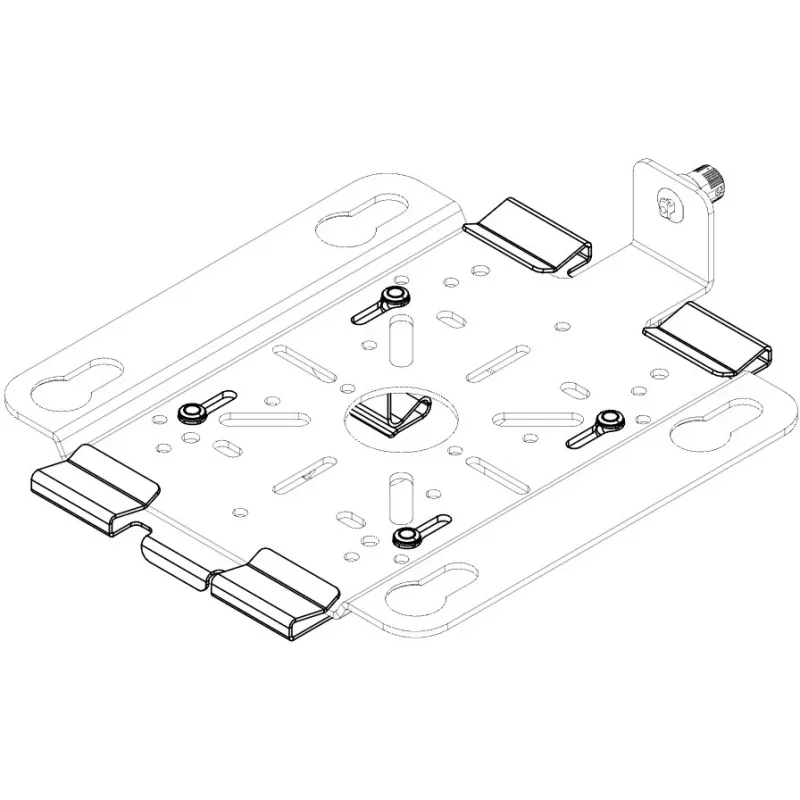

The LANCOM LX-7000 T-bar mount is a metal and plastic ceiling bracket designed for suspended (T-bar) ceilings to hold LANCOM WLAN access points of the LX-7000 series. Supplied in a pack of five white mounts, it provides a structured way to position LX-7000, LX-7500 and LX-7300 access points on support rails, reducing the need to work above the ceiling tiles and minimizing risk of damage to tiles. The mount is manufactured in Taiwan and includes pre-assembled locking screws and installation instructions to simplify the fitting process.

Advantages

The design allows secure fixation of enterprise-class access points directly to ceiling support rails, offering stable mechanical support and consistent alignment for optimal radio coverage. Being supplied as a bulk pack of five supports efficient deployment across multiple rooms or floors. Pre-assembled fasteners and clear instructions reduce installation time and the potential for mounting errors. The neutral white finish integrates with common office and public building interiors.

Suitable for

• Mounting LANCOM LX-7000 series access points on suspended (T-bar) ceilings
• Office spaces, classrooms and meeting rooms where ceiling-mounted Wi‑Fi is required
• Public buildings and facilities with grid or Odenwald-type ceilings

Key specifications

• Material: metal and plastic components
• Color: white
• Compatibility: designed for LANCOM LX-7000 series access points including LX-7500 and LX-7300
• Includes: pre-assembled locking screws and installation instructions
• Pack contents: 5 mounting units
• Intended ceiling type: suspended (T-bar) / grid / Odenwald ceilings
• Country of manufacture: Taiwan

How to use

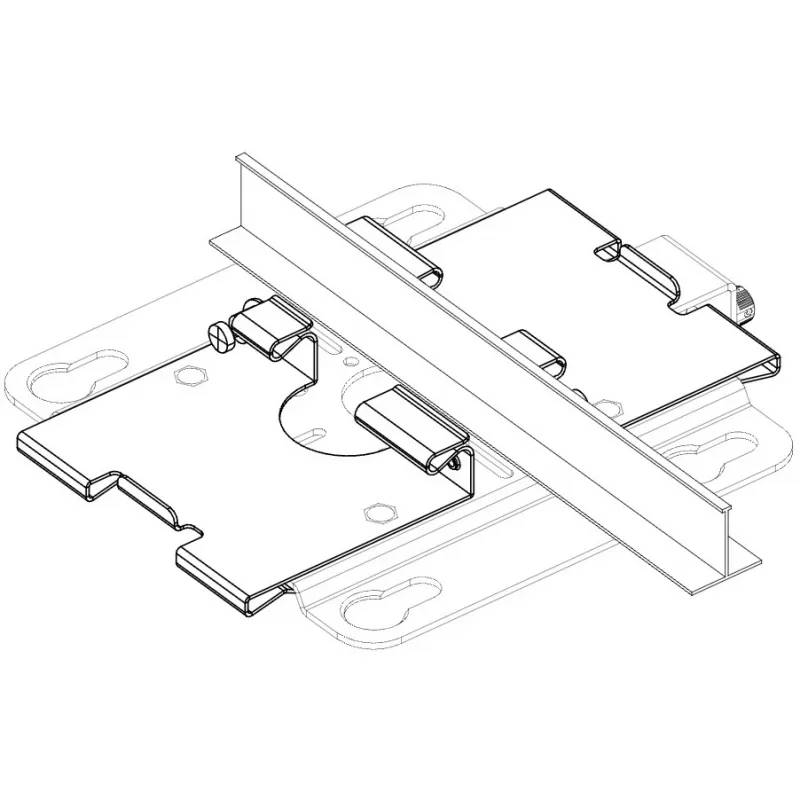

Position the T-bar mount on the support rails of the suspended ceiling at the chosen location, align the mount so that the access point can be attached with its mounting points, and secure the mount using the pre-assembled locking screws. Follow the included installation instructions for the correct orientation and tightening sequence to ensure stable fixation. Once the mount is fixed to the rail, attach the LANCOM LX-7000 series access point and complete any required cabling or network configuration according to the access point documentation.

Recommendations

Install mounts at planned access point locations based on a radio coverage plan and avoid placing units near large metallic objects or deep recesses that could block signal. Use the pack of five to standardize mounting across multiple rooms and retain the installation instructions for reference during maintenance or future upgrades.
