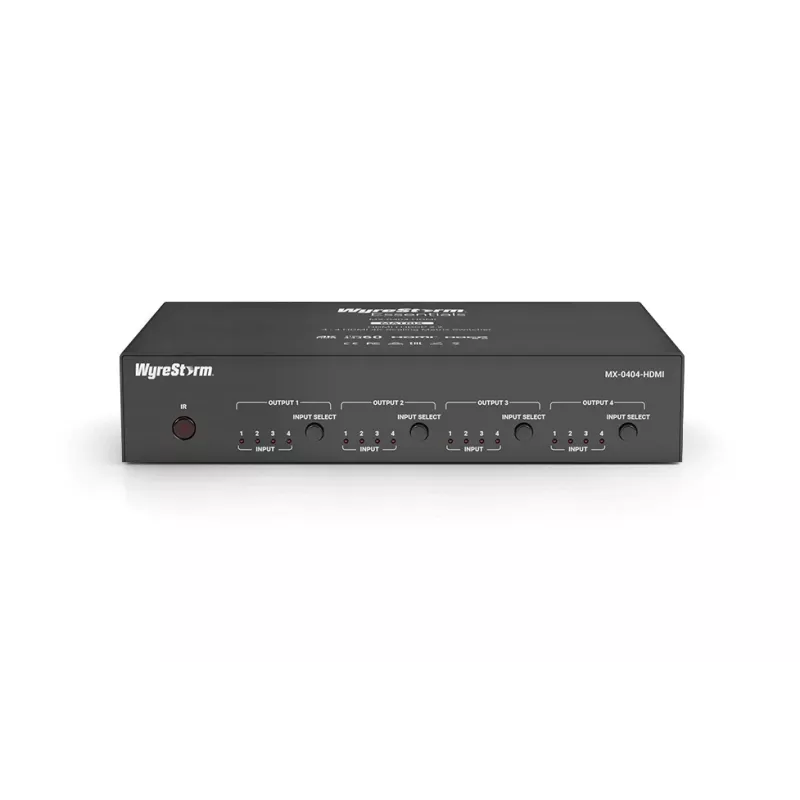

Wyrestorm 4x4 4K HDMI matrix switcher so škálovateľnými výstupmi

The Wyrestorm MX-0404-HDMI is a professional 4x4 HDMI matrix switcher with independent scaling outputs, designed for commercial AV installations. It supports 4K UHD video up to 3840x2160p @60Hz 4:4:4 8-bit and 4:2:0 10-bit HDR, with HDCP 2.2 compliance. The matrix features 4 HDMI inputs and 4 HDBaseT outputs plus 4 mirrored HDMI outputs, enabling flexible distribution of 4K sources to up to four zones. Each HDBaseT output includes independent 4K to 1080p downscaling, allowing mixed-resolution displays. HDBaseT Class B technology extends 4K signals up to 35m and 1080p up to 70m over a single CAT cable, with Power over HDBaseT (PoH) for compatible receivers. Advanced EDID management ensures seamless compatibility with various displays. Control options include RS-232, IP (Telnet/Web GUI), IR, and front panel buttons. The unit is rack-mountable in 1U and includes S/PDIF optical and analog stereo audio breakout per output.

Advantages

This matrix switcher offers exceptional flexibility for multi-zone 4K distribution with independent scaling, ensuring optimal picture quality on each display. The HDBaseT technology simplifies cabling and supports long-distance transmission, while PoH eliminates the need for separate power at receivers. Advanced EDID management and HDR support guarantee compatibility with the latest sources and displays. The comprehensive control options make it suitable for both simple and complex AV systems.

Suitable for

• Commercial AV installations such as conference rooms, boardrooms, and training facilities
• Digital signage and retail environments requiring multi-zone 4K distribution
• Home theater systems with multiple display zones
• Education and hospitality venues needing reliable AV switching

Key specifications

• Matrix Size: 4x4
• Input Ports: 4x HDMI
• Output Ports: 4x HDBaseT, 4x Mirrored HDMI
• Max Video Resolution: 4K UHD (3840x2160p @60Hz 4:4:4 8-bit / 4:2:0 10-bit HDR)
• HDCP Compliance: HDCP 2.2
• HDBaseT Version: Class B (Lite)
• HDBaseT Distance (4K): Up to 35m (115ft)
• HDBaseT Distance (1080p): Up to 70m (230ft)
• Output Scaling: Independent 4K to 1080p downscaling on each HDBaseT output
• Audio Support: 2ch PCM, Multichannel (Dolby Digital, DTS-HD Master Audio)
• Control Methods: RS-232, IP (Telnet/Web GUI), IR, Front Panel Buttons
• Power over HDBaseT (PoH): Yes
• EDID Management: Advanced
• HDR Support: HDR10, HLG
• Rack Mountable: Yes (1U)
• HDMI Bandwidth: 18Gbps
• Audio Breakout: S/PDIF (Optical) and Analog Stereo (3.5mm) per output

Recommendations

For optimal performance, use shielded CAT6/6a cables for HDBaseT connections. Ensure all sources and displays are HDCP 2.2 compliant for 4K HDR content. The matrix can be controlled via the intuitive Web GUI or integrated into a control system using RS-232 or IP commands.
