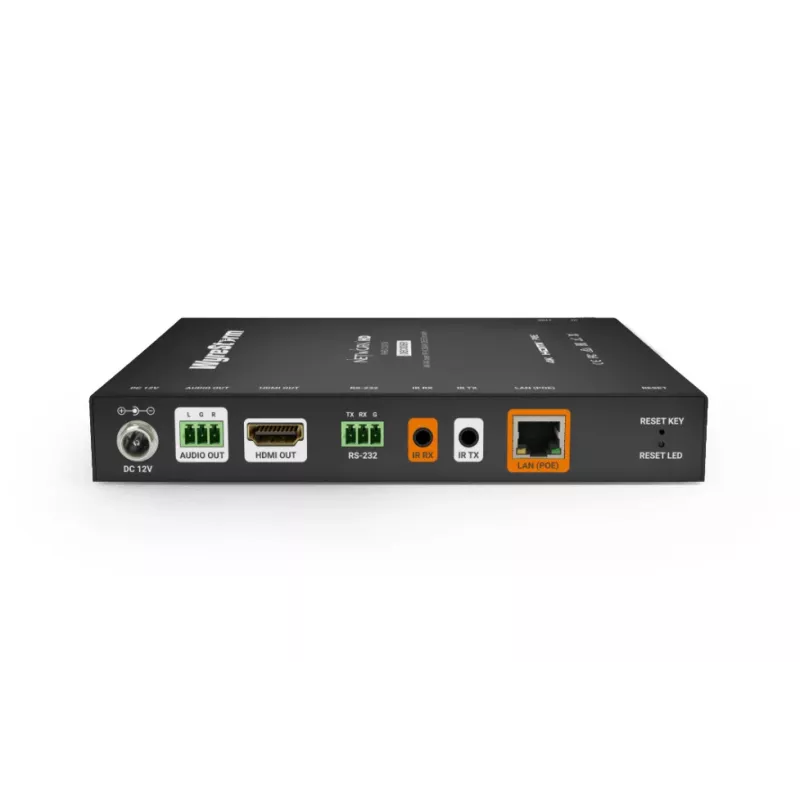

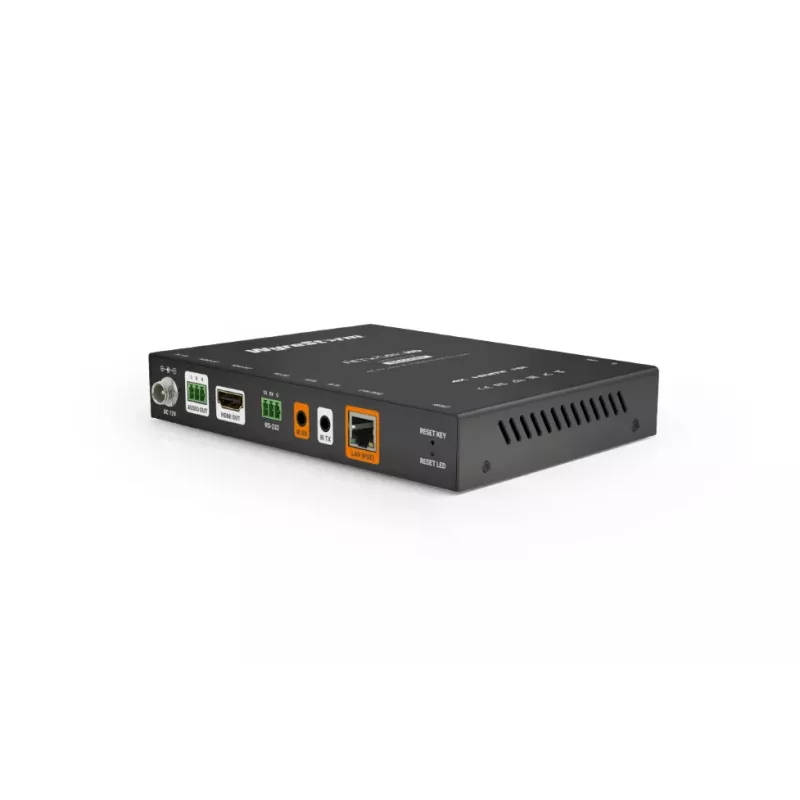

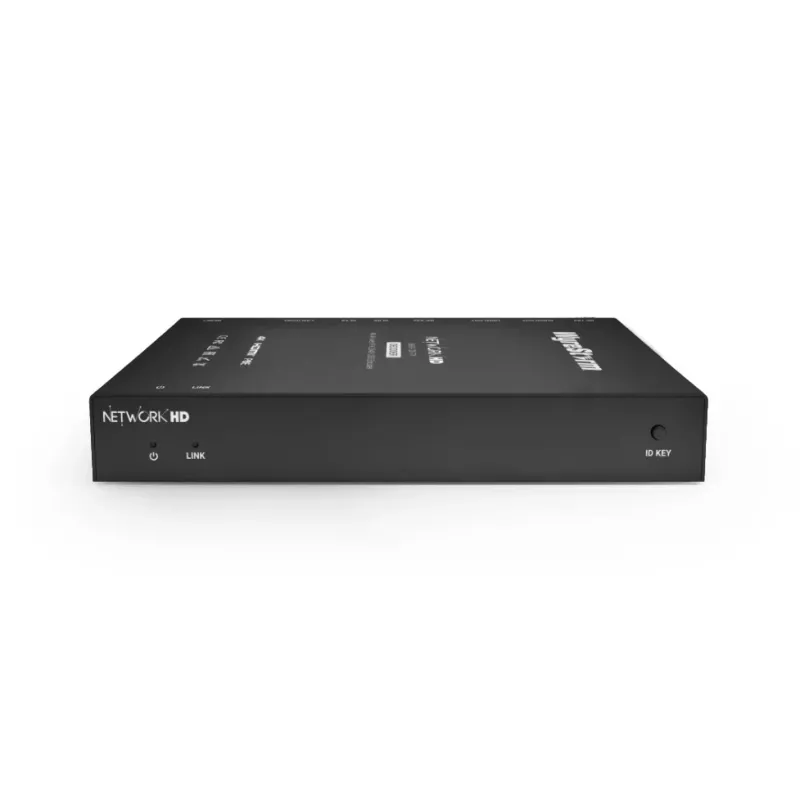

Wyrestorm NHD-120-RX AV over IP prijímač - 4K UHD HDMI 2.0, H.264/H.265, 1x RJ-45

The Wyrestorm NHD-120-RX is a high-performance AV over IP receiver designed for professional video distribution over standard Gigabit Ethernet networks. Supporting resolutions up to 4K UHD (3840x2160) at 30Hz 4:4:4 or 60Hz 4:2:0, this receiver delivers pristine video quality with low latency (<1 frame). It features H.264 and H.265 (HEVC) video compression, ensuring efficient bandwidth usage. The NHD-120-RX includes one HDMI 2.0 output, one RJ-45 Gigabit Ethernet port, RS-232 control, and a USB-A port for KVM extension. Ideal for video wall applications, multicast streaming, and KVM extension, this receiver is powered by an external 12V DC supply and includes surface mount brackets.

Advantages

Experience ultra-low latency video distribution with support for 4K UHD resolution and advanced H.265 compression. The NHD-120-RX offers flexible control via RS-232 and USB KVM, making it suitable for commercial and residential AV installations. Its compact design and included mounting brackets simplify integration.

Suitable for

• Video wall installations
• KVM extension over IP
• Multicast streaming in corporate or education environments
• Digital signage and hospitality AV distribution

Key specifications

• Product Type: AV over IP Receiver
• Max Video Resolution: 3840 x 2160 @30Hz 4:4:4 / @60Hz 4:2:0
• Video Compression: H.264, H.265 (HEVC)
• Audio Compression: AAC, LPCM, Dolby Digital, DTS
• HDMI Output: 1x HDMI 2.0
• Network: 1x RJ-45 Gigabit Ethernet
• Control: 1x RS-232 (3-pin Phoenix), 1x USB-A (KVM/HID)
• HDCP Support: HDCP 2.2
• Latency: <1 frame typical
• Power Supply: 12V DC, 1A (external)
• Power Consumption: 6W typical
• Chroma Subsampling: 4:4:4, 4:2:0
• Color Depth: 8-bit
• Mounting: Surface mount (brackets included)

Recommendations

For optimal performance, use with a managed Gigabit Ethernet switch supporting IGMP snooping. Pair with Wyrestorm NHD-120-TX transmitter for a complete AV over IP solution.
