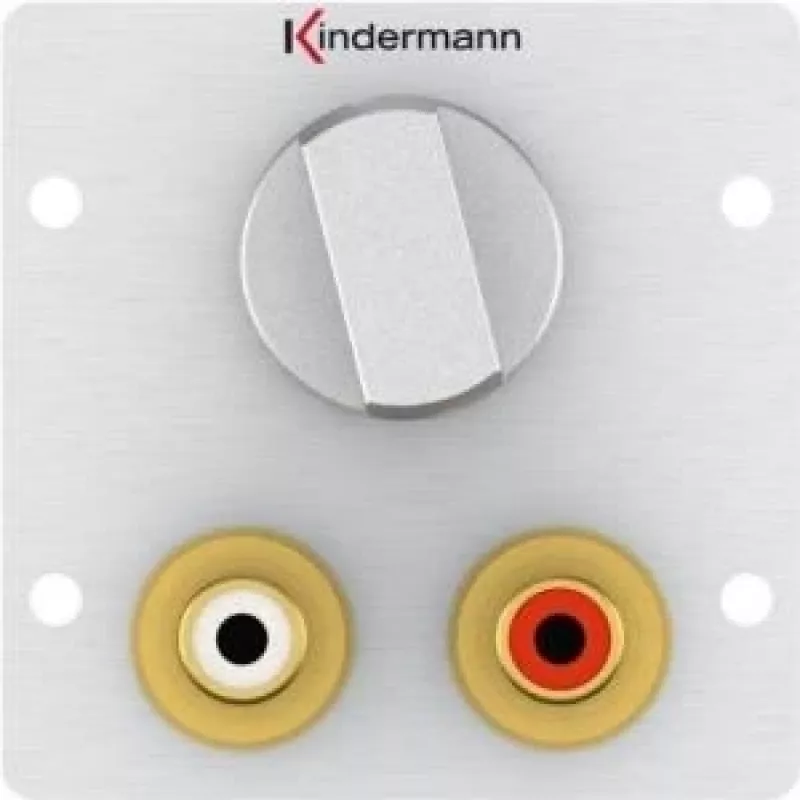

Zásuvka 2 x RCA Kindermann 7444000518

Adapter plate with integrated volume control (potentiometer) and 2 x RCA (Cinch L/R) socket connections on a full-size anodized aluminium plate. The Kindermann 7444000518 accepts one module and is intended for fixed installation where a compact, durable connection point for audio signals is required.

Advantages

The aluminium full-size plate provides mechanical stability and a professional finish while the built-in potentiometer enables local volume adjustment. Two RCA sockets allow stereo analogue connections. The compact dimensions (50 mm width, minimum installation depth 35 mm) support easy integration into furniture or wall panels.

Suitable for

Key specifications

How to use

Install the plate into a compatible mounting box or cutout so that the minimum depth of 35 mm is available behind the plate. Connect the RCA cable conductors to the corresponding rear terminals and secure the potentiometer wiring according to the device wiring diagram. After installation, adjust the potentiometer to set the desired output level for connected stereo equipment.

Recommendations

Use with properly shielded RCA cables to minimize interference. Ensure the mounting box provides at least 35 mm clearance behind the plate and follow local electrical and installation regulations when integrating into walls or furniture.
