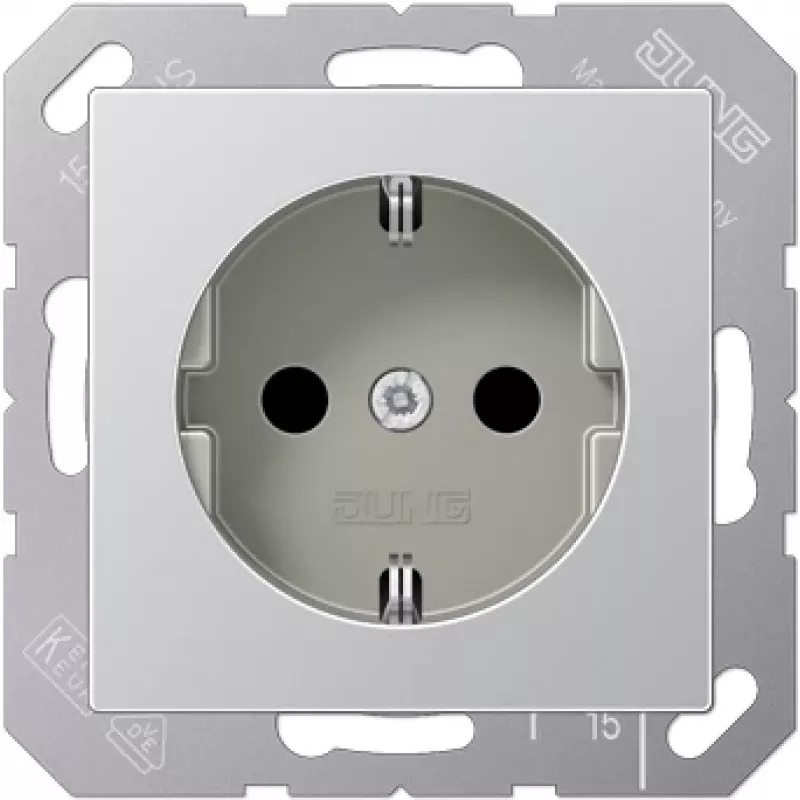

Zásuvka do steny JUNG A 1520 AL hliníková pre zásuvky typu F — model A1520AL

JUNG A 1520 AL is an aluminium outlet box designed for installation of Type F (Schuko) sockets. The A1520AL model provides a robust in-wall enclosure that secures the socket mechanism and protects connected wiring. It is intended for residential and light commercial electrical installations where a durable metal mounting box is required.

Advantages

The aluminium construction offers corrosion resistance and mechanical strength while remaining lightweight. Screwless terminals accommodate conductors up to 2.5 mm², simplifying wire connection and reducing installation time. The design integrates the supporting frame, claws and claw screws into the earth protection to maintain grounding continuity. The box is supplied without claws in certain variants, allowing flexibility for different mounting methods.

Suitable for

Key specifications

How to use

Install the outlet box flush into the wall cavity at the required mounting depth and secure according to local electrical regulations. Route supply conductors into the box, then connect live, neutral and earth conductors using the screwless terminals, observing correct polarity and secure earthing. Fit the socket mechanism to the box and complete the faceplate installation. Ensure all connections are checked and the installation is tested for continuity and insulation before re-energising.

Recommendations

Use this aluminium outlet box in accordance with applicable national wiring rules and safety standards. Select the variant with or without claws to match the wall material and mounting method. Verify conductor cross-section does not exceed 2.5 mm² for compatibility with the screwless terminals, and ensure reliable earthing when integrating with metal mounting components.
