Zásuvka typ F JUNG A 1520 BF slonovina

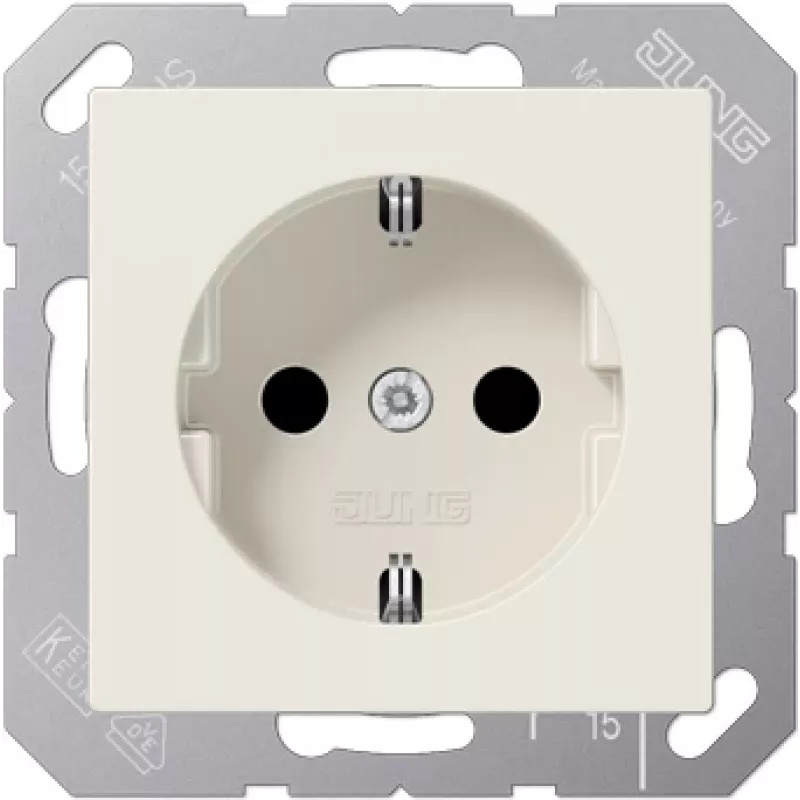

The JUNG A 1520 BF Ivory socket outlet is a Type F electrical outlet designed for standard 16 A, 250 V installations. It has an ivory thermoplastic finish and compact dimensions of 55 × 55 mm, providing a reliable connection point for household and light commercial electrical devices. The product includes integrated earth protection with supporting frame, claws and claw screws.

Advantages

Screwless terminals accept wires up to 2.5 mm², simplifying wiring without additional screws. A version without claws is available (refer to product code with an added "N", e.g. ..1520 N..), while a variant with screw terminals uses the reference ..1521.. . The integrated earth protection with supporting frame, claws and claw screws reduces the need for separate earthing parts and eases installation.

Suitable for

Key specifications

How to use

Install the socket outlet into a compatible 55 × 55 mm flush-mounted box following local electrical codes. For the screwless terminal version, insert stripped conductor ends (up to 2.5 mm²) into the terminal openings until they seat securely. For the clawless or screw-terminal variants, select the appropriate reference and connect according to the product’s wiring scheme. Ensure the integrated earth is connected to the building earth conductor.

Recommendations

Only qualified personnel should perform installation and electrical connections. Disconnect power before wiring, verify correct earthing, and follow local regulations and safety standards.
