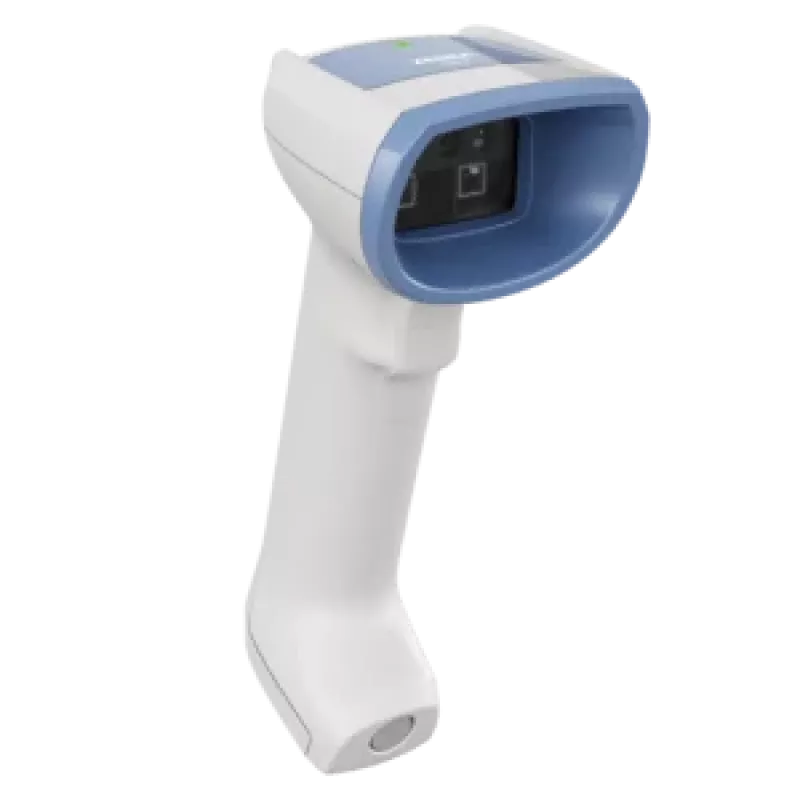

Zebra DS82 séria – USB kit – skener čiarových kódov (DS8288-HCBU210MPAW)

Engineered around a high-resolution 1280 x 960 pixel imager, the Zebra DS8288-HCBU210MPAW delivers razor-sharp 1D and 2D barcode capture in a rugged, handheld form factor. This USB kit includes everything needed for immediate deployment in retail, warehouse, or field service environments.

Overview

The DS8288-HCBU210MPAW is part of Zebra's DS82 Series, a family of corded scanners built for performance and durability. It reads all common 1D symbologies (Code 39, Code 128, EAN/UPC) and 2D codes (PDF417, Data Matrix, QR Code, Aztec) with ease. The scanner connects via USB and draws power directly from the host, eliminating the need for an external power supply. Its compact design and intuitive aiming pattern make it comfortable for all-day use.

What stands out

• High-resolution 1280 x 960 imager captures even damaged or poorly printed barcodes.
• Wide field of view (48° horizontal, 37° vertical) speeds up scanning of large or multiple codes.
• Rugged construction withstands multiple 1.8 m (6 ft.) drops to concrete and is sealed to IP42 against dust and moisture.
• Circular 617 nm red LED aiming pattern and 660 nm illumination ensure accurate targeting in any lighting.
• Supports multiple host interfaces via cable: USB, RS-232, Keyboard Wedge, and TGCS (IBM) 46XX over RS485.

Technical details

• Scanner type: 2D imager (handheld)
• Connectivity: Wired USB (host powered)
• Decode capability: 1D and 2D barcodes
• Imager sensor: 1280 x 960 pixels
• Field of view: Horizontal 48°, Vertical 37°
• Minimum print contrast: 16%
• Scan angles: Pitch ±60°, Skew ±60°, Roll 360°
• Drop specification: Multiple 1.8 m (6 ft.) drops to concrete
• Sealing: IP42
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Colour: Black
• Included accessories: USB cable

Our verdict

The Zebra DS8288-HCBU210MPAW combines premium imaging performance with proven durability, making it an excellent choice for businesses that demand fast, accurate scanning in demanding conditions.
