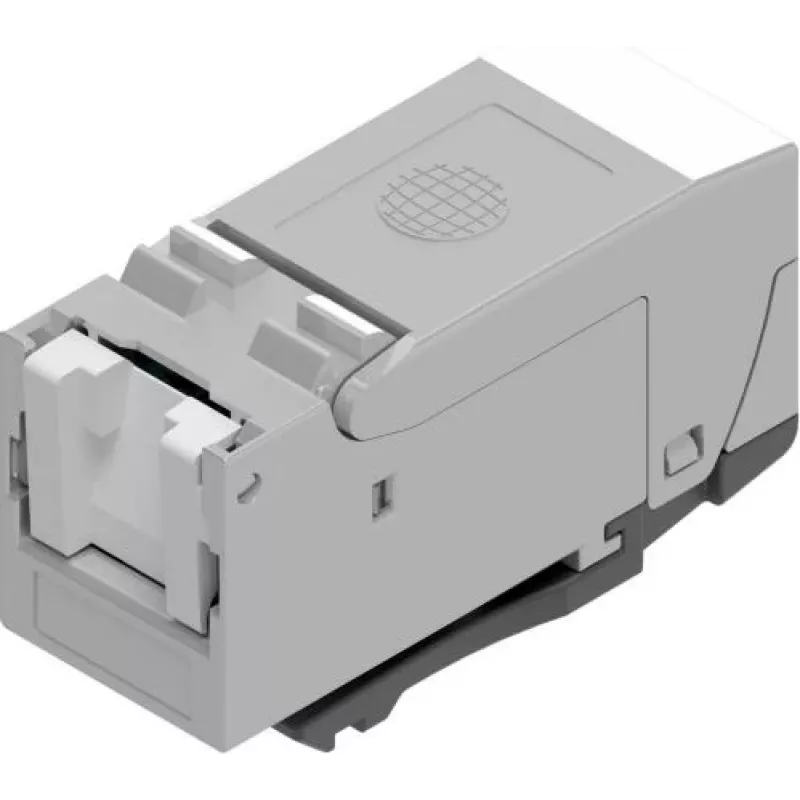

ZVK EasyLan fixLink Pro+ RJ45 Keystone Shielded Cat.8.1 - balenie 24 ks (CKFAK002P+)

The ZVK EasyLan fixLink Pro+ RJ45 Keystone Jack is a high-performance, shielded keystone connector designed for Category 8.1 cabling systems. This tool-less keystone jack supports data transfer rates up to 40 Gigabit Ethernet (40GBASE-T) and operates at frequencies up to 2000 MHz, making it ideal for demanding data center and enterprise network environments. The pack contains 24 units, each featuring a robust zinc die-cast housing and gold-plated contacts for reliable, corrosion-free connections. Compatible with T568A and T568B wiring standards, it accepts 22-24 AWG solid or stranded conductors. The shielded design (STP/FTP) ensures excellent electromagnetic interference (EMI) protection. Additionally, it supports Power over Ethernet (PoE/PoE+/PoE++) for powering devices like IP cameras and wireless access points.

Advantages

Tool-less termination saves installation time and reduces labor costs. The shielded construction minimizes crosstalk and EMI, ensuring signal integrity at high frequencies. Gold-plated contacts provide long-lasting performance and resistance to corrosion. The keystone form factor allows flexible mounting in standard keystone ports, patch panels, and faceplates.

Suitable for

• Data centers requiring high-speed 40GBASE-T connectivity
• Enterprise networks with Cat.8.1 structured cabling
• High-frequency applications up to 2000 MHz
• PoE++ deployments for high-power devices

Key specifications

• Product Type: RJ45 Keystone Jack
• Cabling Category: Cat.8.1 (Category 8.1)
• Shielding Type: Shielded (STP/FTP)
• Connector Type: RJ45 (8P8C)
• Termination Type: IDC (Insulation Displacement Connector) - Tool-less
• Wiring Standard: T568A/B (Dual compatible)
• Data Transfer Rate: Up to 40 Gigabit Ethernet (40GBASE-T)
• Frequency Range: Up to 2000 MHz
• Conductor Compatibility: 22-24 AWG Solid/Stranded
• Housing Material: Zinc Die-cast
• Contact Material: Phosphor Bronze
• Contact Plating: Gold-plated (50µm)
• PoE Support: IEEE 802.3af/at/bt (PoE/PoE+/PoE++)
• Insertion Cycles: >750
• Operating Temperature: -10°C to +60°C
• Standards Compliance: ISO/IEC 11801-1, EN 50173-1, ANSI/TIA-568.2-D
• Mounting Compatibility: Standard Keystone Port
• Color: Silver/Metallic
• Pack Quantity: 24 units

Recommendations

For optimal performance, use with Cat.8.1 or higher rated patch cables and ensure proper grounding of the shielded system. This keystone jack is ideal for new installations or upgrades to 40GBASE-T networks.
