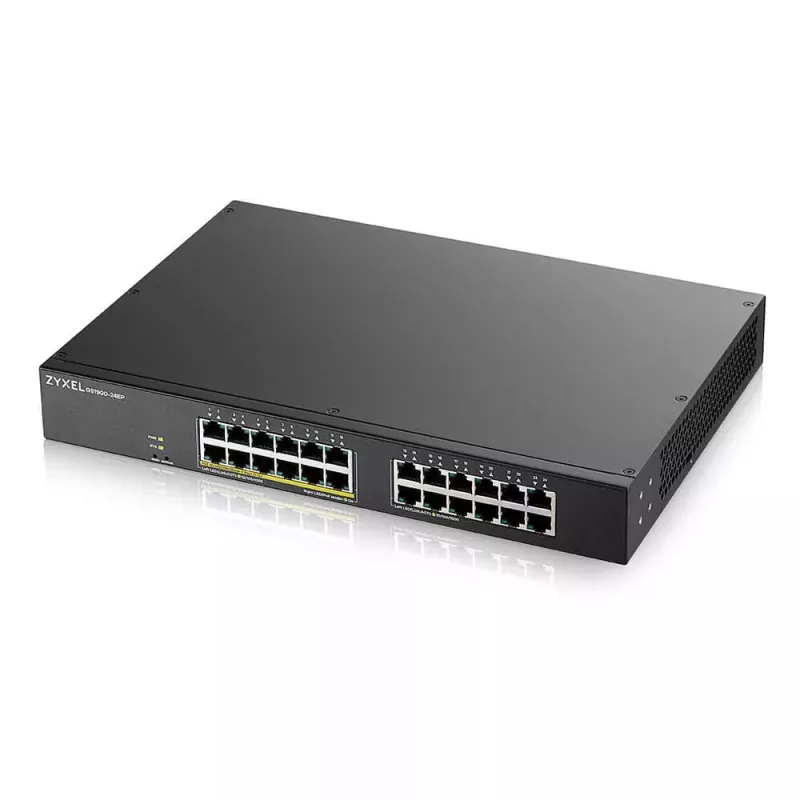

Zyxel GS1900-24EP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) čierna

The Zyxel GS1900-24EP is a managed L2 Gigabit Ethernet switch with 24 PoE ports and a switching capacity of 48 Gbit/s. Designed for small and medium businesses, it supports IEEE 802.3at PoE+ to power devices such as IP cameras, access points and VoIP phones while providing full-duplex Gigabit performance and a MAC address table of 8000 entries for efficient traffic handling.

Advantages

The GS1900-24EP offers near-silent operation with a fan-less design or a smart temperature-controlled fan that adjusts speed as needed. Its intelligent PoE+ management delivers only the actual power required by connected devices, optimizing the overall PoE budget so a single switch can power more APs, IP cameras and phones. The switch provides full non-blocking Gigabit bandwidth per port and a web-based management interface for VLAN, QoS, IGMP Snooping, Link Aggregation, IPv6 and DoS prevention.

Suitable for

• Small and medium business wired networks
• Powering IP cameras and wireless access points with PoE+
• VoIP phone deployments
• Edge or access-layer switching in office environments

Key specifications

• Model: Zyxel GS1900-24EP (MPN: GS1900-24EP-EU0101F, EAN: 4718937609468)
• Switch type: Managed L2
• Ports: 24 × Gigabit Ethernet (10/100/1000) with PoE
• Switching capacity: 48 Gbit/s
• PoE standard: IEEE 802.3at (PoE+), up to 30 W per port
• MAC address table: 8000 entries
• Networking standards: IEEE 802.1s, 802.3x, 802.3u, 802.3p, 802.3az, 802.3at, 802.1w, 802.1af, 802.1ab, 802.1D
• Weight: 2.48 kg
• Color: Black

How to use

Install the GS1900-24EP in a rack or on a flat surface and connect power. Use standard Ethernet cables to connect servers, workstations, IP cameras, APs and VoIP phones to the 24 Gigabit ports. Configure PoE settings and other network features via the web-based management interface or the setup wizard to create VLANs, configure QoS, enable IGMP Snooping and set up Link Aggregation as required.

Recommendations

For optimal performance, place the switch in a well-ventilated area and ensure firmware is kept up to date. When deploying multiple PoE devices, monitor the PoE budget in the web interface and prioritize power delivery where needed.
