EXSYS EX-6205 8-portový priemyselný Ethernet switch, 10/100 Mbps, DIN lišta, -40 až 75°C

The EXSYS EX-6205 is an 8-port industrial Ethernet switch engineered for reliable connectivity in harsh environments. With eight 10/100Base-TX RJ45 ports, it delivers stable data transfer for automation, surveillance, and control systems, even in temperatures from -40°C to 75°C.

Advantages

Its rugged IP30 metal housing and redundant 12-48V DC power input ensure uninterrupted operation in demanding industrial settings. Auto MDI/MDI-X and auto-negotiation simplify installation, while store-and-forward switching with 1.6 Gbps capacity maintains smooth traffic flow.

Suitable for

• Factory automation and machine control networks
• IP surveillance and access control systems
• Outdoor or unheated installations like traffic management
• DIN-rail or wall-mount deployments in control cabinets

Key specifications

• 8 x 10/100Base-TX RJ45 ports, IEEE 802.3/802.3u/802.3x
• Switching capacity: 1.6 Gbps, 2K MAC address table, 1 Mbit buffer

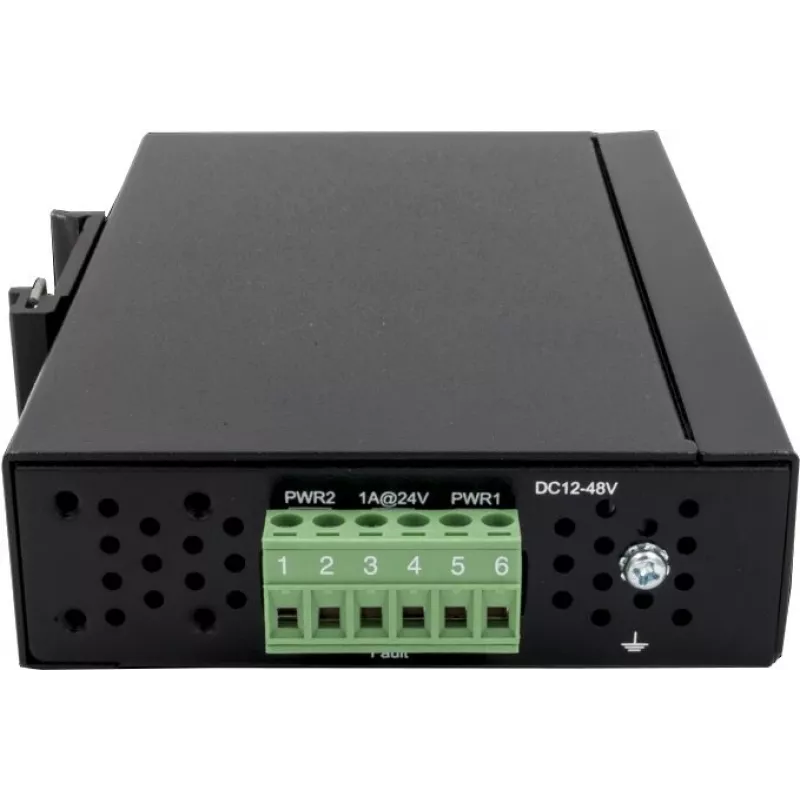

• Redundant 12-48V DC terminal block input, max 3.5 W consumption
• Operating temperature: -40°C to 75°C, IP30 metal housing
• DIN-rail and wall-mount support, LED indicators for power and link/activity

Recommendations

For integrators seeking a compact, hardened switch that withstands extreme conditions without compromising performance, the EX-6205 is a proven choice.
