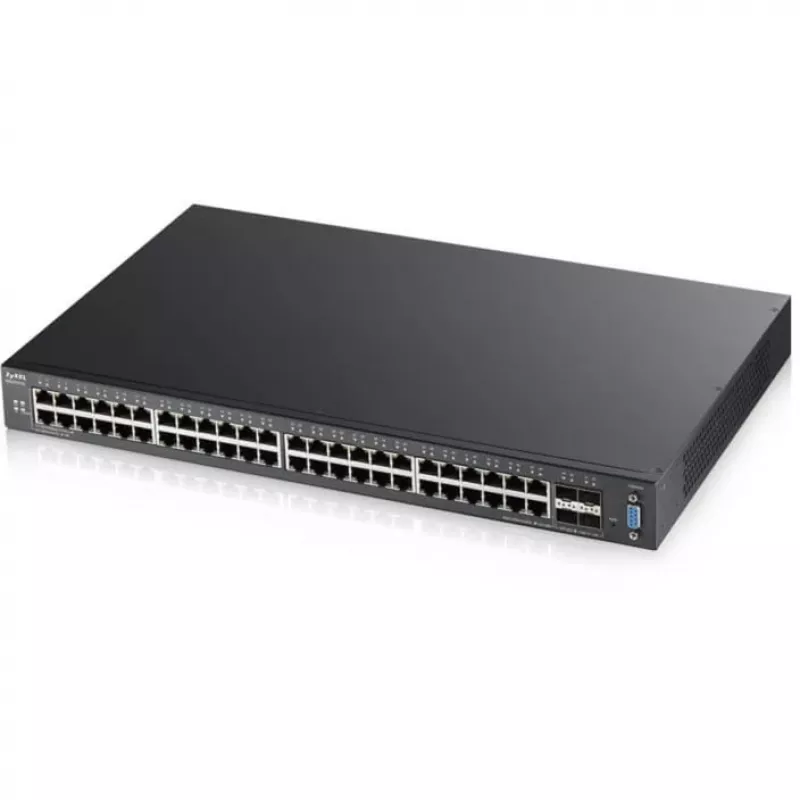

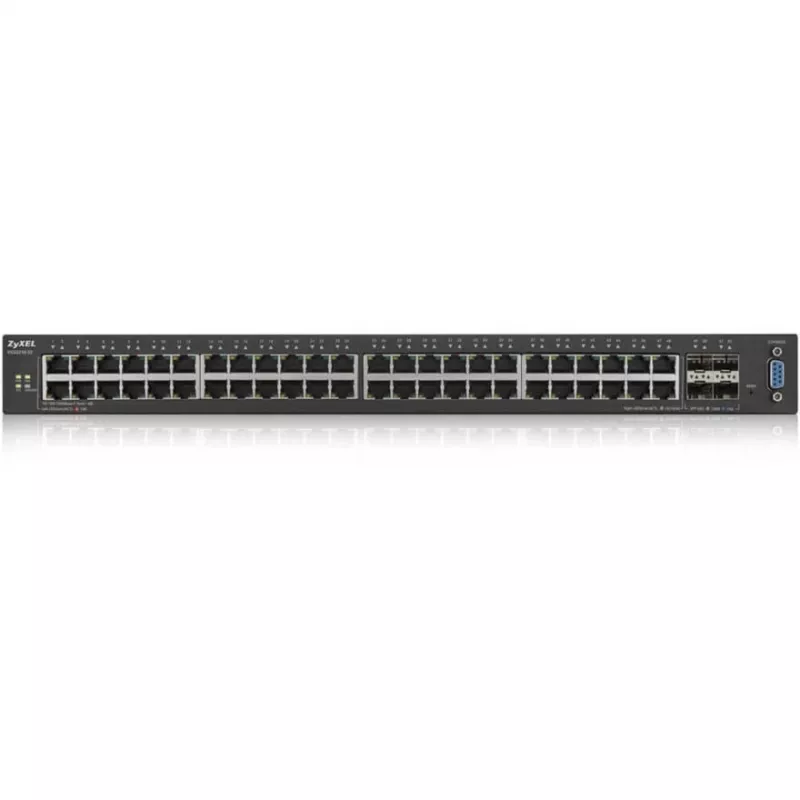

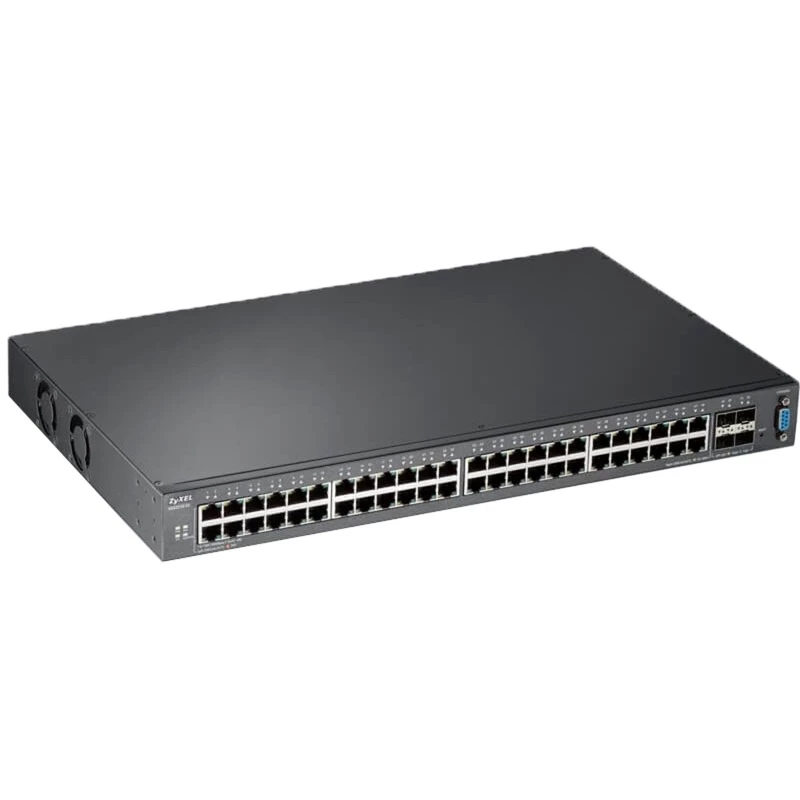

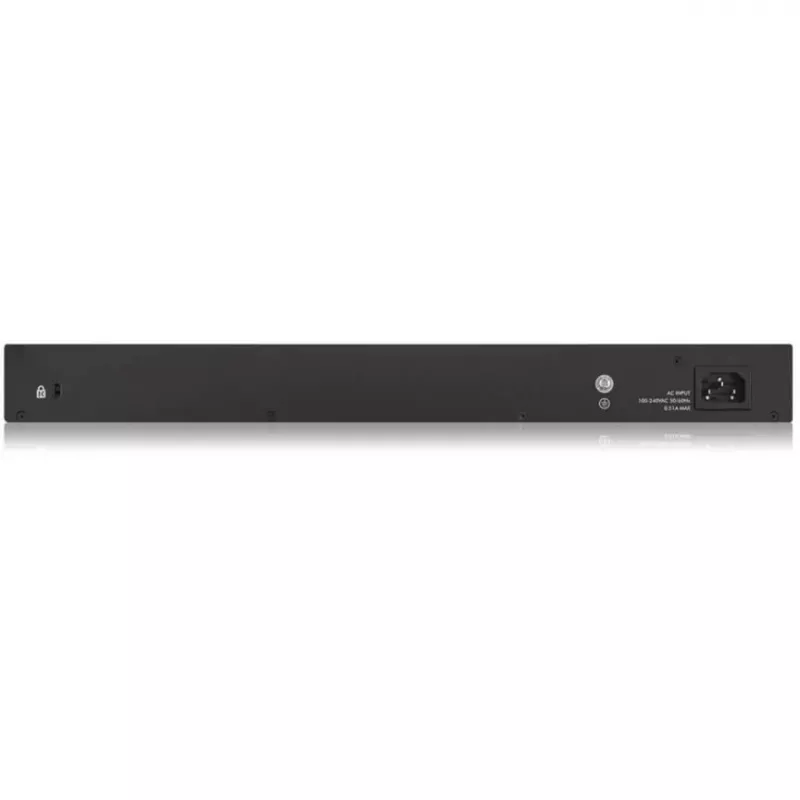

Zyxel XGS2210-52 Managed L2 Gigabit Ethernet (10/100/1000) 1U čierna

The Zyxel XGS2210-52 is a managed L2 Gigabit Ethernet switch with 48 Gigabit RJ-45 ports, a switching capacity of 176 Gbit/s and a MAC address table of 16,000 entries. Designed for converged networking applications, it supports a broad set of Layer 2 standards and Power over Ethernet (PoE) to deliver traffic shaping, device power and reliable connectivity for VoIP, video, IPTV and IP surveillance deployments in hotels, businesses and educational institutions.

Advantages

The XGS2210-52 provides a comprehensive Layer 2 feature set including IEEE 802.1Q VLANs, 802.1p QoS and 802.1x security for effective traffic management and access control. Integrated IEEE 802.3af/802.3at PoE and PoE+ deliver up to 30 W per port to power wireless APs, IP phones and cameras. With 10G uplink support, a 176 Gbit/s switching capacity and standard 1U rack-mount form factor, the switch balances performance, manageability and installation convenience.

Suitable for

• Small and medium business networks requiring centralized L2 management
• PoE deployments powering APs, IP phones and surveillance cameras
• Converged services such as VoIP, video conferencing and IPTV
• Server-rack installations in hotels, schools and branch offices

Key specifications

• Ports: 48 × Gigabit Ethernet (10/100/1000) RJ-45
• Switching capacity: 176 Gbit/s
• MAC address table: 16,000 entries
• PoE support: IEEE 802.3af and 802.3at (up to 30 W per port)
• 10G uplink support
• Standards: IEEE 802.1D/W/Q/S/P, 802.1x, 802.3/3u/3ab/3z/3ad/3az/3x/3af/3at
• Form factor: 1U rack-mountable
• Weight: 3.86 kg
• Color: Black

How to use

Install the XGS2210-52 in a standard 19" rack using the included mounting brackets and connect the uplink ports to your core switch or router. Use the web-based management interface, CLI or supported management utilities to configure VLANs, QoS, PoE settings and access control (802.1x). Connect end devices such as wireless APs, IP phones and cameras to the Gigabit ports; the switch will negotiate link speed and, when required, supply PoE power to compliant devices.

Recommendations

For stable PoE deployments, calculate the total power budget of all attached Powered Devices and ensure the switch’s available PoE budget meets peak demand. Keep firmware updated and use VLANs and QoS to prioritise real-time traffic like VoIP and video.
