EnGenius upravovaný AP interiérový dual band 11ax 574+2400Mbps 2T2R GbE PoE.af 4x3dBi ia

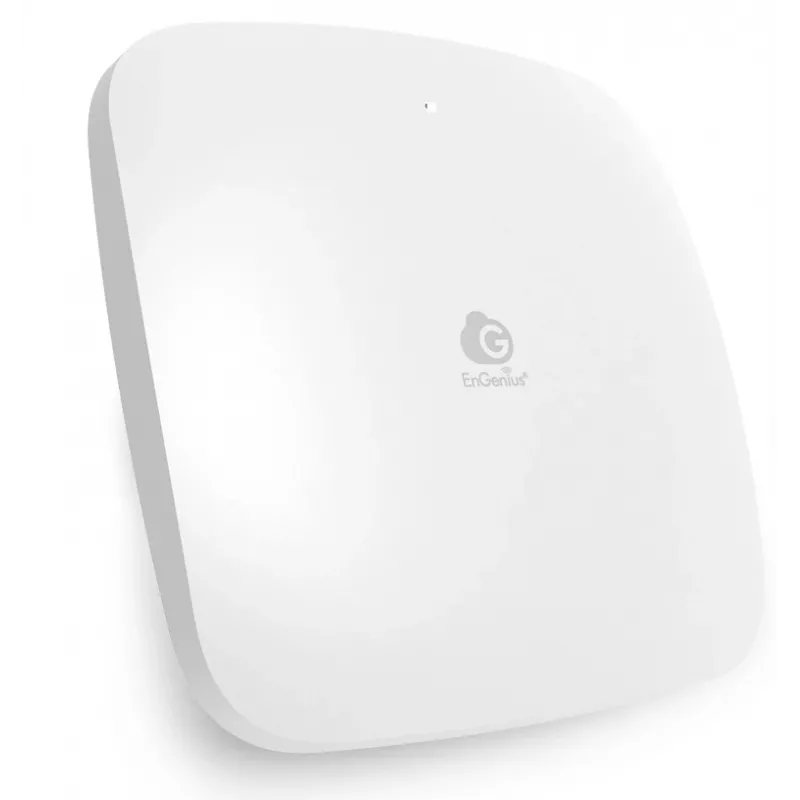

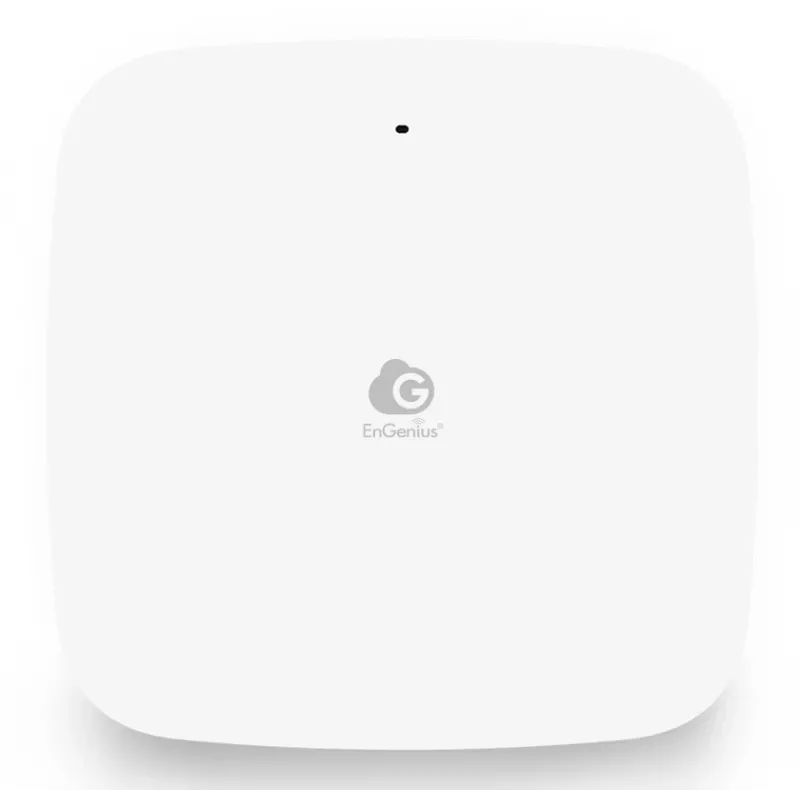

EnGenius Cloud Managed Wi‑Fi 6 2x2 Access Point ECW210L is a compact indoor dual‑band 802.11ax access point designed for small businesses that need managed, high‑performance wireless connectivity. It delivers up to 574 Mbps on the 2.4 GHz band and up to 2400 Mbps on the 5 GHz band, supports Cloud management via the EnGenius Cloud platform, and includes WPA3/WPA2 security and Power over Ethernet for flexible installation.

Advantages

The ECW210L combines Wi‑Fi 6 efficiency with backward compatibility for older devices, offering higher throughput and better handling of multiple clients. Integrated WPA3 and WPA2‑AES provide modern authentication and encryption. A 2x2 internal antenna design and support for 5 GHz DFS channels extend reliable coverage, while a single Gigabit Ethernet PoE port simplifies deployment without additional power cabling. Free cloud and local management through EnGenius Cloud allow centralized configuration and monitoring.

Suitable for

• Small offices and retail stores requiring managed indoor Wi‑Fi
• Cafés and common areas with moderate user density
• Branch locations needing centralized cloud management
• Environments where PoE installation is preferred

Key specifications

• Wireless standard: IEEE 802.11ax (Wi‑Fi 6) with compatibility for 802.11a/b/g/n/ac
• Data rates: 2.4 GHz — up to 574 Mbps; 5 GHz — up to 2400 Mbps; maximum data rate 2400 Mbps
• Radio streams / MIMO: 2x2
• Antennas: 4 internal integrated antennas (2x2 system, 5 dBi)
• Security: WPA2‑PSK, WPA3‑PSK

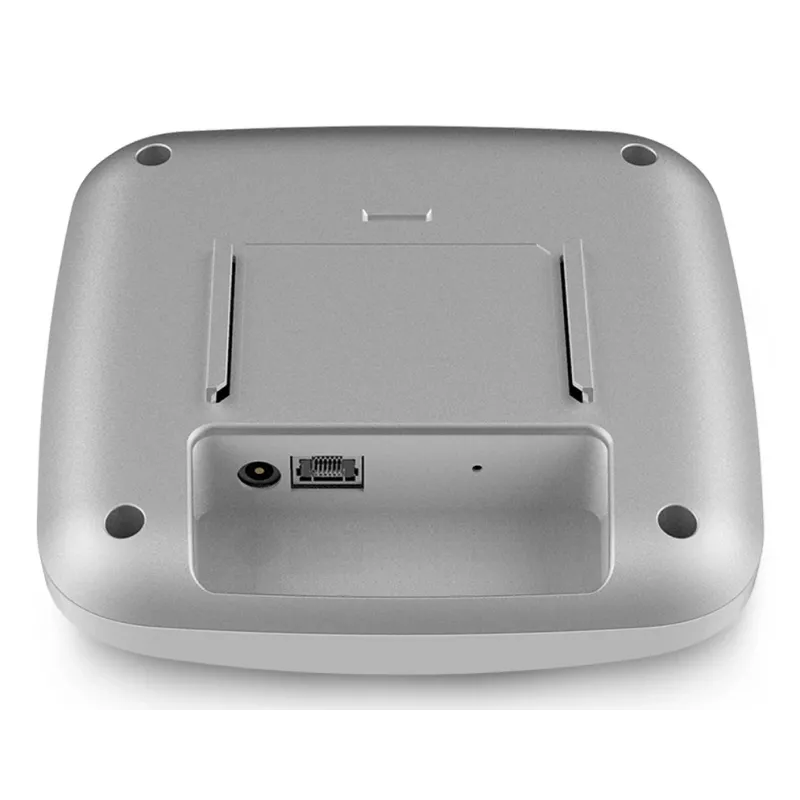

• Ports and power: 1 × Gigabit Ethernet (RJ‑45) with Power over Ethernet (PoE)
• Management: EnGenius Cloud local and remote management
• Color and form factor: indoor, white

How to use

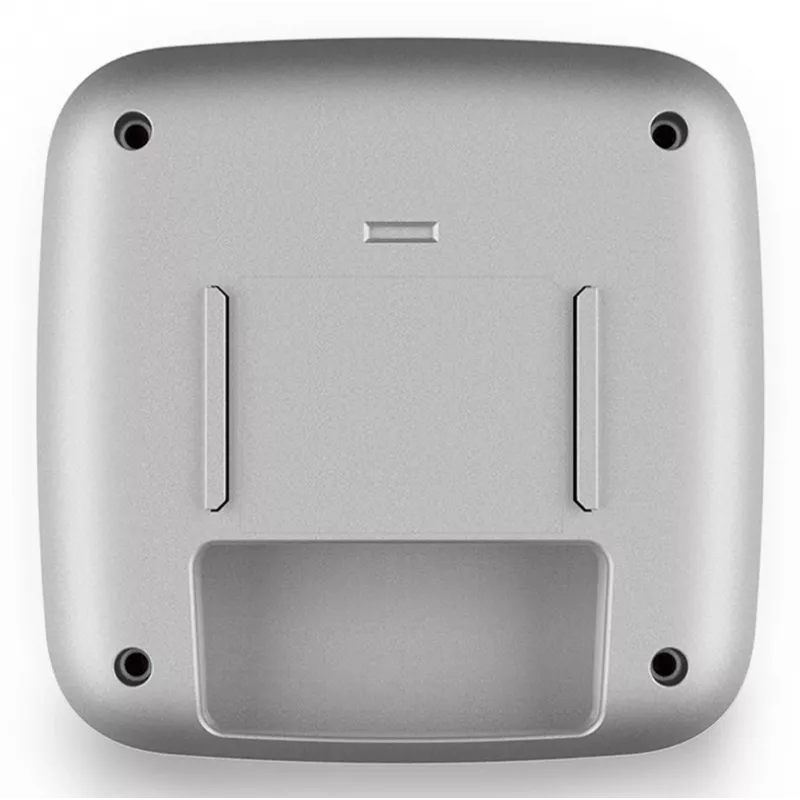

Mount the ECW210L in an indoor location with good line‑of‑sight to client devices and connect a Cat5e/Cat6 cable from your PoE switch or PoE injector to the Gigabit Ethernet port to provide both network and power. Adopt the device into your EnGenius Cloud account for remote configuration, firmware updates, and monitoring. Configure SSIDs, security (WPA3 or WPA2), and radio settings in the cloud portal or locally as required for your network.

Recommendations

For best performance, place the access point centrally in the covered area, avoid physical obstructions and large metallic objects, enable DFS channels on 5 GHz where permitted to improve capacity, and use WPA3 where supported by client devices to enhance security.
