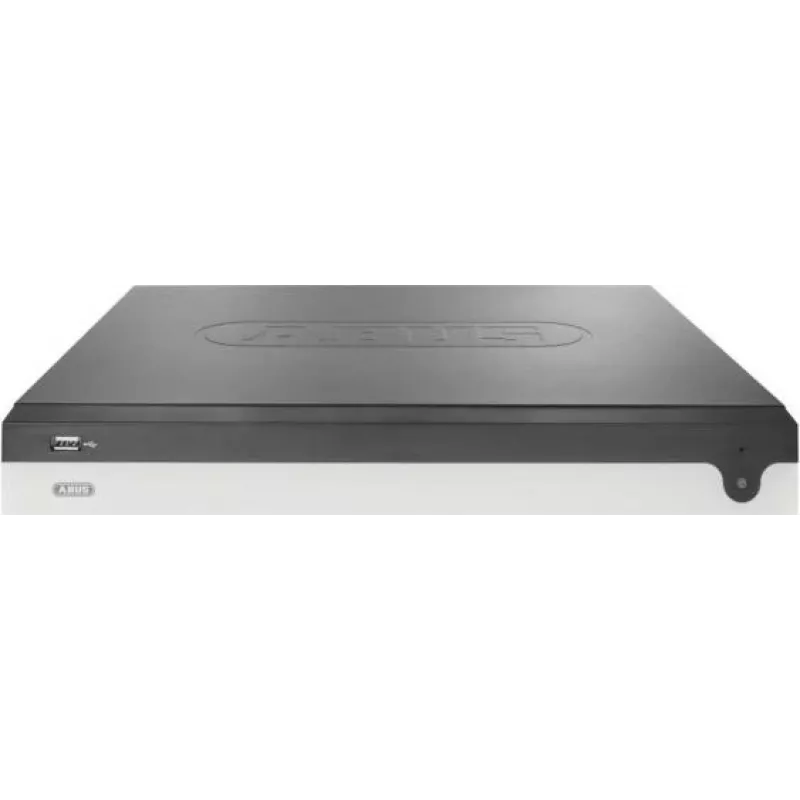

ABUS Security-Center 8-kanálový PoE sieťový videorekordér NVR10021P

The ABUS Security-Center NVR10021P is a high-performance 8-channel PoE network video recorder designed for professional surveillance systems. It supports up to 8 MP (4K) recording per channel and features 8 built-in PoE ports (IEEE 802.3af/at) with a total power budget of 120 W, simplifying installation by powering cameras directly. With H.265+ compression, it optimizes storage and bandwidth without compromising video quality.

Advantages

Efficient H.265+ compression reduces storage requirements by up to 50% compared to H.264. The integrated PoE switch eliminates the need for separate power supplies for cameras, reducing cable clutter and installation costs. Remote access via the ABUS Link Station app or web browser allows real-time monitoring from anywhere.

Suitable for

• Small to medium-sized businesses requiring reliable 8-channel surveillance
• Retail stores, offices, warehouses, and residential properties
• Users seeking a cost-effective PoE NVR with 4K recording capability

Key specifications

• Video Channels: 8
• PoE Ports: 8 (IEEE 802.3af/at, 120 W budget)
• Max Recording Resolution: 8 MP (4K) per channel
• Video Compression: H.265+, H.265, H.264+, H.264
• HDD Bays: 1 SATA (up to 10 TB)
• Incoming/Outgoing Bandwidth: 80 Mbps
• Video Outputs: 1x HDMI (up to 4K), 1x VGA (up to 1080p)
• Audio: 1x RCA In / 1x RCA Out
• Network: 1x RJ45 10/100/1000 Mbps Ethernet
• USB: 2x USB 2.0
• Power Supply: 48 V DC external adapter
• Operating Temperature: -10°C to 55°C

Recommendations

For optimal performance, pair with ABUS PoE IP cameras and use a high-quality SATA HDD (up to 10 TB). Configure recording schedules and motion detection via the intuitive ABUS Link Station app.
