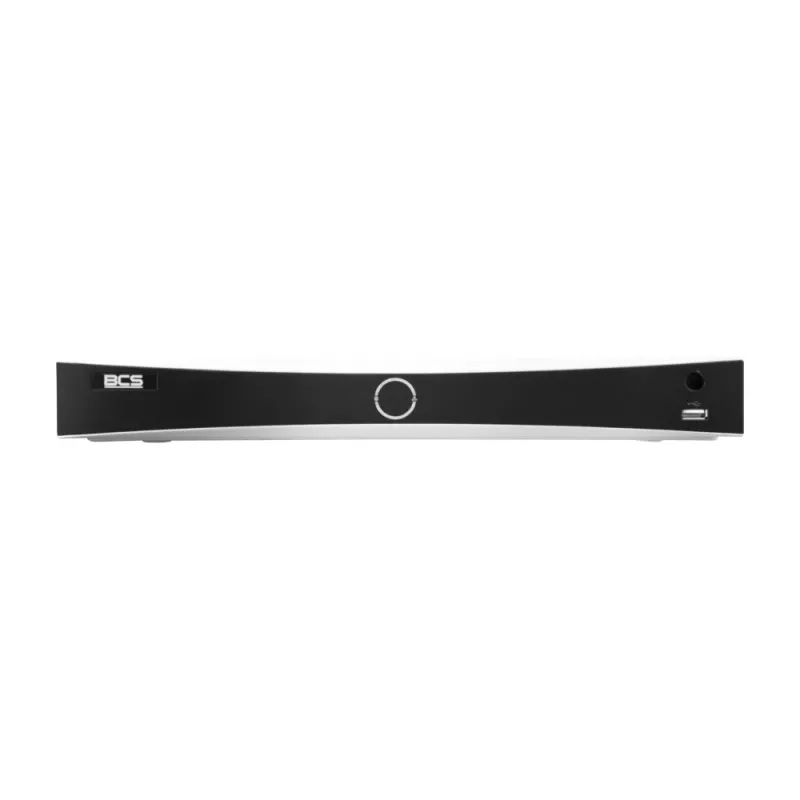

BCS 16-kanálový IP NVR, 4K UHD, H.265+, 2 SATA pozície, BCS-V-NVR1602-A-4KE(3)

The BCS-V-NVR1602-A-4KE(3) is a high-performance 16-channel IP network video recorder designed for professional surveillance systems. Supporting up to 8MP (4K UHD) resolution and H.265+ compression, it delivers exceptional video quality while reducing bandwidth and storage requirements. With dual SATA III bays supporting up to 20TB total storage, this NVR is ideal for medium to large-scale security installations.

Advantages

This NVR offers advanced video compression (H.265+/H.265/H.264+/H.264) to maximize storage efficiency without compromising image quality. Its 160 Mbps incoming and outgoing bandwidth ensures smooth recording and remote viewing for up to 16 IP cameras. The device supports mobile apps (BCS Manager, DMSS) for convenient remote access.

Suitable for

• Retail stores, warehouses, and offices requiring 16-channel surveillance
• Installations needing 4K UHD recording and long-term storage
• Users seeking a reliable NVR with dual HDD bays and alarm I/O

Key specifications

• Video Input: 16 IP channels
• Max Recording Resolution: 8MP (4K UHD)
• Incoming/Outgoing Bandwidth: 160 Mbps each
• Video Compression: H.265+/H.265/H.264+/H.264
• Video Output: 1x HDMI (up to 3840x2160), 1x VGA
• Audio: 1x RCA In, 1x RCA Out
• Alarm: 4x In, 1x Out
• Network: 1x RJ45 10/100/1000 Mbps
• HDD Bays: 2x SATA III, up to 10TB each (20TB total)
• USB: 1x USB 2.0 (front), 1x USB 3.0 (rear)
• Power: DC12V/4A, consumption <10W (without HDD)
• Operating Temperature: -10°C to +55°C

Recommendations

For optimal performance, use compatible BCS IP cameras and enterprise-grade HDDs. The NVR supports PoE switches for simplified cabling. Ensure adequate ventilation for reliable 24/7 operation.
