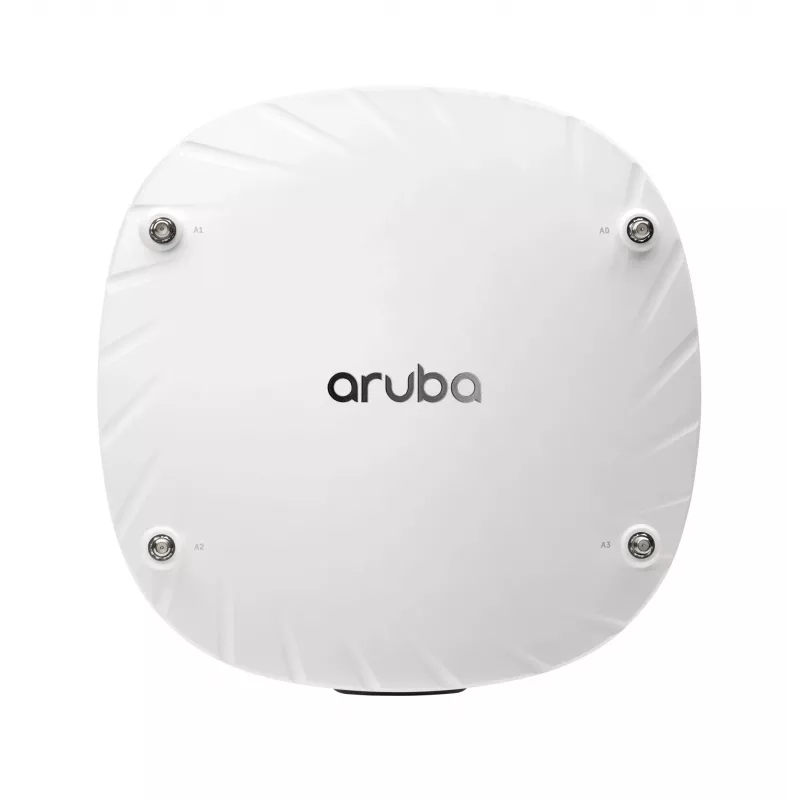

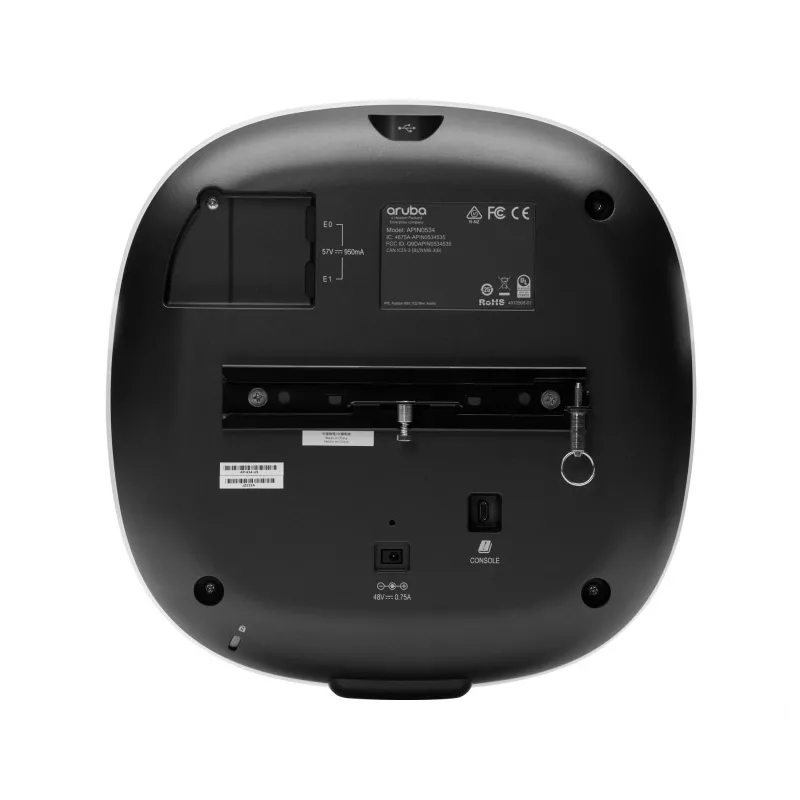

Access Point HPE Aruba AP-534 2,4 GHz 5 GHz Wi-Fi 6

The HPE Aruba AP-534 is a Wi‑Fi 6 (802.11ax) dual‑band access point designed for high‑density environments with mobile and IoT devices. It delivers up to 3550 Mbit/s aggregate data rate across 2.4 GHz and 5 GHz bands, supports multi‑gigabit Ethernet (100/1000/2500/5000 Mbit/s) and includes Power over Ethernet capability. The AP‑534 integrates Aruba software features such as AI‑driven RF optimization, ClientMatch for intelligent client steering, WPA3 security support and an energy‑saving Green AP mode.

Advantages

The AP‑534 increases overall network throughput and can boost performance up to 4× compared with 802.11ac APs by serving multiple clients and traffic types simultaneously. Aruba ClientMatch groups Wi‑Fi 6 clients onto optimal access points to leverage multi‑user 802.11ax features. Intelligent Power Monitoring enables operation even when available PoE power is limited. The unit is IoT and location ready, supporting Bluetooth and Zigbee use cases via the Wi‑Fi infrastructure.

Suitable for

• High‑density offices, auditoriums and conference venues
• Campuses and multi‑floor buildings with many mobile clients
• Environments requiring integrated IoT connectivity (Bluetooth, Zigbee)
• Installations needing multi‑gigabit wired backhaul and PoE deployment

Key specifications

• Model: HPE Aruba AP‑534 (JZ331A)
• Wireless: IEEE 802.11ax (Wi‑Fi 6), 802.11a/b/g/n/ac
• Frequency bands: 2.4 GHz and 5 GHz
• Maximum aggregate data rate: 3550 Mbit/s
• Ethernet LAN ports: 2 (RJ‑45), supports 100 / 1000 / 2500 / 5000 Mbit/s
• Power: PoE (supports IEEE 802.3af/at/bt); maximum power consumption 23.3 W
• Antennas: 4
• Security: WMM, WPA, WPA2, WPA3 support
• Color and weight: White, 1.27 kg

How to use

Mount the AP‑534 according to site planning guidelines and connect it to the network via a compatible PoE switch or injector on one of the RJ‑45 ports. Configure basic network settings and security (SSID, authentication, WPA3 if available) using Aruba management tools or your chosen controller. Place the access point to provide optimal coverage for the intended area, taking into account antenna orientation and potential sources of interference.

Recommendations

For best results in high‑density deployments, enable Aruba ClientMatch and AI‑powered RF optimization, use multi‑gigabit backhaul where possible, and enable Green AP mode to reduce energy consumption when peak performance is not required.
