Access Point HUAWEI eKit AP266 2,4 GHz 5 GHz Wi-Fi 6

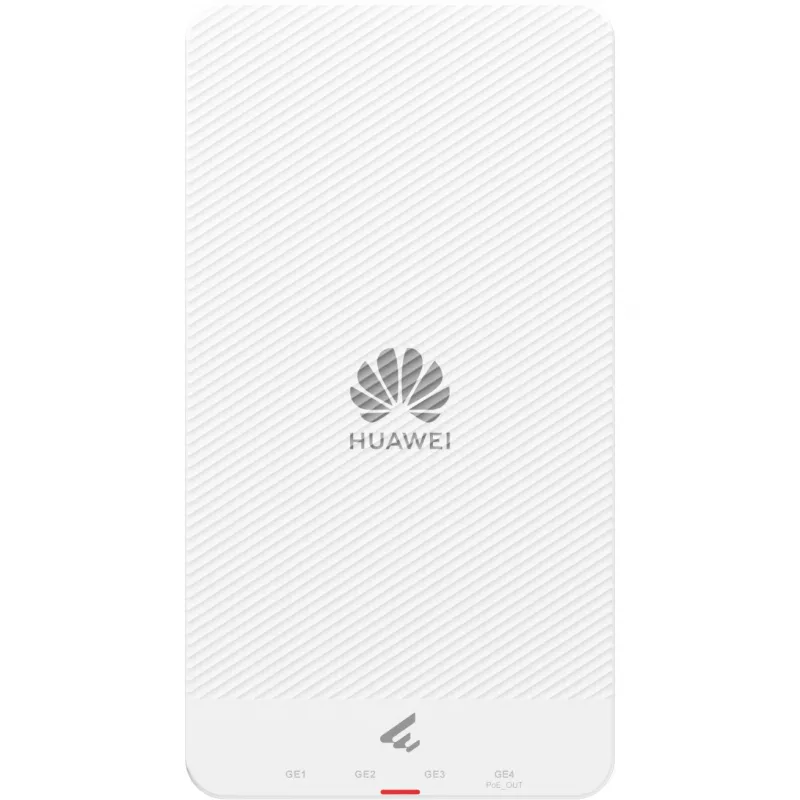

The HUAWEI eKitEngine AP266 is a slim indoor wall-plate access point compliant with the Wi‑Fi 6 (802.11ax) standard. It operates simultaneously on the 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) bands with four spatial streams and a combined data rate of up to 2.975 Gbps. The unit provides one GE uplink port and four GE downlink ports (one with PoE OUT support), supports PoE power, and can be installed on a desk, wall, ceiling, or junction box to fit various indoor deployment scenarios such as budget hotels, hospitals, retail stores, and schools.

Advantages

The AP266 delivers dual‑band Wi‑Fi 6 performance with four spatial streams for high aggregate throughput while remaining compact and easy to deploy. Multiple mounting options and PoE support simplify installation. Integrated security features including WPA2-PSK and WPA3-SAE and management via EasyWeb, wireless access controller (WAC), or the HUAWEI eKit App & SNC platform enable local or remote device management and streamlined operation and maintenance.

Suitable for

• Small to medium indoor coverage: budget hotels
• Healthcare facilities and clinics
• Retail stores and commercial outlets
• Schools, classrooms, and campus indoor areas

Key specifications

• Wi‑Fi standard: IEEE 802.11ax (Wi‑Fi 6)
• Radio bands: 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO)
• Maximum data rate: up to 2,975 Mbit/s
• Ethernet ports: 1 GE uplink + 4 GE downlink (one supporting PoE OUT)
• Security: SSH‑2, WPA2‑PSK, WPA3‑SAE
• Maximum power consumption: 9.4 W
• Weight: 0.23 kg
• Colour: White

How to use

Mount the AP266 on a desk, wall, ceiling, or junction box according to the installation location. Connect the uplink GE port to your network switch or router and provide power via PoE if available. Configure the AP locally using EasyWeb or a wireless access controller (WAC), or register the device on the HUAWEI eKit App & SNC platform for remote management and maintenance. Apply appropriate wireless security settings (WPA2/WPA3) and network policies as required.

Recommendations

For optimal coverage and performance, place the AP266 centrally within the intended indoor area, avoid obstructions near the antenna area, and ensure the uplink has sufficient bandwidth. Use PoE-capable switches to simplify deployment and enable centralized power management. When deploying multiple APs, perform site planning to minimize channel overlap and ensure proper capacity and roaming behavior.
