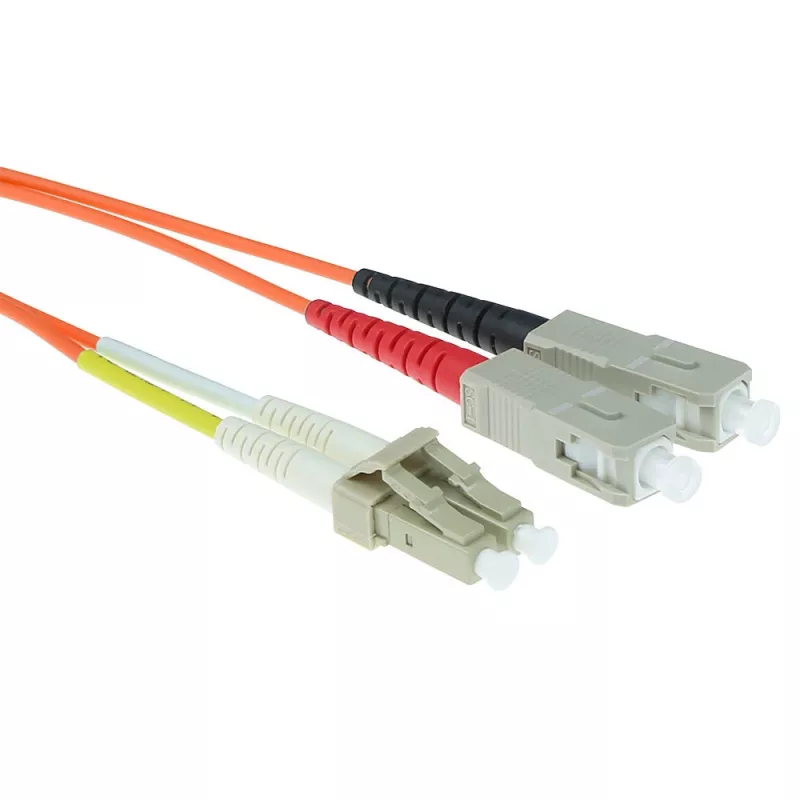

ACT 1,5 m LSZH Multimode 62,5/125 OM1 duplex optický patch kábel s LC a SC konektormi

The ACT 1.5m LSZH Multimode 62.5/125 OM1 Duplex fiber patch cable with LC and SC connectors provides a short-range multimode link for network and telecom equipment. Constructed with OM1 62.5/125 µm multimode fiber, the cable supports standard multimode transmission for legacy and mixed optical environments. The duplex format enables full-duplex communication between devices while the combination of LC and SC connectors allows compatibility with a range of transceivers and patch panels. The LSZH jacket limits smoke and toxic gas emission in the event of fire, making this cable suitable for use in enclosed spaces where safety regulations or site policies require low-smoke materials.

Advantages

This multimode fiber cable combines a duplex 62.5/125 OM1 core with LC and SC terminations to offer flexible connectivity for short-distance links. The 1.5 meter length reduces excess slack and simplifies routing in patch bays and rack installations. The LSZH outer jacket provides improved safety characteristics compared with standard PVC jackets, reducing smoke density and halogen emission during combustion. Precision-terminated connectors ensure reliable signal transfer and low insertion loss when mated with compatible ports.

Suitable for

• Short-range multimode links in data centers and server rooms
• Connections between switches, transceivers and patch panels
• Telecommunications closets and riser installations with LSZH requirements
• Lab and test bench setups requiring duplex LC–SC connections

Key specifications

• Fiber type: Multimode OM1, 62.5/125 µm
• Length: 1.5 meters
• Connector configuration: Duplex (LC to SC)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Polish/termination: Factory-terminated connectors with standard polish
• Typical applications: Short-range multimode data links

How to use

Route the duplex fiber cable between the source and destination ports, ensuring connectors are kept clean and free of dust. Remove protective dust caps from LC and SC connectors before insertion and align connectors with the corresponding ports until a positive click or seating is felt. Avoid tight bends and secure the cable with gentle ties or cable management panels to maintain bend radius and prevent microbending loss. When disconnecting, press the connector latch and pull straight out to avoid damaging the ferrule or connector housing.

Recommendations

Clean connector endfaces with appropriate fiber cleaning tools before each connection, adhere to the minimum bend radius specified for multimode fibers, and use LSZH jacketed cables in enclosed or public spaces where reduced smoke and halogen emissions are required by safety codes or site policies.
