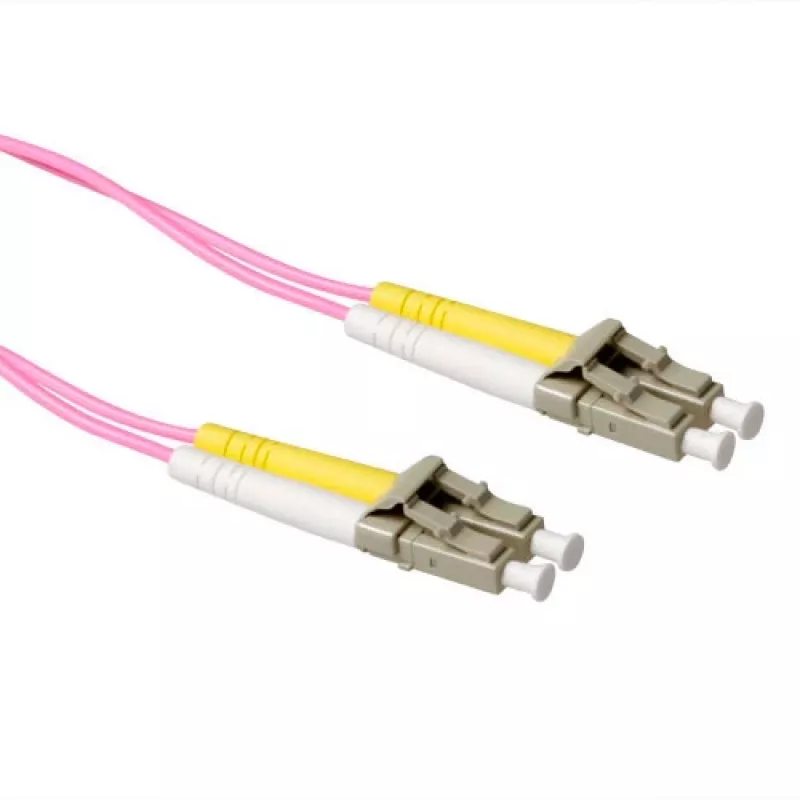

ACT 10 metrov LSZH multimódové 50/125 OM4 optické patch káble duplex s LC konektormi

The ACT 10 meter LSZH Multimode 50/125 OM4 fiber patch cable with duplex LC connectors provides a reliable optical link for high-speed networks. With a 50 µm core diameter and OM4 multimode grading, it supports increased bandwidth and reach for data center, server room and enterprise backbone connections. The cable sheath uses Low Smoke Zero Halogen (LSZH) material to limit smoke and hazardous gas emissions in case of fire, making it suitable for installations in confined or public spaces where safety standards are required.

Advantages

This multimode fiber patch cable delivers consistent full-duplex transmission with low insertion loss and high return loss performance typical for OM4 grade fiber. The duplex LC connectors provide a compact footprint for high-density patch panels and transceivers. The LSZH outer jacket adds an extra layer of safety for indoor environments without halogen-containing compounds. The 10 meter length balances flexibility in routing with manageable signal attenuation for short- to mid-range links.

Suitable for

• Data center uplinks and cross-connects
• Server rack-to-rack connections
• High-performance computing clusters and storage networks
• Telecommunications rooms and campus backbone links
• Indoor installations requiring low-smoke cabling

Key specifications

• Fiber type: Multimode OM4
• Core/cladding diameter: 50/125 µm
• Connector type: Duplex LC to duplex LC
• Cable jacket material: LSZH (Low Smoke Zero Halogen)
• Length: 10 meters
• Polishing/connector finish: PC/APC/UPC not applicable — standard multimode polish

How to use

Route the cable between compatible LC duplex ports on patch panels, switches, transceivers or network interface modules. Ensure connectors are clean and free of dust or debris before mating; use appropriate fiber cleaning tools to maintain low insertion loss. Avoid tight bends and maintain the cable minimum bend radius during installation to prevent microbend losses. Secure the cable with appropriate cable management accessories and avoid crushing or excessive tensile stress while routing through racks or conduits.

Recommendations

For best performance, use the cable within typical multimode distance limits for OM4 grading and pair it with OM4-compatible transceivers and patching hardware. Regularly inspect connector endfaces and clean as needed, and follow site safety standards for LSZH cabling during installation and maintenance.
