ACT 40 metrov Singlemode 9/125 OS2 Duplex robustný optický kábel s LC a SC konektormi

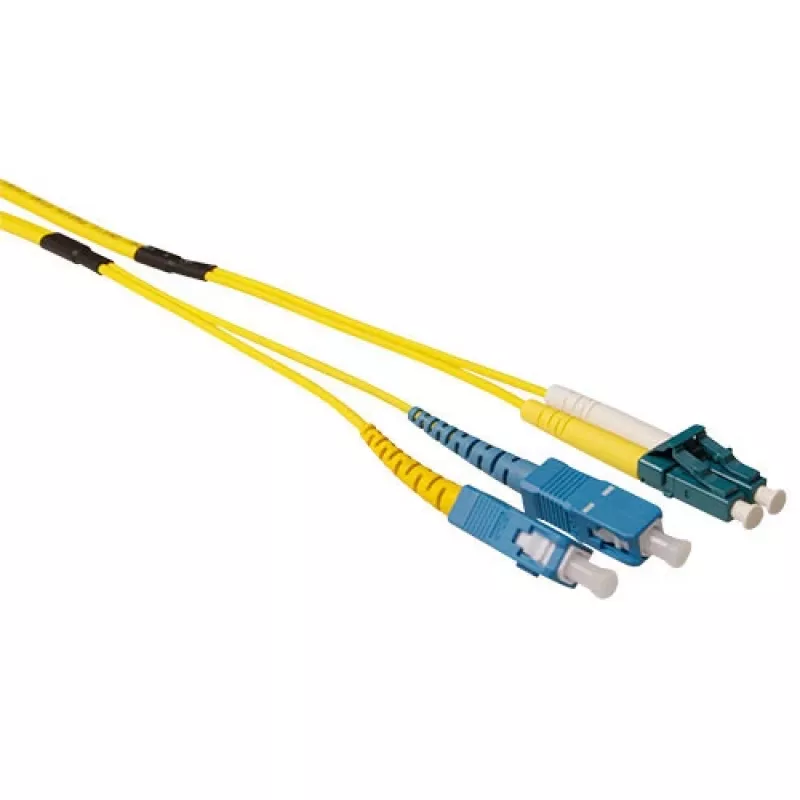

The ACT 40 meter Singlemode 9/125 OS2 duplex ruggedized fiber cable provides long-distance singlemode transmission with a 9 µm core and OS2 rating. This ruggedized duplex assembly includes two LC and two SC connectors, offering flexible connectivity for indoor and outdoor installations. Each cable is factory-tested with individual IL (insertion loss) and RL (return loss) reports, and end faces are 100% inspected to ensure connection quality.

Advantages

Grade A fiber and UPC polish deliver low loss and consistent signal performance. Laser-precision cleaving and UPC polishing improve connector end-face quality, while individual IL and RL test reports verify performance for each cable. The ruggedized jacket increases durability for demanding environments.

Suitable for

• Long-distance telecommunications and data links
• Indoor backbone and campus networks
• Outdoor or harsh-environment fiber runs where a rugged jacket is required
• Connections requiring LC and SC connector compatibility

Key specifications

• Length: 40 meter
• Fiber type: Singlemode 9/125 µm, OS2
• Configuration: Duplex (two fibers)
• Connectors: 2 × LC and 2 × SC
• Fiber grade: Grade A
• Polish: UPC
• Quality control: Individual IL and RL test report; 100% end-face inspection

How to use

Route the cable avoiding tight bends and mechanical stress, respecting the manufacturer’s minimum bend radius. Terminate or connect the LC and SC connectors to compatible ports on transceivers, patch panels or equipment. Verify link performance using the provided IL and RL test reports and perform visual inspection of end faces if required.

Recommendations

For optimal long-term performance, install the cable with proper strain relief, protect connectors from contamination using dust caps when not connected, and follow standard singlemode handling procedures to avoid bending or crushing the fiber.
