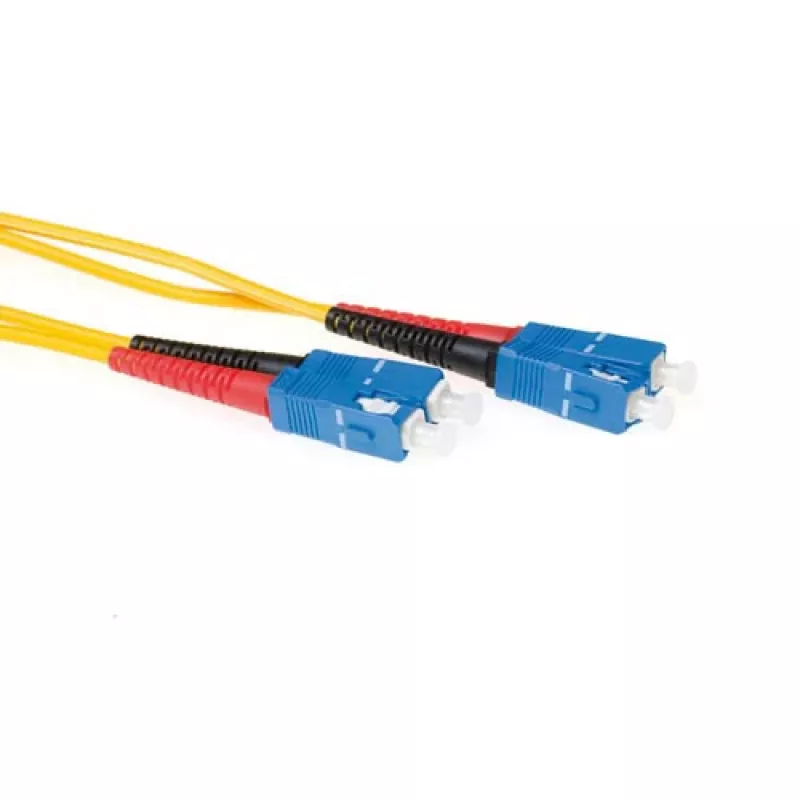

ACT 7 metrov LSZH jednovidové 9/125 OS2 optické patch kábel duplex s SC konektormi

The ACT 7 meter LSZH Singlemode 9/125 OS2 fiber patch cable with duplex SC connectors provides a singlemode optical link for full-duplex data transmission. Constructed with Grade A fiber and a 9 µm core diameter, the cable is designed to minimise insertion loss and return loss. The LSZH jacket reduces smoke and halogen emissions in confined environments. Each cable is supplied with a test report documenting IL and RL measurements and 100% end-face inspection; connectors use UPC polish and laser-precision cleaving for consistent performance.

Advantages

Grade A singlemode fiber and UPC-polished SC connectors deliver predictable optical characteristics and low signal degradation. Laser precision cleaving and 100% end-face inspection improve connector mating quality. Individual IL (insertion loss) and RL (return loss) test reports for each cable provide measurable verification of performance. The LSZH jacket offers increased safety by minimising smoke and halogen output in case of fire.

Suitable for

• Data center links and rack-to-rack connections
• Telecommunications and carrier networks
• Campus and enterprise backbone cabling
• Any application requiring singlemode OS2 performance and full-duplex SC duplex connectivity

Key specifications

• Brand: ACT
• Model / MPN: RL3907
• EAN: 8716065308495
• Length: 7 m
• Fiber type: Singlemode 9/125 µm, OS2
• Configuration: Duplex
• Connectors: SC — UPC polish
• Jacket: LSZH (Low Smoke Zero Halogen)
• Quality: Grade A fiber; laser precision cleaving
• Testing: Individual IL and RL test report; 100% end-face inspection

How to use

Inspect the UPC-polished SC connector end-faces before installation using appropriate inspection tools to confirm no contamination. Route the 7 m LSZH cable along cable trays or within racks, avoiding tight bends and excessive tensile load. Plug the SC duplex connectors into matching SC ports ensuring proper alignment and secure mating. Verify link performance with an optical power meter or diagnostic equipment as required.

Recommendations

Store and handle the cable to avoid sharp bends (follow the manufacturer’s minimum bend radius), keep connectors capped until final connection, and refer to the supplied IL/RL test report when validating network links.
