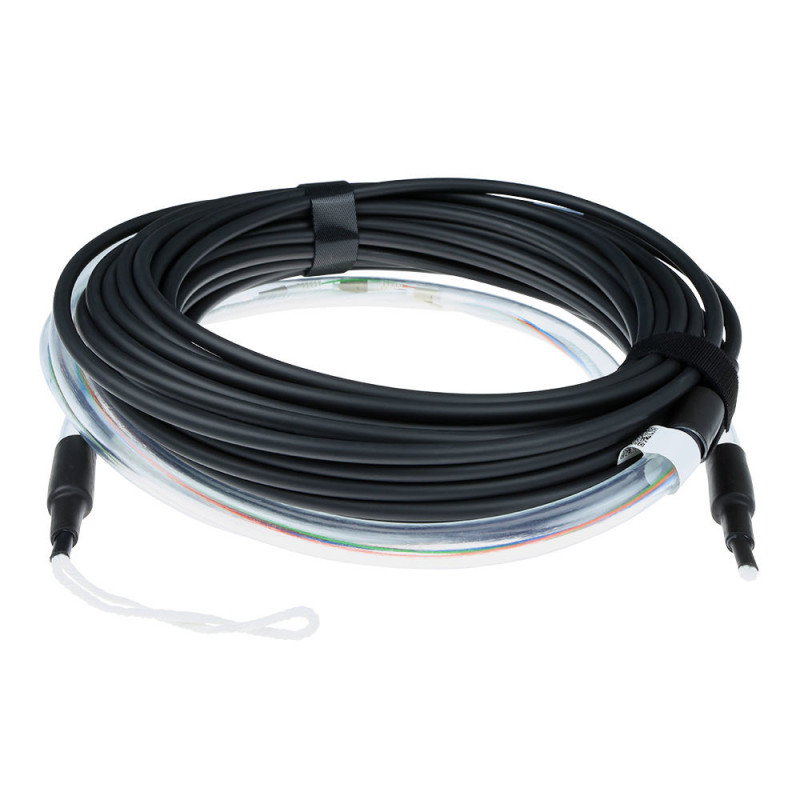

ACT RL4210 100 m multimódový 50/125 OM3 optický kábel pre interiér/exteriér, 8 vlákien, LC na LC, LSZH aqua

Pre-terminated 8-fiber multimode OM3 cable with LC connectors, delivering 1500 MHz·km bandwidth at 850 nm for high-speed backbone links up to 100 meters.

Overview

The ACT RL4210 is a 100-meter pre-terminated fiber optic cable with 8 multimode OM3 fibers, each 50/125 µm, terminated with LC connectors on both ends (8x LC to 8x LC). The LSZH jacket in aqua is suitable for indoor/outdoor installations, meeting IEC 60793, TIA/EIA-568-C.3, and ISO/IEC 11801 standards.

What stands out

• OM3 multimode fiber supports 10 GbE up to 300 m and 40/100 GbE up to 100 m.
• Low insertion loss: < 0.3 dB per connector.
• Attenuation: < 3.0 dB/km at 850 nm, < 1.0 dB/km at 1300 nm.
• Wide operating temperature range: -20°C to 70°C.

Technical details

• Cable length: 100 m
• Fiber count: 8
• Fiber type: Multimode OM3, 50/125 µm
• Connectors: LC to LC (8x each end)
• Jacket: LSZH, aqua
• Bandwidth: 1500 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Insertion loss: < 0.3 dB per connector
• Attenuation: < 3.0 dB/km @ 850 nm, < 1.0 dB/km @ 1300 nm
• Operating temperature: -20°C to 70°C

Our verdict

A reliable pre-terminated OM3 trunk cable for data centers and enterprise networks, offering low loss and high bandwidth in a durable indoor/outdoor design.
