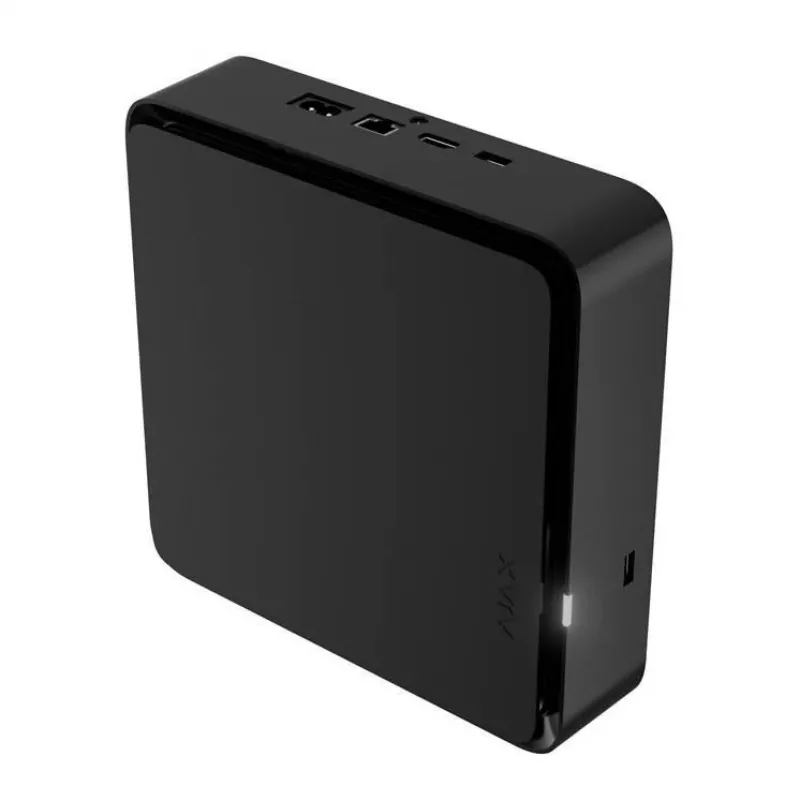

AJAX NET VIDEO RECORDER 16CH/HAC BLACK 134505

The AJAX NET VIDEO RECORDER 16CH/HAC BLACK 134505 is a high-performance network video recorder designed for professional surveillance systems. Supporting up to 16 IP channels with recording resolution up to 8 MP per channel simultaneously, this NVR ensures crisp and detailed video capture. With dual SATA bays supporting up to 32 TB total storage, it offers ample space for long-term recording. The device features H.265/H.264 compression for efficient bandwidth and storage usage, and includes HDMI (up to 4K) and VGA outputs for flexible monitoring. Built for reliability, it operates in temperatures from -10°C to +50°C and is compatible with Ajax cameras and ONVIF protocols.

Advantages

High-resolution recording up to 8 MP per channel ensures clear footage. Dual HDD bays with up to 32 TB capacity provide extensive storage. H.265 compression reduces storage requirements without compromising quality. Remote access via Ajax Security System app (iOS, Android) and desktop apps (macOS, Windows) allows convenient monitoring from anywhere. Gigabit Ethernet ensures fast data transfer.

Suitable for

• Commercial and residential security systems
• Retail stores, offices, and warehouses
• Multi-camera installations requiring high-definition recording

Key specifications

• Video Channels: 16 IP channels
• Max Recording Resolution: Up to 8 MP per channel (16 channels simultaneously), up to 32 MP (single channel)
• Video Compression: H.265, H.264
• HDD Bays: 2 x SATA (max 16 TB per HDD, 32 TB total)
• Network Interface: 1 x Gigabit Ethernet (RJ-45 10/100/1000 Mbps)
• Video Outputs: 1 x HDMI (up to 4K), 1 x VGA (up to 1080p)
• Audio Input/Output: 1 x RCA each
• USB Ports: 2 x USB 2.0
• Power Supply: DC 12V, 4A
• Operating Temperature: -10°C to +50°C (14°F to +122°F)
• Supported Protocols: Ajax cameras, ONVIF (Profile S/T), RTSP
• Max Bandwidth: 200 Mbps incoming/outgoing
• Simultaneous Playback: Up to 16 channels

Recommendations

For optimal performance, use with Ajax cameras and high-quality SATA hard drives. Ensure proper ventilation and stable power supply.
