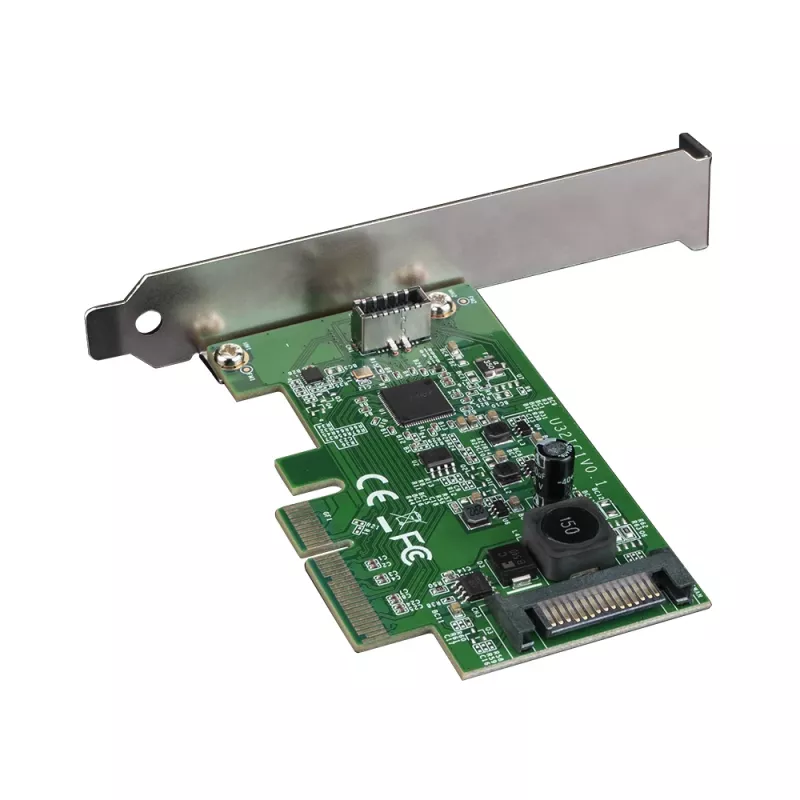

Akasa AK-PCCU3-08 USB Type-C PCIe Low Profile PCIe 3.0 SATA 15-Pin PC

The Akasa AK-PCCU3-08 is a high-performance USB Type-C expansion card designed to add one USB 3.2 Gen 2 Type-C port to your desktop PC via a PCI Express 3.0 x4 slot. Featuring the ASMedia ASM3142 chipset, it delivers data transfer speeds up to 10 Gbps and provides up to 15W (5V/3A) power delivery for connected devices. The card includes both low profile and standard height brackets, making it suitable for various chassis sizes.

Advantages

Upgrade your system with the latest USB-C connectivity without replacing your motherboard. Enjoy ultra-fast 10 Gbps data transfers and power delivery for charging smartphones, tablets, or external drives. The dual-profile bracket ensures compatibility with both standard and small form factor PCs.

Suitable for

• Desktop users needing USB-C connectivity
• Small form factor (SFF) PC builds
• Adding fast external storage or docking stations
• Charging USB-C devices at up to 15W

Key specifications

• Host Interface: PCI Express 3.0 x4
• External Ports: 1 x USB 3.2 Gen 2 Type-C
• Internal Connectors: 1 x SATA 15-pin Power
• Max Data Transfer Rate: 10 Gbps
• Chipset: ASMedia ASM3142
• Form Factor: Low Profile (with standard height bracket included)
• USB Power Output: 5V / 3A (15W)
• Backward Compatibility: USB 3.1 Gen 1, USB 2.0, USB 1.1
• OS Support: Windows 7/8/10/11, macOS, Linux
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, connect the SATA power cable to your power supply to ensure full 15W power delivery. Compatible with PCIe x4, x8, and x16 slots.
