Akyga AK-CA-38 PICO-PSU DC/ATX napájací adaptér, 120 W, 12 V DC vstup, 24-pin ATX, P4, SATA, Molex

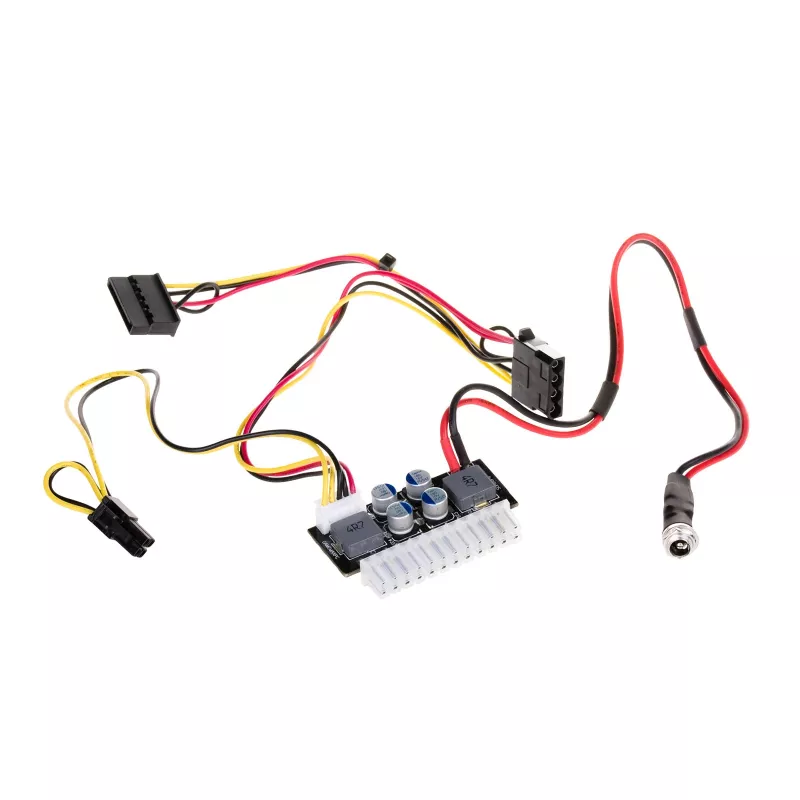

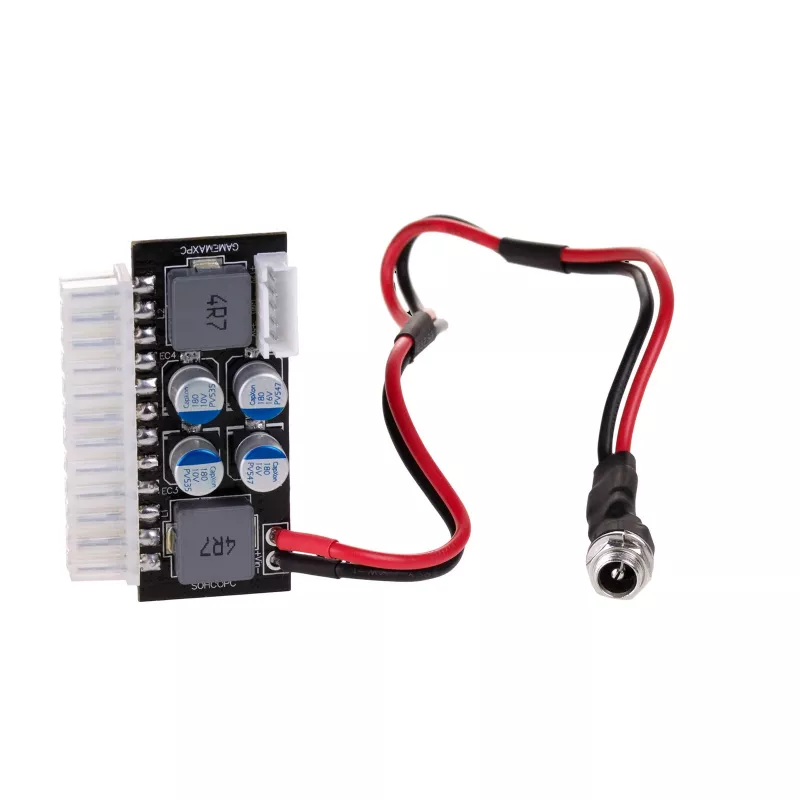

The Akyga AK-CA-38 PICO PSU DC/ATX power adapter is designed to power mini-ITX motherboards and is compatible with ATX 24-pin motherboards. It delivers up to 120 W from a 12 V DC input and features a 24-pin ATX connector, a P4 connector, a SATA connector, and a Molex connector. Its fanless design ensures silent operation.

Key features

• Compact PICO PSU DC/ATX adapter for mini-ITX and ATX 24-pin motherboards
• Fanless operation for silent performance
• High efficiency of 95%
• Equipped with SATA, Molex, and ATX 12V P4 connectors
• Soft start function

Specifications

• Total power: 120 W
• Input voltage: 12 V DC
• Power plug: 5.5 x 2.5 mm
• Efficiency: 95%
• Max output current (+3.3V): 6 A
• Max output current (+5V): 6 A
• Max output current (+12V): 10 A
• Combined power (+3.3V): 50 W
• Combined power (+12V): 120 W
• Mainboard power connector: 24-pin
• Power connector ATX12V P4: 1 pc
• SATA connector: 1 pc
• Molex connector: 1 pc
• Number of fans: 0
• On/off switch: No
• Operating temperature: 0 - 40 °C
• Storage temperature: -20 - 70 °C
• Operating relative humidity: 5 - 95%
• Compliance certificates: CE, FCC, RoHS, REACH
• Weight: 57.4 g
• Product size (L x W x H): 120 x 62 x 33 mm
• Cable length: 30 cm
