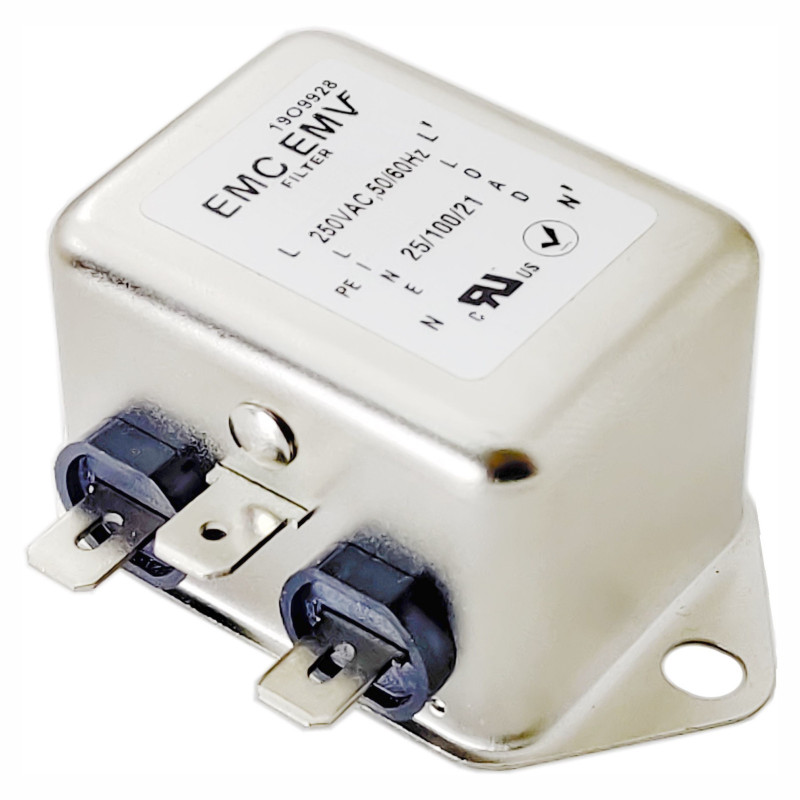

Akyga EN2020-6-F jednofázový EMC filter, 6 A, 120-250 V AC, 50/60 Hz, 6,3 mm plochý konektor

The Akyga EN2020-6-F is a single phase EMI filter designed for devices with medium power consumption, where power signal purity affects operation quality. It handles currents up to 6 A and is suitable for applications requiring effective noise filtering.

Key features

• EMI interference filter
• Maximum working current: 6 A
• 6.3 mm connectors for installation
• Durable metal housing
• Number of poles: 2

Specifications

• Brand: Akyga
• MPN: EN2020-6-F
• Product type: EMI Filter
• Filter type: Anti-interference
• Maximum working current: 6 A
• Leads: 6.3 mm connectors
• Leakage current: 0.43 mA @120 VAC 60 Hz, 0.74 mA @250 VAC 50 Hz
• Number of poles: 2
• Material: Metal
• Temperature: -25°C to +100°C
• Product size (L x W x H): 61 x 56 x 29 mm
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720138538
