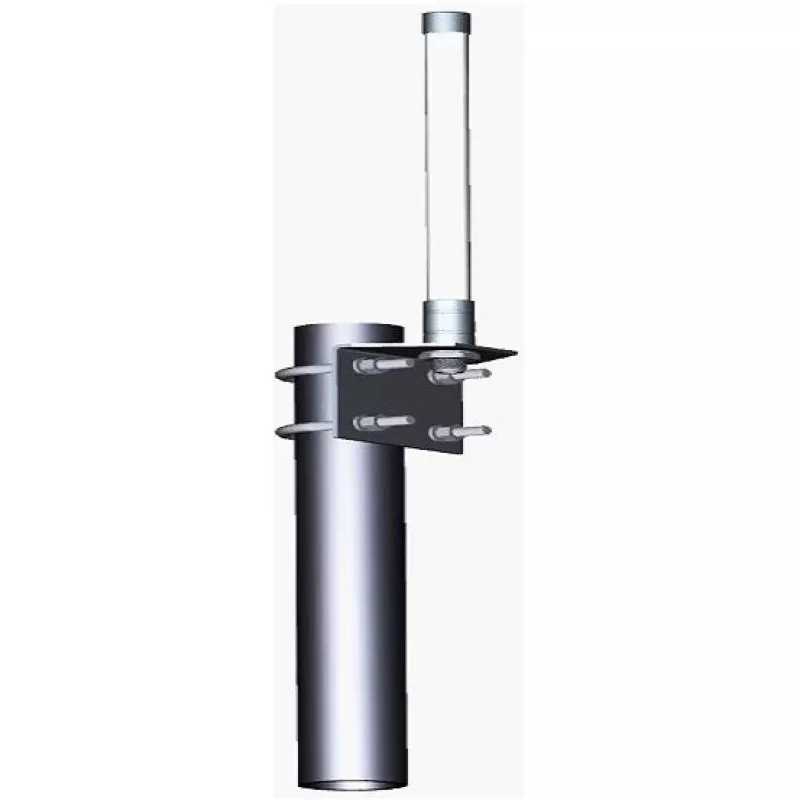

ALLNET anténa ANT-868-7.3dbi-OMNI 868 MHz všesmerová 7.3 dBi N-konektor samica

The ALLNET ANT-868-7.3dbi-OMNI is an omnidirectional antenna designed for the 868 MHz band, offering 7.3 dBi gain and an N-female connector for straightforward integration with compatible radios and gateways. Built to extend horizontal coverage and improve link reliability in IoT, telemetry, remote monitoring and industrial radio systems, this antenna emphasizes stable reception and uniform signal distribution across a wide area.

Advantages

This omnidirectional antenna delivers a notable 7.3 dBi gain that increases effective range and improves signal-to-noise performance for devices operating in the 868 MHz frequency band. The N-female connector simplifies mounting and connection to equipment with matching male ports, while the antenna’s radiation pattern provides consistent coverage around the installation point. Its design supports outdoor and indoor deployments where broad horizontal coverage and dependability are needed.

Suitable for

• IoT networks and sensor gateways requiring extended range
• Telemetry and remote monitoring systems
• Industrial radio links and SCADA applications
• Gateways and base stations in agricultural and smart-city deployments
• Environments needing uniform horizontal coverage

Key specifications

• Frequency band: 868 MHz
• Gain: 7.3 dBi
• Radiation type: omnidirectional (horizontal plane coverage)
• Connector: N-female
• Typical use: outdoor and indoor deployment for longer-range links

How to use

Mount the antenna in a location that provides a clear line of sight where possible and minimizes obstructions between the antenna and remote devices. Connect the N-female antenna directly to the device’s N-male port or use an appropriate low-loss coaxial pigtail if needed for positioning. Align the antenna vertically for optimal omnidirectional horizontal coverage. After installation, verify device link quality and adjust mounting height or position to reduce interference and maximize coverage.

Recommendations

For best performance, install the antenna at a height above nearby obstacles and away from large metallic surfaces or other antennas. Use high-quality, low-loss coaxial cables and weatherproof connectors for outdoor setups. Regularly check connector integrity and routing of cables to maintain reliable long-term operation.
