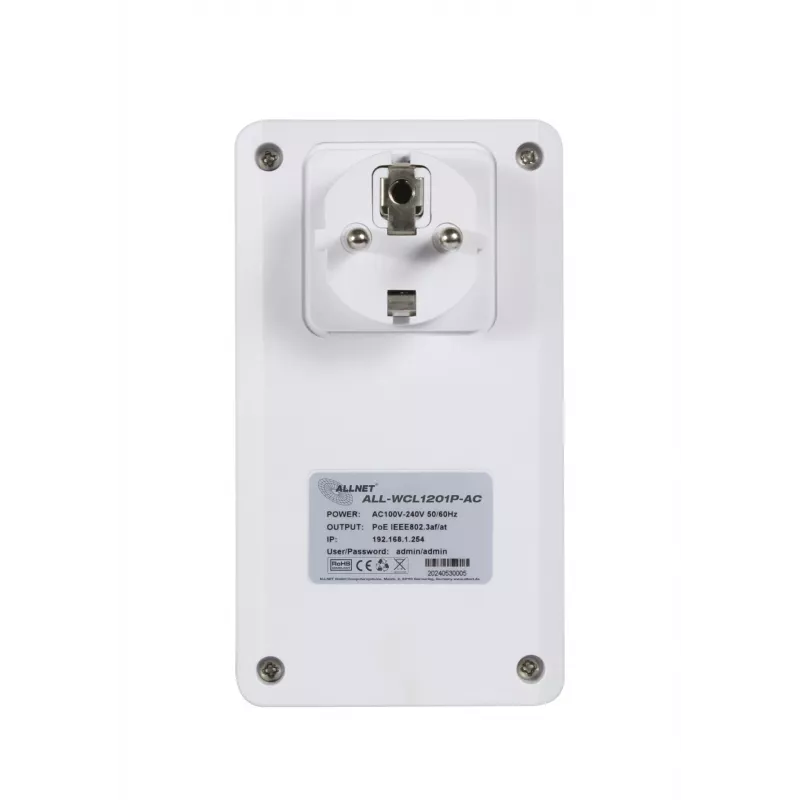

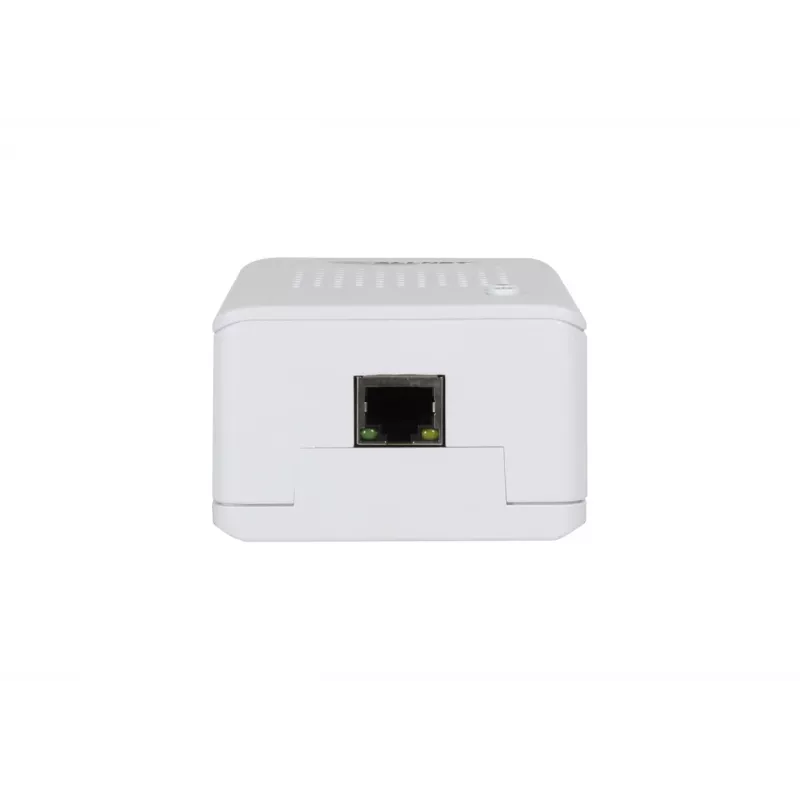

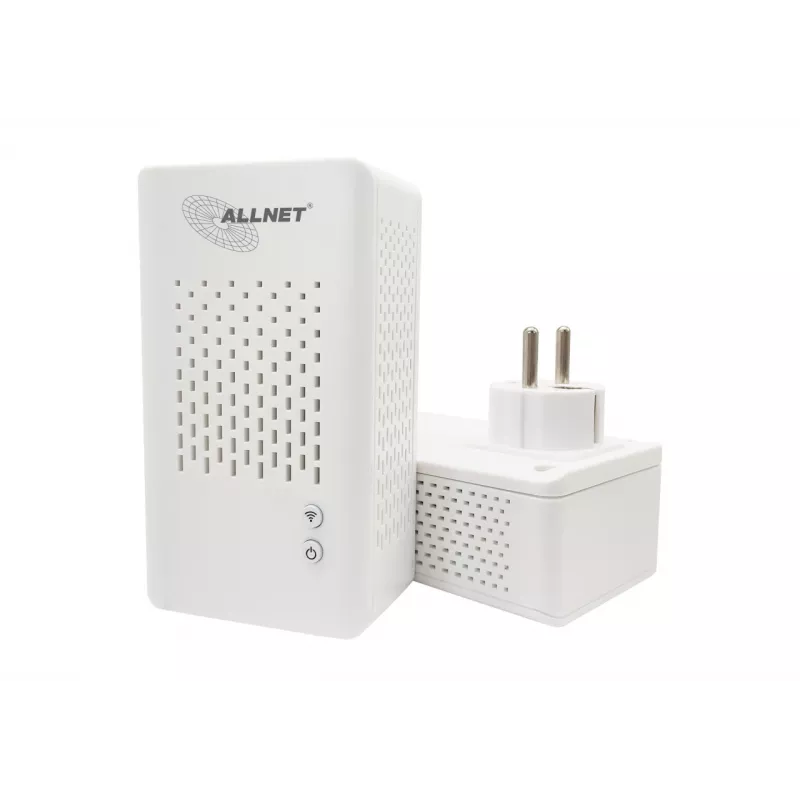

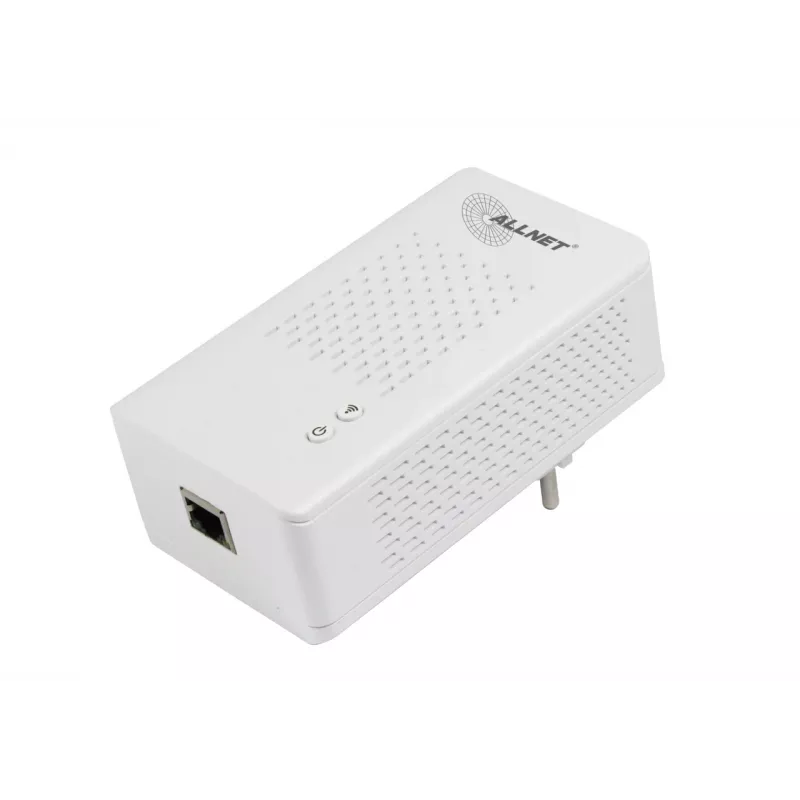

ALLNET bezdrôtový klient s PoE Out 2,4 GHz a 5 GHz AC - Wi-Fi - 1,2 Gbit/s (ALL-WCL1201P-AC)

The ALLNET ALL-WCL1201P-AC is a high-performance wireless client bridge designed to extend network connectivity to remote devices. With dual-band 2.4GHz and 5GHz AC Wi-Fi, it delivers combined data rates of up to 1.2 Gbps, making it ideal for bandwidth-intensive applications. The integrated PoE output (802.3af) on port 2 allows powering external devices such as IP cameras or access points, eliminating the need for separate power sources.

Advantages

This device offers versatile operating modes including Client, Access Point, Repeater, WISP, and WDS Bridge, providing flexibility for various deployment scenarios. Its compact design supports wall and ceiling mounting, and the internal antennas ensure a clean installation. The PoE input (802.3af/at) simplifies power delivery, while the PoE output enables powering downstream equipment.

Suitable for

• Extending wired network to wireless-only devices
• Connecting remote IP cameras or sensors with PoE
• Creating wireless bridges between buildings
• Setting up temporary or permanent Wi-Fi hotspots

Key specifications

• Wireless Standard: IEEE 802.11ac/a/b/g/n
• Frequency Bands: 2.4 GHz, 5 GHz (Dual-Band)
• Max Data Rate: 1200 Mbps (300 Mbps 2.4GHz + 867 Mbps 5GHz)
• Ethernet Ports: 2x Gigabit (10/100/1000 Mbps)
• PoE Input: 802.3af/at (Port 1)
• PoE Output: 802.3af (Port 2, max 15.4W)
• Antenna: Internal, 2x 3dBi per band
• Security: WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
• Management: Web GUI, SNMP, CLI
• Power: PoE or 12V DC

Recommendations

For optimal performance, use this device as a wireless client to connect Ethernet-only devices to a Wi-Fi network. The PoE output is perfect for powering a single IP camera or small access point. Ensure the upstream PoE switch provides sufficient power (802.3af/at) to support both the client and the powered device.
