ATEN USB 2.0 DVI Dual View HDBaseT 2.0 KVM extender s audio a RS232 (150 m)

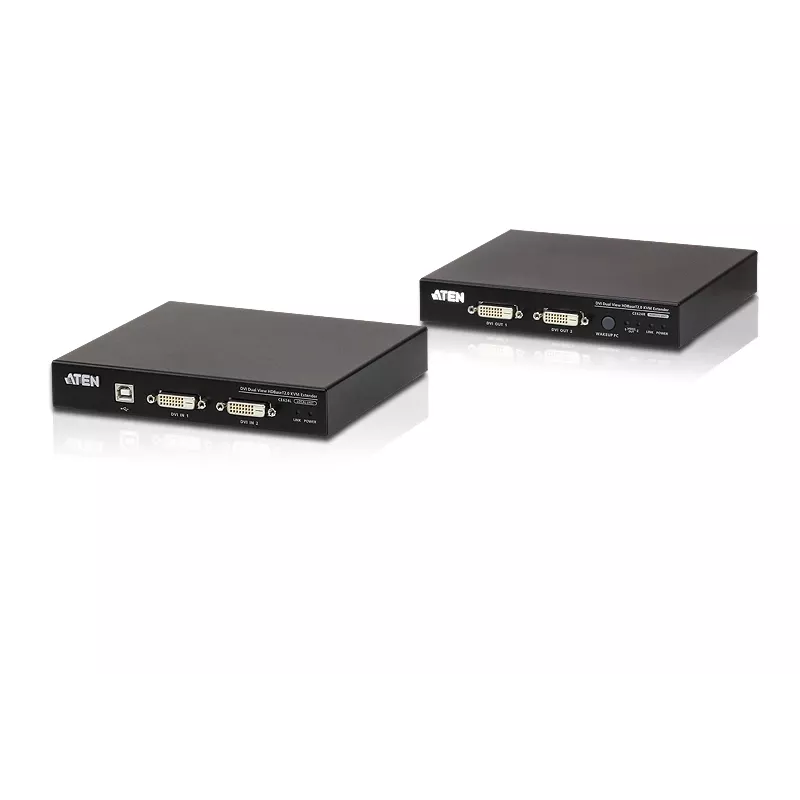

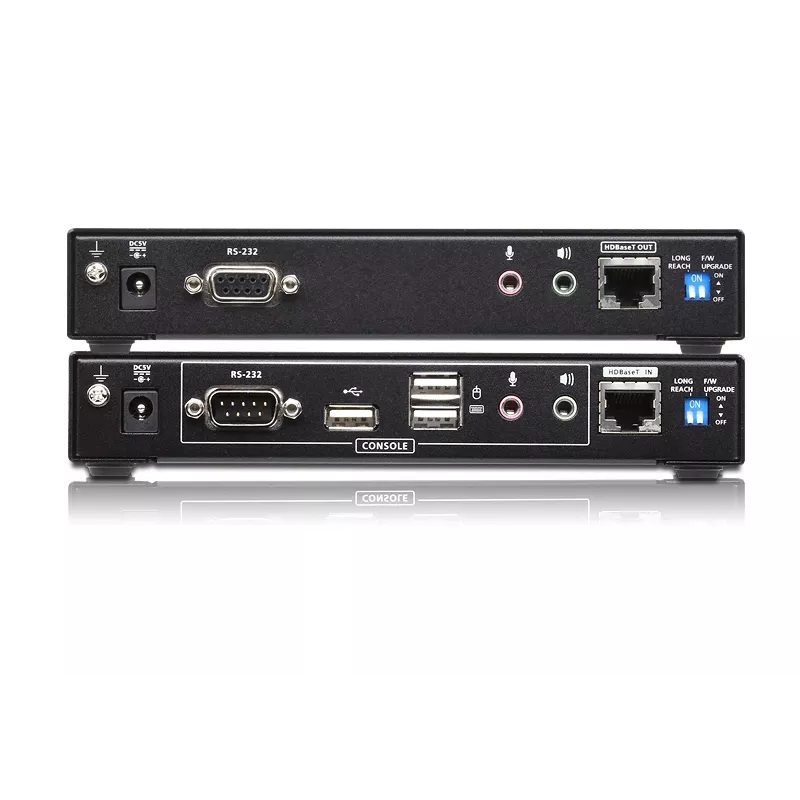

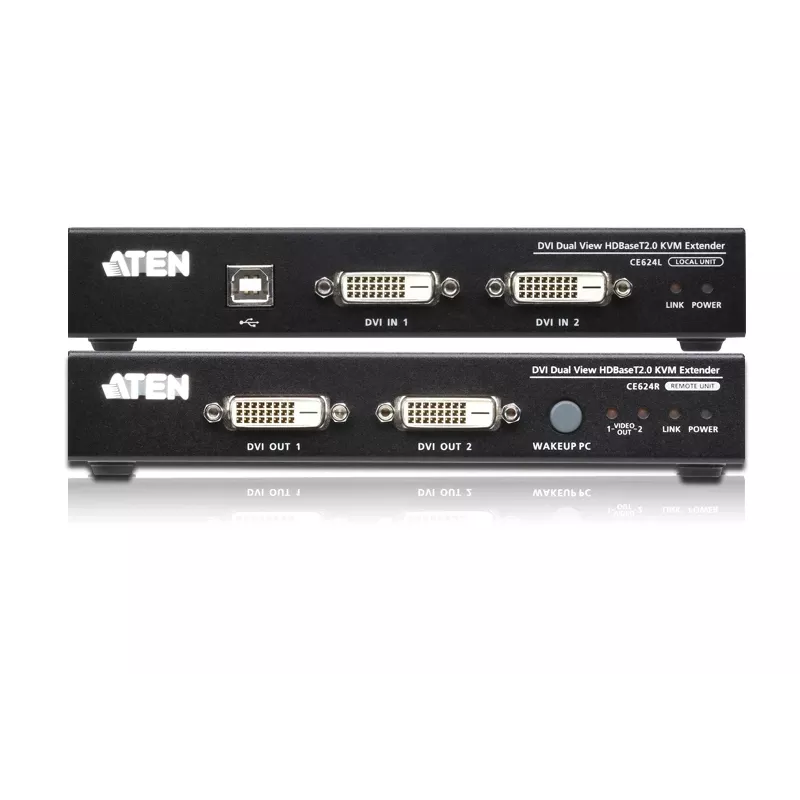

The ATEN CE624 USB DVI Dual View HDBaseT™ 2.0 KVM Extender transmits DVI Dual View video, PCM 2-channel digital audio, USB 2.0 and RS-232 signals from a source computer to a remote location over a single Cat6/6a cable up to 100 meters. It integrates HDBaseT™ 2.0 technology to provide reliable long-distance signal delivery with a compact transmitter and receiver form factor suitable for installations that require remote access to a workstation.

Advantages

The CE624 supports simultaneous transmission of DVI Dual View video and audio together with USB 2.0 and RS-232 over one Cat6/6a cable, reducing cabling complexity. The unit uses HDBaseT™ 2.0 for stable signal integrity over distance and offers a compact transmitter and receiver design that simplifies installation in constrained spaces. It enables centralized placement of the source computer while providing remote control and peripheral connectivity.

Suitable for

• Transportation control centers
• Medical facilities and imaging workstations
• Industrial warehouses and factory floors
• Extended or remote workstation setups

Key specifications

• Video format: DVI Dual View
• Audio: PCM 2-channel digital audio
• USB: USB 2.0 support
• Serial: RS-232 support
• Transmission medium: single Cat6/6a cable
• Maximum extension distance: up to 100 meters (per manufacturer text)
• Technology: HDBaseT™ 2.0
• Colour: Black

How to use

Install the transmitter at the source computer and connect its DVI, USB and RS-232 ports to the corresponding computer outputs. Install the receiver at the remote workstation and connect the remote display, USB peripherals and serial devices. Link transmitter and receiver with a single Cat6/6a cable. Power both units according to the manufacturer’s instructions and verify signal presence at the remote end. Configure connected peripherals on the remote system as needed.

Recommendations

For best performance, use high-quality Cat6 or Cat6a cabling, keep cable runs within the specified maximum distance of 100 meters, and avoid routing cables near sources of electrical interference. Follow ATEN’s installation guidelines for grounding and power to ensure reliable operation.
