Autoanténa Panorama Antennas LGMDM4-6-60-24-58

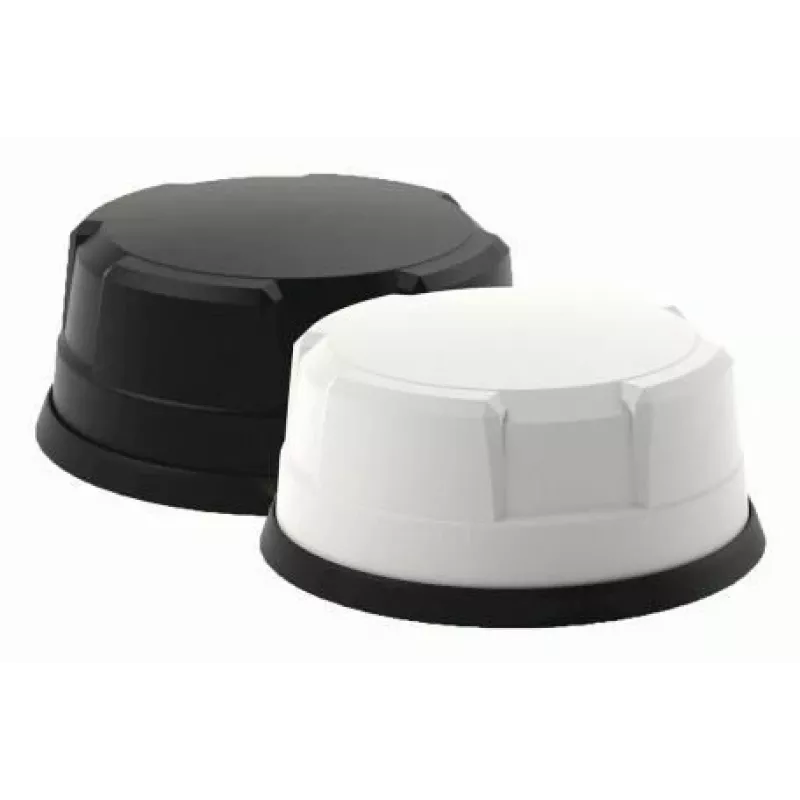

The Panorama Antennas LGMDM4-6-60-24-58 is a robust vehicle-mounted roof antenna offering high-performance 4x4 MIMO coverage for cellular bands and optional dual-band Wi‑Fi and GPS/GNSS. It supports 617–960 MHz and 1710–6000 MHz for cellular/LTE with four isolated high-performance elements, with up to six optional dual-band elements for 2.4 GHz and 4.9–6 GHz Wi‑Fi MIMO/diversity and an optional high-performance GPS/GNSS element with an integrated 26 dB LNA and filtering. The antenna is designed for hard mounting with a 1.8 cm mounting hole and dimensions of approximately 80 mm (height) × 180 mm (length) × 180 mm (width). None of the antenna variants require a metallic ground plane and they maintain performance on non-metallic surfaces.

Advantages

The design provides 4x4 MIMO at cellular/LTE frequencies and flexible MiMo/diversity options for Wi‑Fi (2x2, 3x3, 4x4 or 6x6) without needing a ground plane. An integrated, optional GPS/GNSS element includes a 26 dB gain LNA and high-quality filtering for improved positioning accuracy. The construction suits permanent vehicle roof mounting and is weather resistant, with a compact footprint and a white finish for a discreet appearance.

Suitable for

• Mobile routers and gateways requiring 4x4 MIMO cellular connectivity
• Vehicles needing combined cellular, Wi‑Fi and GPS/GNSS antennas
• Applications where mounting on non-metallic surfaces is required
• Deployments that require hard-mounted, low-profile roof antennas

Key specifications

• Model: LGMDM4-6-60-24-58 (Panorama Antennas)
• Cellular/LTE frequency range: 617–960 MHz and 1710–6000 MHz
• Wi‑Fi frequency support (optional): 2.4 GHz and 4.9–6 GHz (dual-band elements)
• MIMO configuration: 4x4 MIMO for cellular; optional 2x2/3x3/4x4/6x6 for Wi‑Fi/diversity
• Optional GPS/GNSS: integrated element with 26 dB LNA and filtering
• Mounting: hard-mount vehicle roof, mounting hole diameter 1.8 cm
• Dimensions (approx.): 80 mm (H) × 180 mm (L) × 180 mm (W)
• Color: White

How to use

Install the antenna on the vehicle roof using the specified hard-mount hole (1.8 cm diameter) and follow the manufacturer installation instructions for correct cable routing and connector assignments. Connect the four cellular antenna feeds to the router’s corresponding MIMO ports according to the supplied guidance; if using paired 2x2 configurations, ensure the router’s port mapping matches the antenna feed pairing. Fit the optional Wi‑Fi and GPS/GNSS feeds to the appropriate device inputs, observing polarity and connector types. Verify weather seals and torque values where provided in the manual.

Recommendations

Do not use this antenna to provide concurrent or aggregated data operation from two SIMs on the same router because the isolation between MIMO pairs is not sufficient for simultaneous SIM aggregation. For routers using two SIMs in a failover configuration (only one SIM active at a time), the LTE elements can be used as two separate 2x2 MIMO pairs, but network coverage and suitability should be checked before deployment.
