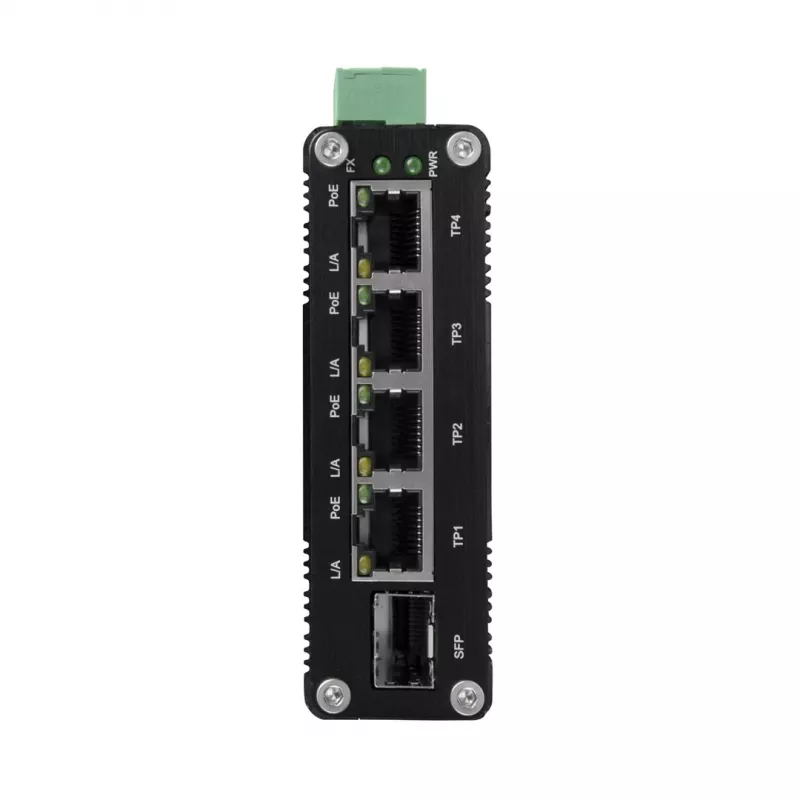

BCS-ISP04G-1SFP priemyselný 4-portový Gigabit PoE+ switch s 1 SFP slotom, neupravovaný, DIN lišta, IP30

The BCS-ISP04G-1SFP is a rugged industrial unmanaged PoE+ switch designed for reliable network connectivity in harsh environments. With 4 Gigabit PoE+ ports and 1 Gigabit SFP slot, it delivers power and data to PoE devices such as IP cameras, wireless access points, and VoIP phones. The switch features a total PoE budget of 120W, with up to 30W per port, and supports redundant DC power input (48-57V). Its IP30-rated metal casing, fanless design, and wide operating temperature range (-40°C to 75°C) make it ideal for industrial automation, surveillance, and outdoor installations.

Advantages

Robust industrial design with IP30 protection and wide temperature tolerance ensures stable operation in extreme conditions. Fanless operation reduces noise and maintenance. PoE+ support simplifies cabling by delivering power and data over a single Ethernet cable. Redundant power input enhances reliability.

Suitable for

• Industrial automation networks
• IP surveillance systems
• Wireless access point deployments
• Outdoor and harsh environment installations
• Transportation and utility infrastructure

Key specifications

• 4x 10/100/1000Base-T PoE+ ports (RJ45)
• 1x 1000Base-X SFP slot
• PoE standard: IEEE 802.3af/at, up to 30W per port
• Total PoE budget: 120W
• Switching capacity: 10 Gbps
• MAC address table: 8K entries
• Jumbo frame support: 9K bytes
• Management: Unmanaged
• Housing: IP30 metal casing
• Mounting: DIN rail / wall mount
• Power input: DC 48-57V (redundant)
• Operating temperature: -40°C to 75°C
• ESD/Surge protection: 6KV
• Fanless design

Recommendations

For optimal performance, use high-quality SFP modules and ensure adequate power supply (48-57V DC). The switch is plug-and-play; no configuration required. Suitable for both indoor and outdoor use when installed in a weatherproof enclosure.
