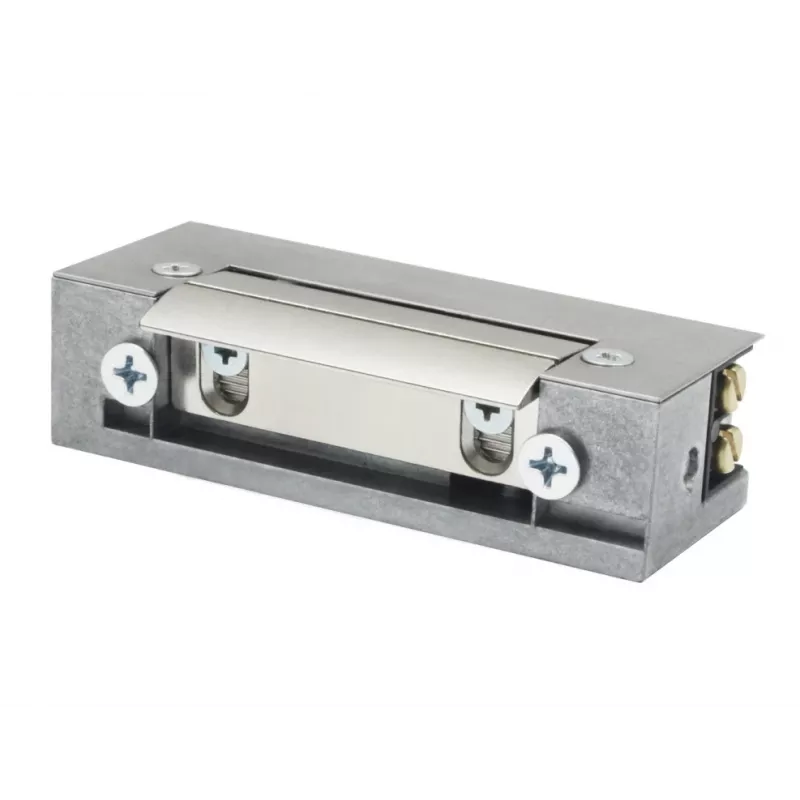

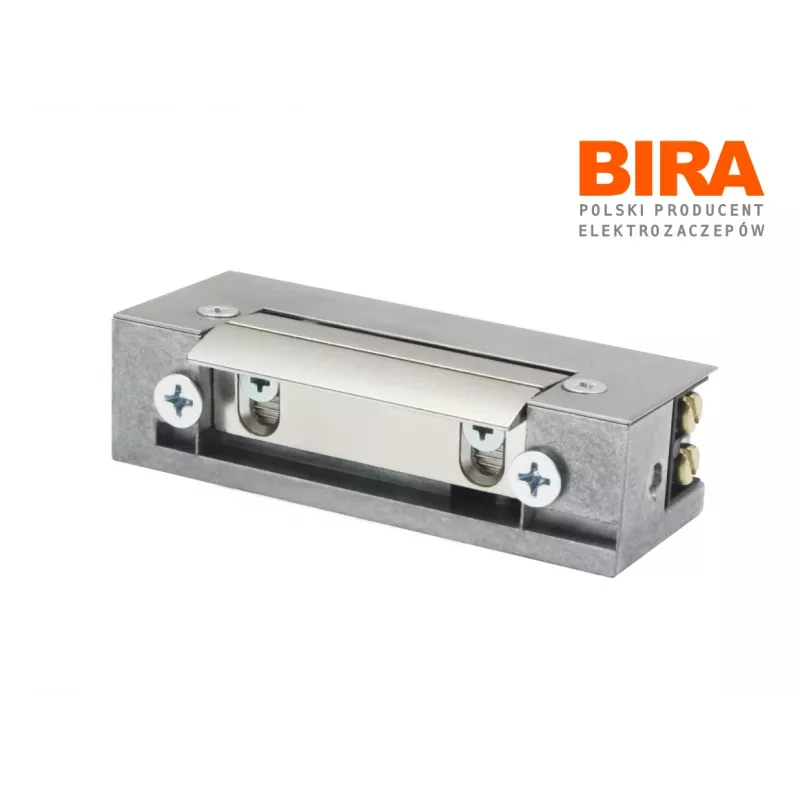

BIRA HARTTE S12UP elektrický otvárač séria S 12V AC/DC s internou pamäťovou funkciou

The BIRA HARTTE S12UP is a high-quality electric strike from the S Series, designed for access control and intercom systems. Operating at 12V AC/DC, this fail-secure strike features internal memory (latching function) to maintain locked status even during power interruptions. With a holding force of 3000 N (approx. 300 kg) and durability of 300,000 cycles, it ensures reliable long-term performance. The universal handing (reversible left/right) and radial latch adjustment of 3 mm make installation flexible. The body is made of zinc alloy with a stainless steel latch, and the product is rated IP20 for indoor use.

Advantages

Internal memory ensures security during power loss; high holding force and durability; universal handing for easy installation; robust materials for longevity.

Suitable for

• Access control systems
• Intercom systems
• Residential and commercial door security

Key specifications

• Operating Voltage: 12V AC/DC
• Operating Mode: Fail-secure (Standard)
• Latching Function: Internal Memory
• Current Consumption (AC): 280 mA
• Current Consumption (DC): 250 mA
• Holding Force: 3000 N
• Durability: 300,000 cycles
• Material: Zinc Alloy (body), Stainless Steel (latch)
• Handing: Universal (Reversible Left/Right)
• Latch Adjustment: Radial, 3 mm
• Mounting Type: Mortise
• Operating Temperature: -10°C to +50°C
• Protection Class: IP20
• Series: S Series

Recommendations

For optimal performance, ensure the power supply matches the 12V AC/DC requirement. Suitable for indoor use only.
