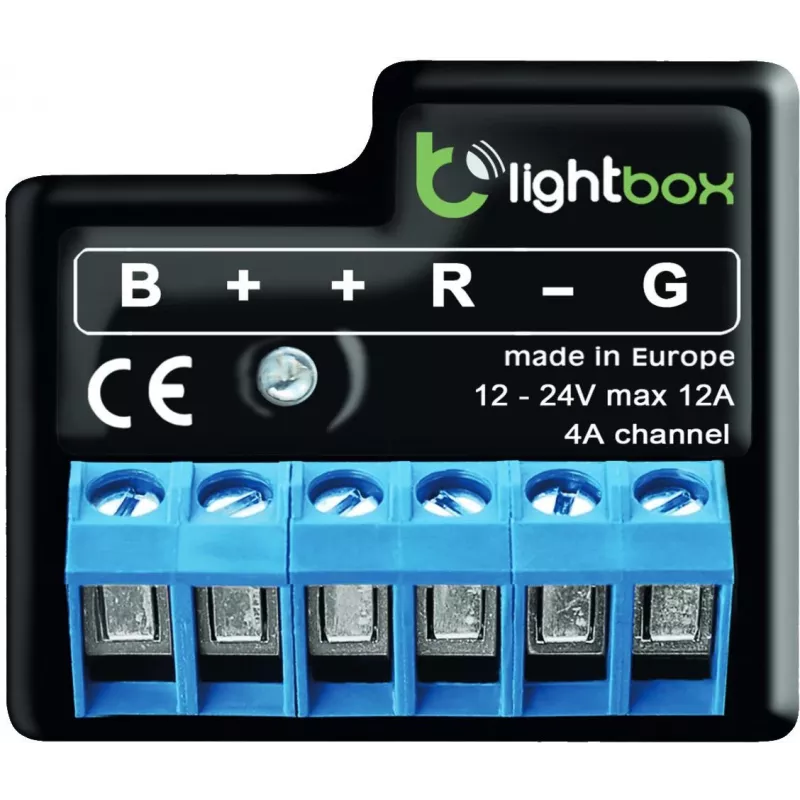

BLEBOX LED Lighting Module Lightbox v4

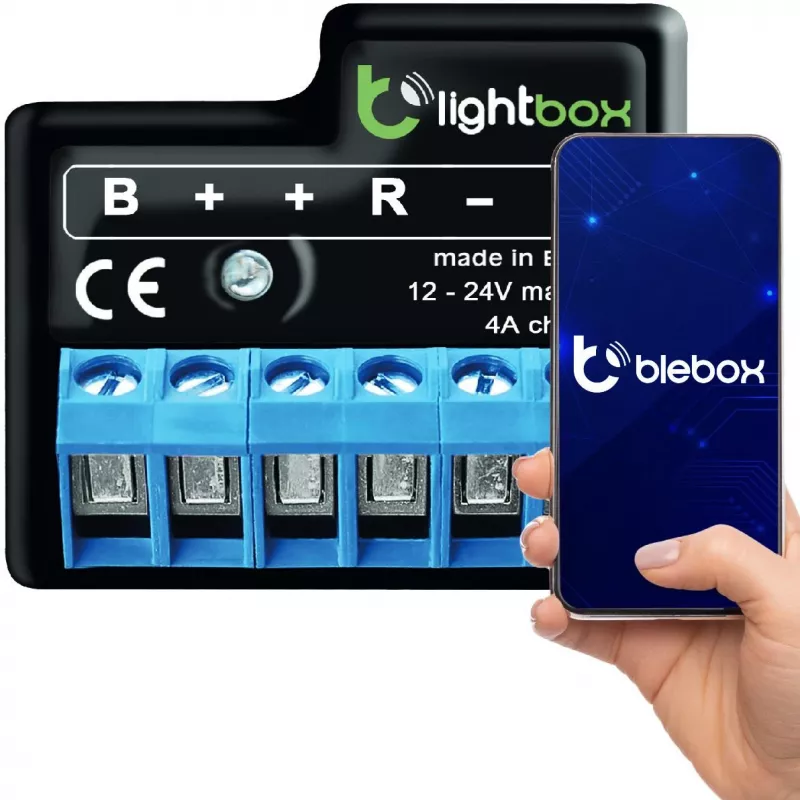

The BLEBOX LED Lighting Module Lightbox v4 is a versatile Wi-Fi controlled LED driver designed for RGB, RGBW, CCT, and single-color LED strips. It enables smart lighting control via the BleBox wBox app, web browser, or REST API, and supports voice assistants like Google Assistant and Amazon Alexa. With 4 output channels, each capable of 3A (12A total), it delivers up to 144W at 12V or 288W at 24V, making it suitable for a wide range of LED lighting projects.

Advantages

Wireless control via Wi-Fi (IEEE 802.11 b/g/n) eliminates the need for physical switches. PWM dimming ensures smooth brightness adjustments. Overload, short-circuit, and overheat protection enhance safety and longevity. OTA firmware updates keep the device up-to-date.

Suitable for

• Smart home lighting systems
• RGB/RGBW LED strip installations
• CCT tunable white lighting
• Single-color LED strip control
• DIY and professional lighting projects

Key specifications

• Connectivity: Wi-Fi 2.4 GHz (802.11 b/g/n)
• Input Voltage: 12-24V DC
• Output Channels: 4
• Max Output Current per Channel: 3A
• Max Total Output Current: 12A
• Max Output Power: 144W (12V) / 288W (24V)
• Dimming: PWM
• Control: BleBox wBox App, Web, REST API
• Voice: Google Assistant, Amazon Alexa
• Operating Temperature: -20°C to 50°C
• Housing: ABS Plastic
• Mounting: Surface mount (screw terminals)
• Standby Power: <1W

Recommendations

Ensure your power supply matches the voltage and current requirements. For optimal performance, use with compatible LED strips and a stable 2.4 GHz Wi-Fi network.
