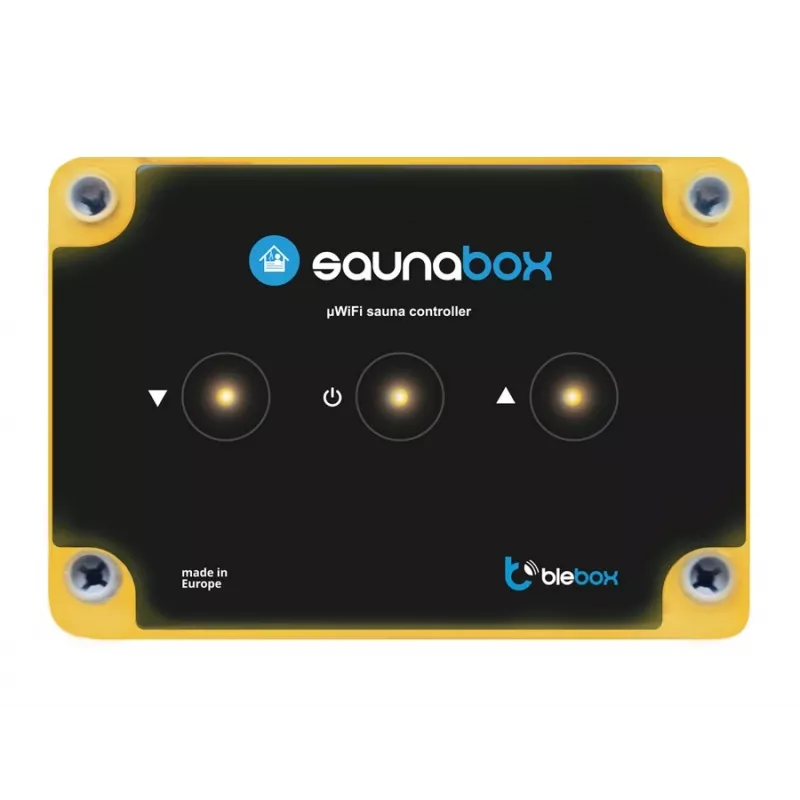

bleBox saunaBox ovládač sauny

The bleBox saunaBox is a sauna control module that lets you manage your sauna remotely or directly via touch buttons on the device. It supports temperature monitoring and scheduling, and can be controlled from a smartphone, tablet, or computer.

Key features

• Control your sauna from anywhere in the world
• Set or check temperature remotely via smartphone or directly with touch buttons
• Visual display of current temperature
• Scheduling function
• Two-way encrypted transmission with confirmation
• Communication modes: direct connection (Access Point), WiFi via standard router, or Internet access
• Compatible with Apple iPhone, Apple iPad, iPad Mini, Android, computers and mobile devices supporting HTML5

Specifications

• Power supply: 1x230V (single-phase) or 3x230V (three-phase)
• Power consumption: below 1W
• Output type: relay
• Maximum load: 3 x 16A
• Number of inputs: 1
• Input type: temperature measurement probe
• Galvanic isolation: No
• Housing: surface-mounted box, controller encapsulated in halogen-free polyurethane composition, self-extinguishing for thermal class B (130°C)
• IP class: IP44
• Dimensions: 129 x 89 x 57 mm
• Transmission frequency: 2.4GHz
• Transmission standard: μWiFi, compatible with WiFi
• Measurement range: -55°C to 125°C
• Measurement accuracy: ± 0.5°C in range from -10°C to 85°C
• Probe type: wired, waterproof, cable length 5m
• Encryption: WPA2-PSK and authenticated encryption (AEAD)
• Number of control outputs: 3
• Maximum power: 3680VA (3680W for resistive load e.g. heater)
• Control input type: temperature measurement probe
