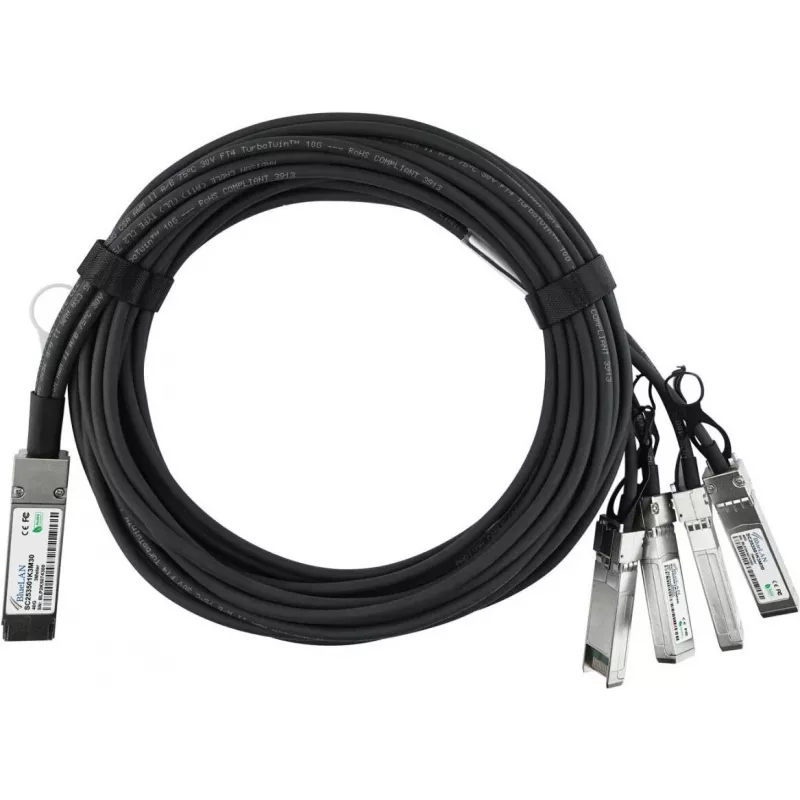

BlueLAN 40G-DACP-QSFP4SFP1M-BL QSFP+ na 4x SFP+ pasívny Direct Attach Copper breakout kábel, 1 m

The BlueLAN 40G-DACP-QSFP4SFP1M-BL is a high-performance passive Direct Attach Copper (DAC) breakout cable designed for 40 Gigabit Ethernet applications. It connects a QSFP+ port to four SFP+ ports, providing a cost-effective and low-power solution for data center and enterprise networking.

Advantages

This cable offers reliable 40 Gbps connectivity with minimal power consumption. Its passive design ensures zero power draw, making it an energy-efficient choice for high-density environments. The breakout configuration allows seamless integration with existing 10G infrastructure, simplifying network upgrades.

Suitable for

• Data centers requiring high-speed interconnects
• High-performance computing (HPC) clusters
• Enterprise network top-of-rack switching
• 40G to 10G migration scenarios

Key specifications

• Cable Type: Direct Attach Copper (DAC)
• Configuration: QSFP+ to 4x SFP+ Breakout
• Data Transfer Rate: 40 Gbps
• Connector A: QSFP+
• Connector B: 4x SFP+
• Cable Length: 1 meter (3.3 feet)
• Cable Material: Copper
• Transceiver Type: Passive
• Compatibility Standard: MSA Compliant
• Hot-Swappable: Yes
• Power Consumption: Low (passive)
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Voltage Supply: 3.3V
• Certifications: RoHS, CE, FCC

Recommendations

For optimal performance, ensure that both the QSFP+ and SFP+ ports are compatible with MSA-compliant modules. This cable is ideal for short-distance interconnects within racks or between adjacent racks.
