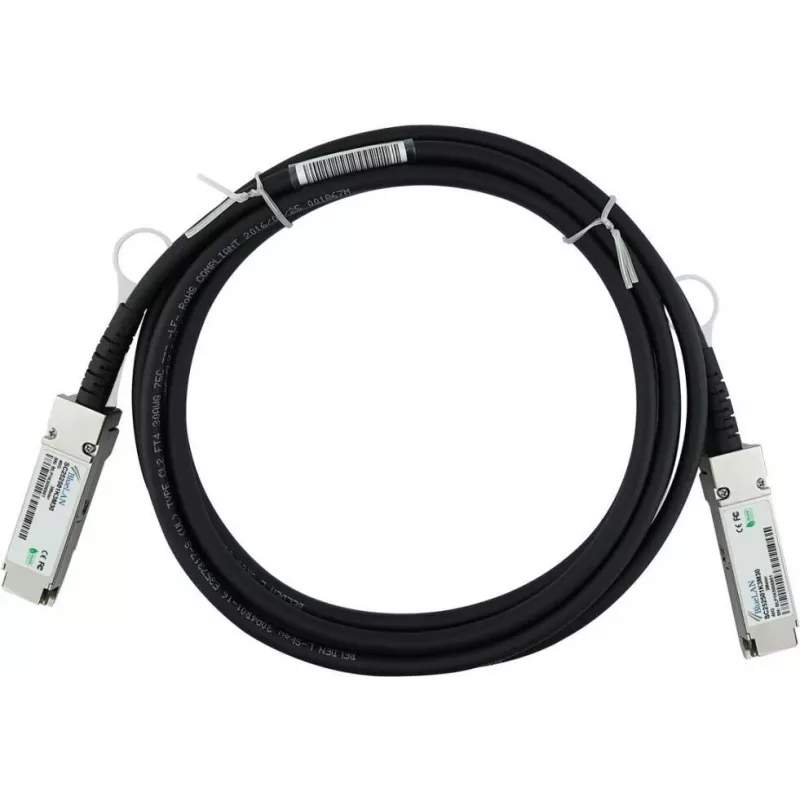

BlueLAN QSFP na QSFP Direct Attach medený kábel, 40GBASE-CR4, 5 m, pasívny, 28AWG

The BlueLAN 20G-DACP-QSFP1SFPDD5M-BL is a high-performance QSFP to QSFP Direct Attach Copper (DAC) cable, designed for reliable, low-latency connections in data centers and high-performance computing environments. This passive copper cable supports data rates up to 56 Gbps and is compliant with 40GBASE-CR4 standards, making it ideal for InfiniBand FDR and 56 Gigabit Ethernet applications.

Advantages

This DAC cable offers a cost-effective and energy-efficient solution for short-range interconnects. Its passive design ensures zero power consumption, while the 28AWG construction provides flexibility and durability. Hot-pluggable functionality simplifies installation and maintenance.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Network infrastructure upgrades requiring 56 Gbps throughput
• InfiniBand FDR and 56 Gigabit Ethernet networks

Key specifications

• Connector Type: QSFP to QSFP
• Data Rate: 56 Gbps
• Cable Length: 5 meters
• Cable Type: Passive Copper
• AWG: 28
• Impedance: 100 Ohm
• Compliance: RoHS
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C

Recommendations

For optimal performance, ensure compatibility with your network equipment. This cable is designed for use with BlueLAN QSFP ports and is backward compatible with 40GBASE-CR4 interfaces.
