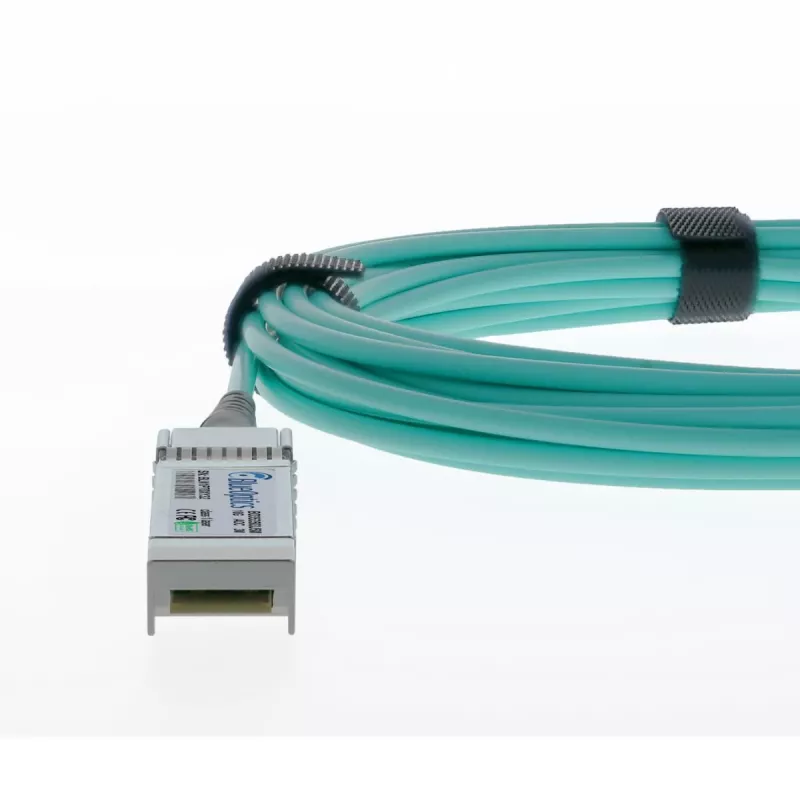

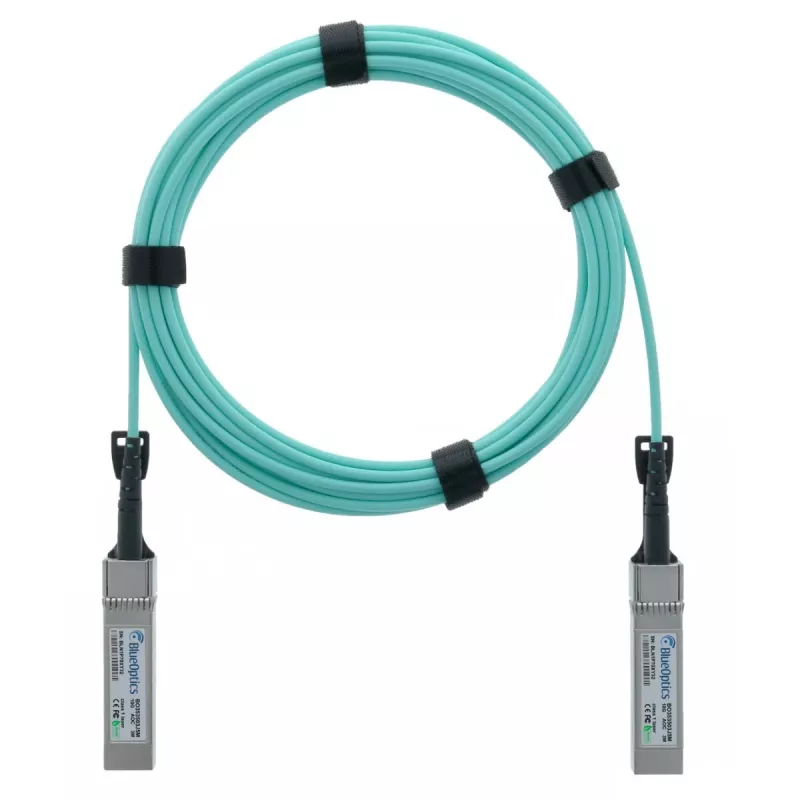

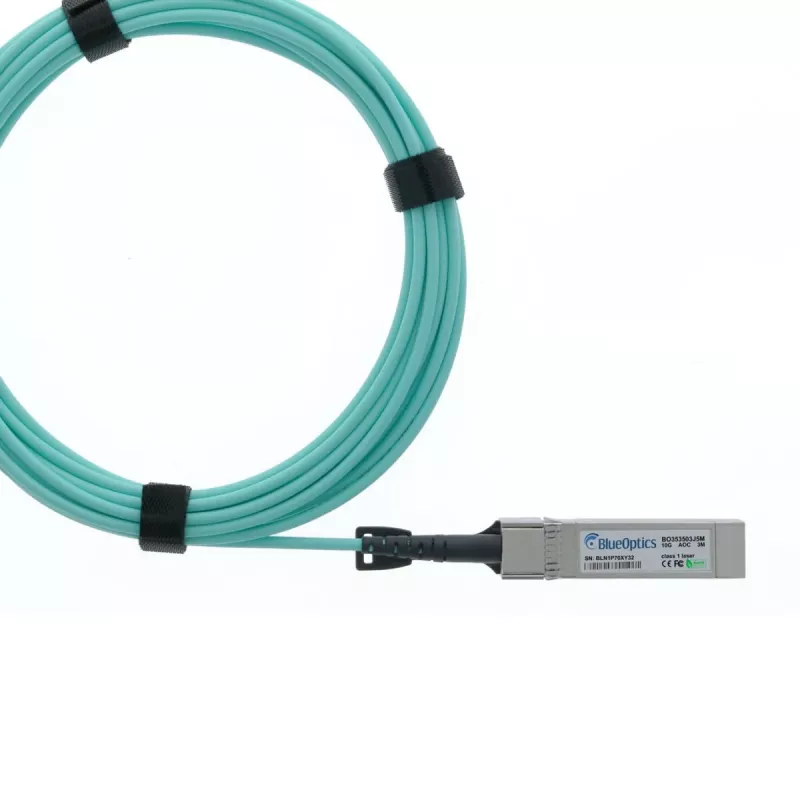

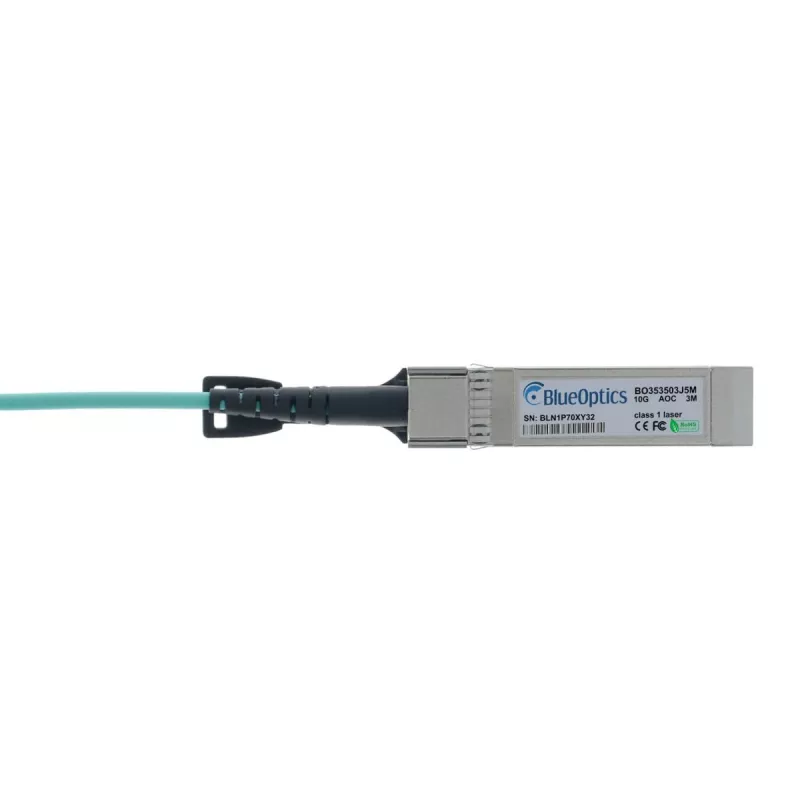

BlueOptics AOC SFP+ 10G 5m Active Optical Cable kompatibilný s Ruckus 10G-SFPP-AOC-0501

The BlueOptics AOC SFP+ active optical cable provides a high-performance, cost-effective solution for 10 Gigabit Ethernet connections. Designed to be fully compatible with Ruckus 10G-SFPP-AOC-0501, this plug-and-play cable integrates SFP+ transceivers at both ends, eliminating the need for separate transceivers and fiber patch cables. With a length of 5 meters, it is ideal for short-range interconnects within data centers, server rooms, and storage area networks.

Advantages

This active optical cable offers ultra-low latency, low power consumption (<1W per end), and hot-swappable functionality. The LSZH jacket ensures safety in enclosed spaces, while MSA compliance guarantees interoperability with a wide range of networking equipment. It supports Ethernet, Fibre Channel, and InfiniBand protocols, making it versatile for various applications.

Suitable for

• Data center interconnect (DCI)
• Server-to-switch connections
• Storage area networks (SAN)
• High-performance computing clusters

Key specifications

• Cable Type: Active Optical Cable (AOC)
• Connector Type: SFP+ to SFP+
• Data Rate: 10 Gbps (10GbE)
• Cable Length: 5 meters
• Compatibility: Ruckus 10G-SFPP-AOC-0501 compatible, MSA Compliant
• Hot-Swappable: Yes
• Power Consumption: <1W per end
• Cable Material: Fiber Optic
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Protocol Support: Ethernet, Fibre Channel, InfiniBand
• Voltage: 3.3V
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, FCC
• Media Type: Multi-Mode Fiber (MMF)
• Duplex Mode: Full-Duplex
• Transceiver Type: Integrated SFP+
• Latency: Ultra-low

Recommendations

For optimal performance, ensure that the cable is not bent beyond its minimum bend radius and that connectors are kept clean. This cable is an excellent choice for upgrading existing 1G links to 10G without replacing the entire infrastructure.
