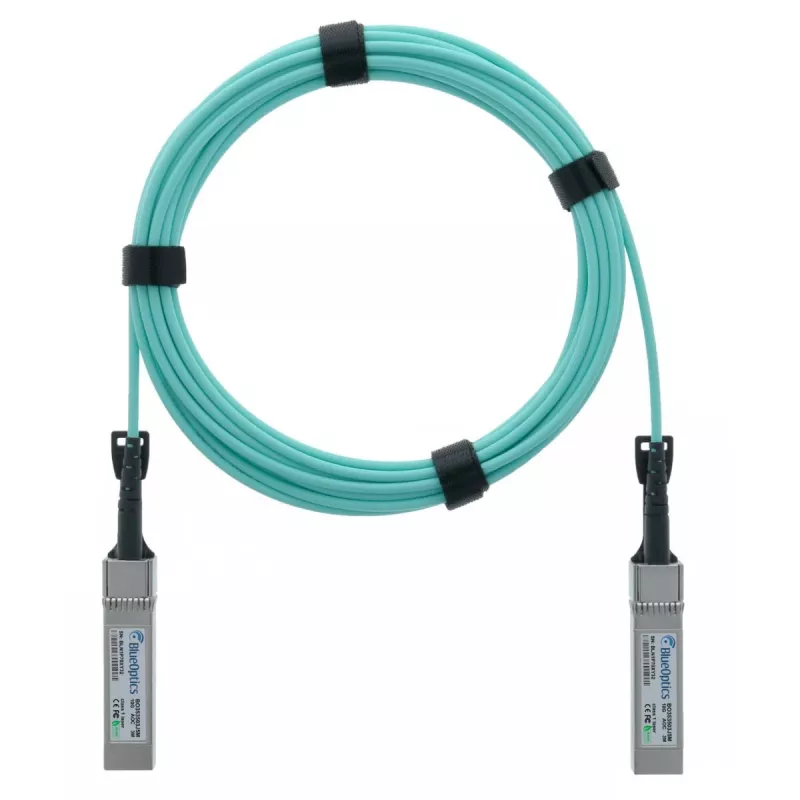

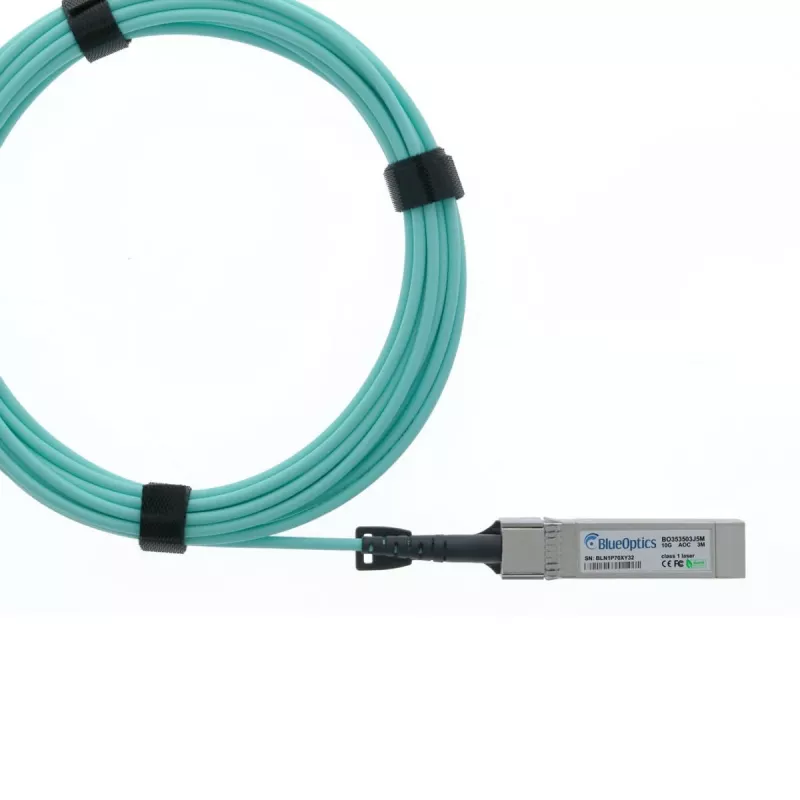

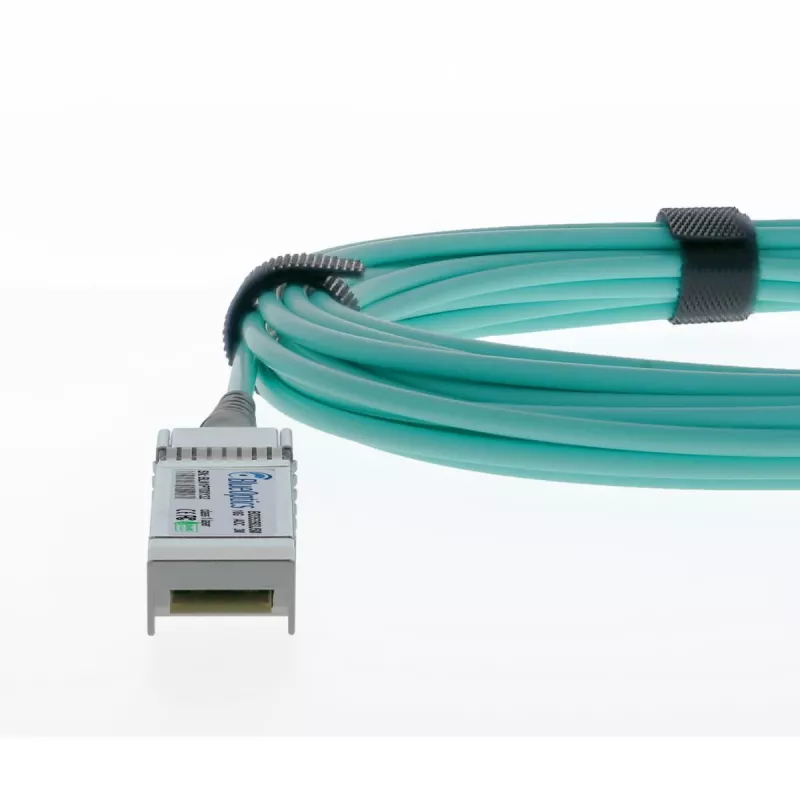

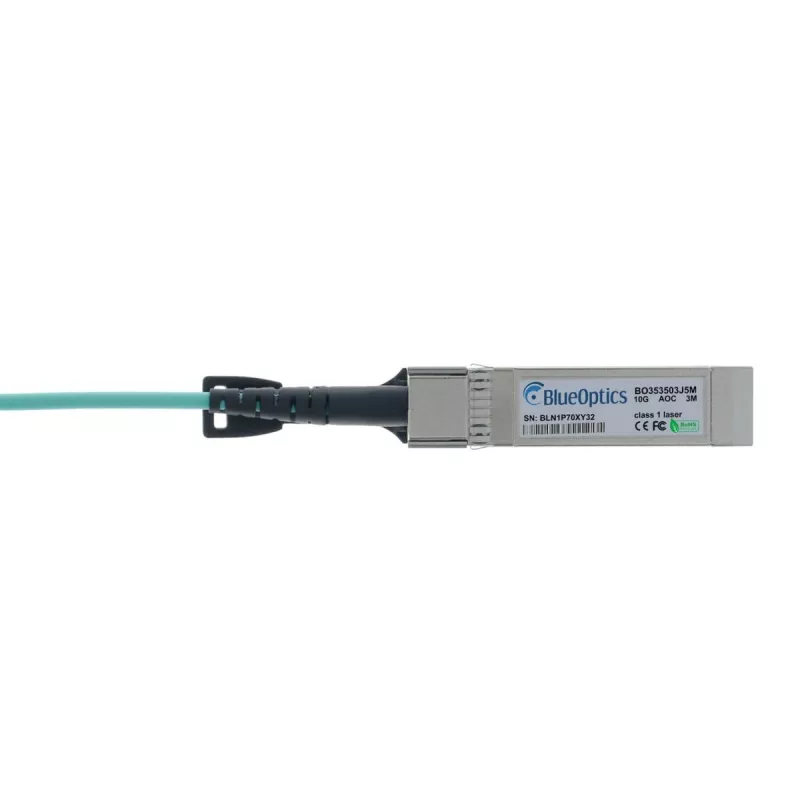

BlueOptics AOC SFP+ Active Optical Cable 10m kompatibilný so Synology SFP-AOC-10G-10M

The BlueOptics AOC SFP+ Active Optical Cable (AOC) provides a high-performance, cost-effective solution for 10 Gigabit Ethernet connections. Designed as a compatible alternative to the Synology SFP-AOC-10G-10M, this 10-meter cable integrates optical transceivers and a fiber optic link into a single, hot-swappable assembly. Ideal for data centers, NAS environments, and high-performance computing, it delivers reliable, low-power connectivity with digital diagnostics monitoring support.

Advantages

This active optical cable offers several key benefits: it eliminates the need for separate transceivers and patch cables, reducing complexity and potential points of failure. The integrated design ensures optimal signal integrity over the 10-meter distance, while the low power consumption (<1W) helps minimize energy costs. Hot-swappable capability allows for easy installation and maintenance without powering down connected equipment.

Suitable for

• Data center interconnects
• Network Attached Storage (NAS) systems
• High-Performance Computing (HPC) clusters
• Enterprise network uplinks

Key specifications

• Product Type: Active Optical Cable (AOC)
• Connector Type: SFP+ to SFP+
• Data Rate: 10 Gigabit Ethernet (10GbE)
• Cable Length: 10 meters
• Compatibility: Synology SFP-AOC-10G-10M (compatible alternative)
• Transceiver Form Factor: SFP+
• Cable Media: Fiber Optic
• Hot-Swappable: Yes
• Power Consumption: <1W (typical)
• Supported Protocols: Ethernet, Fibre Channel, InfiniBand
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Compliance: RoHS, CE, FCC
• Digital Diagnostics Monitoring (DDM): Supported
• Voltage Supply: 3.3V
• Wavelength: 850nm (VCSEL-based)

Recommendations

For optimal performance, ensure that both connected devices support SFP+ 10GbE interfaces. This cable is a direct replacement for Synology SFP-AOC-10G-10M and is fully compatible with Synology NAS models that have SFP+ slots. Always handle fiber optic cables with care to avoid damage.
