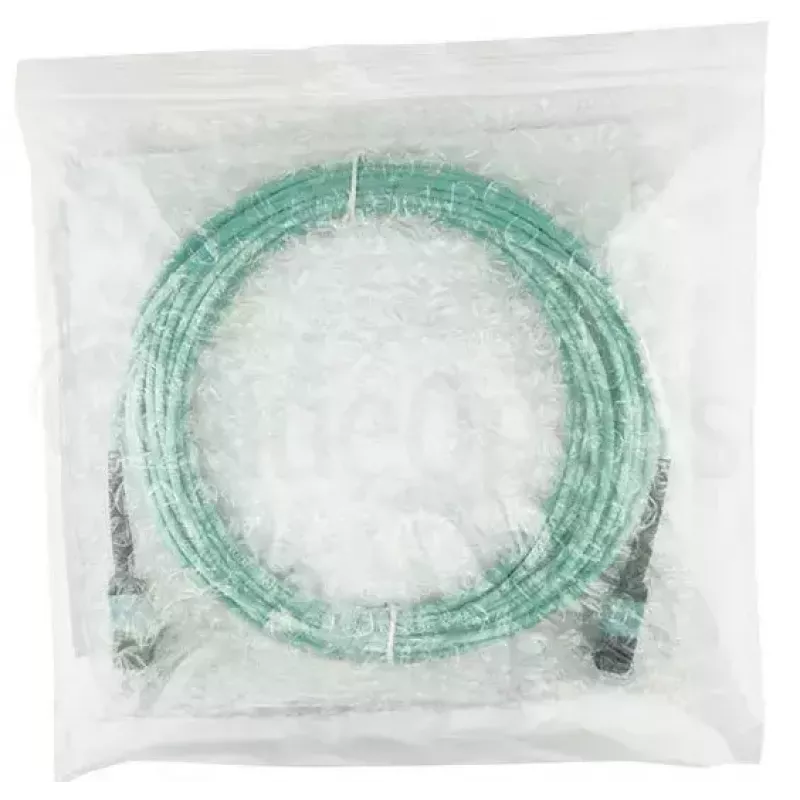

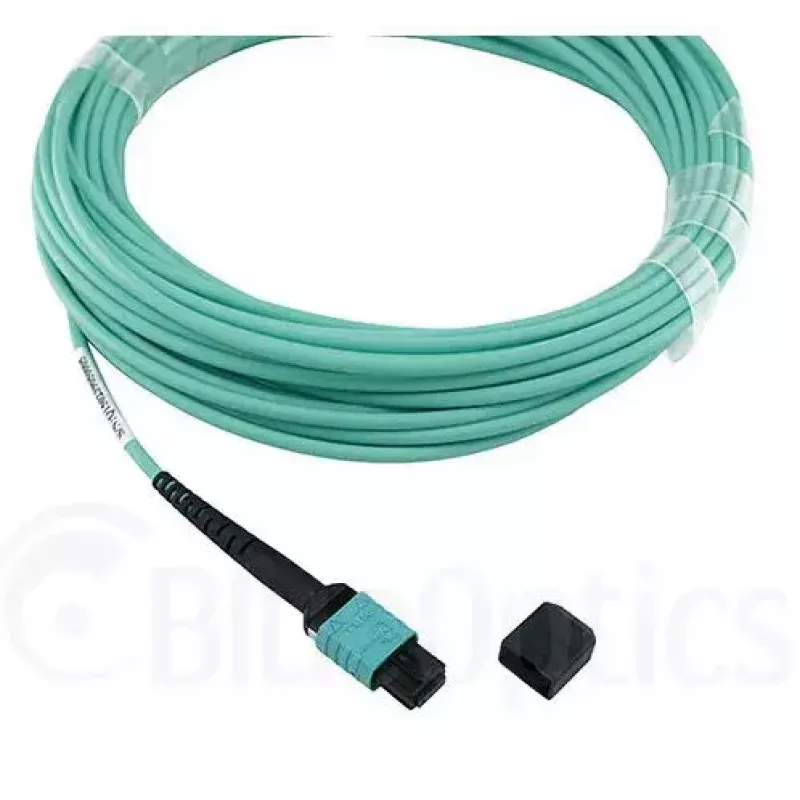

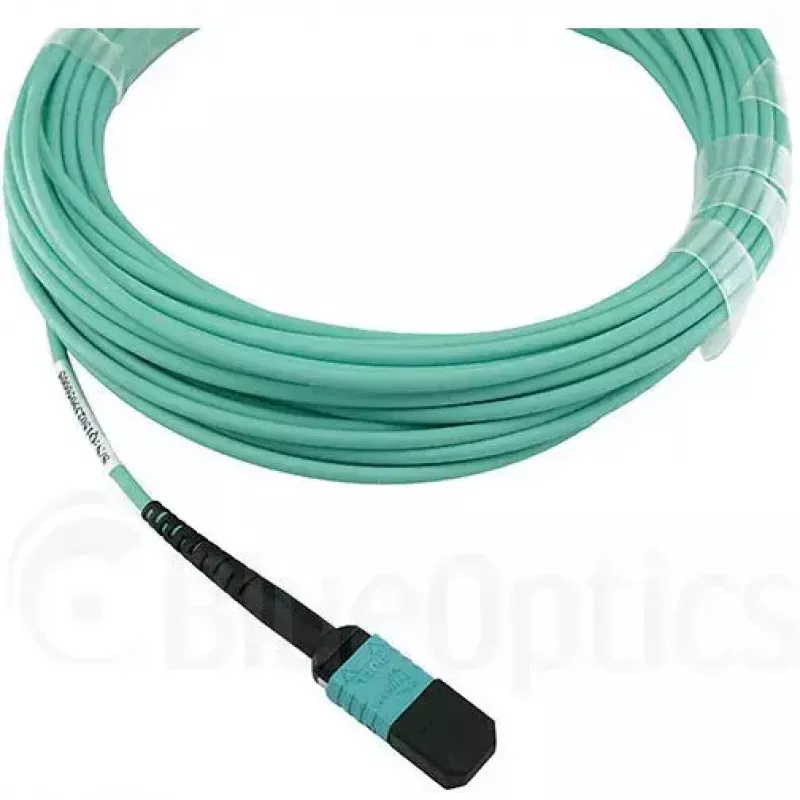

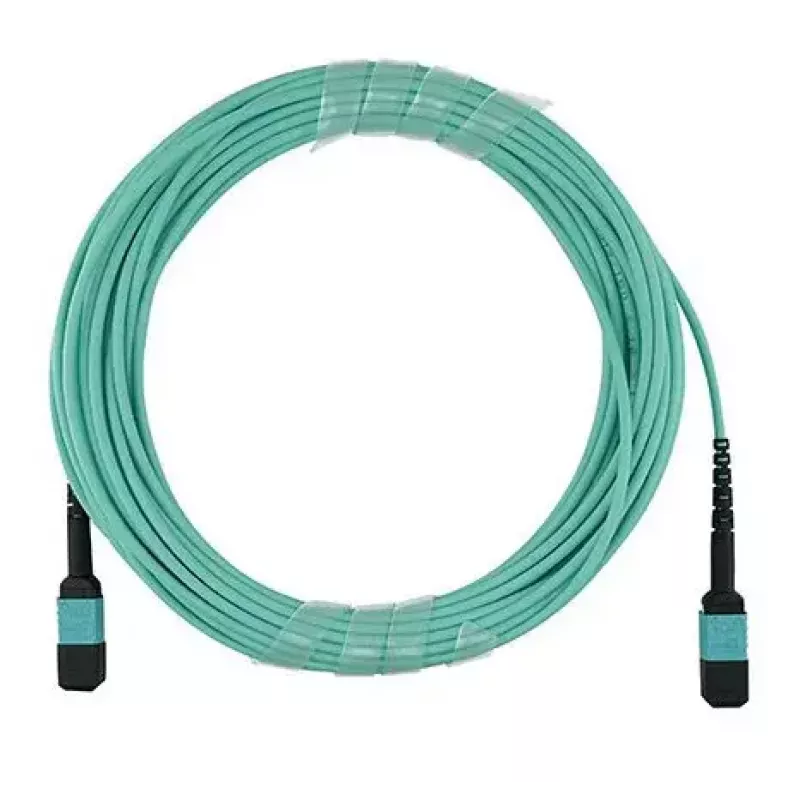

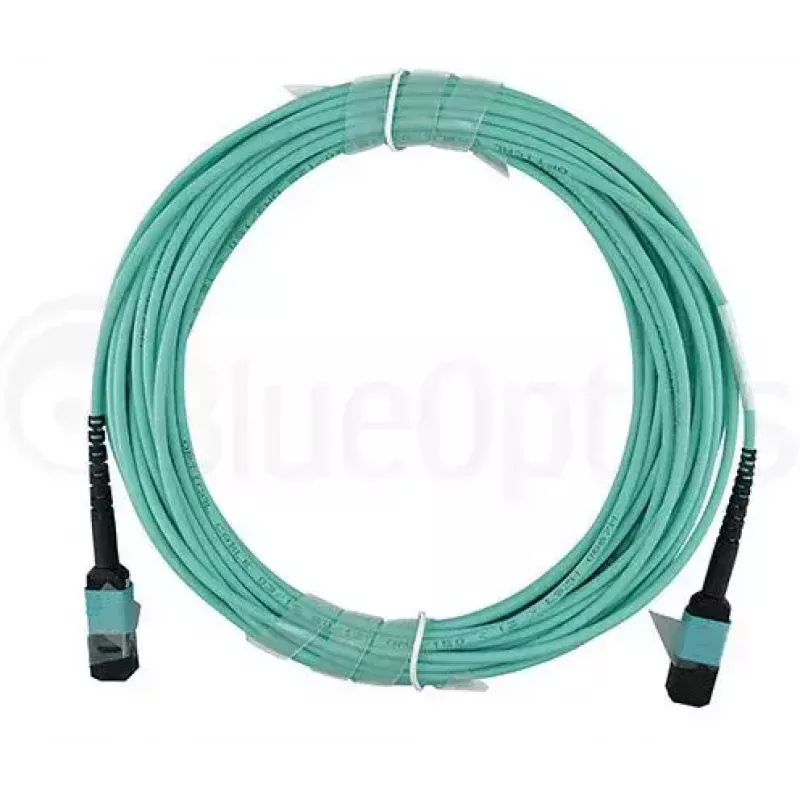

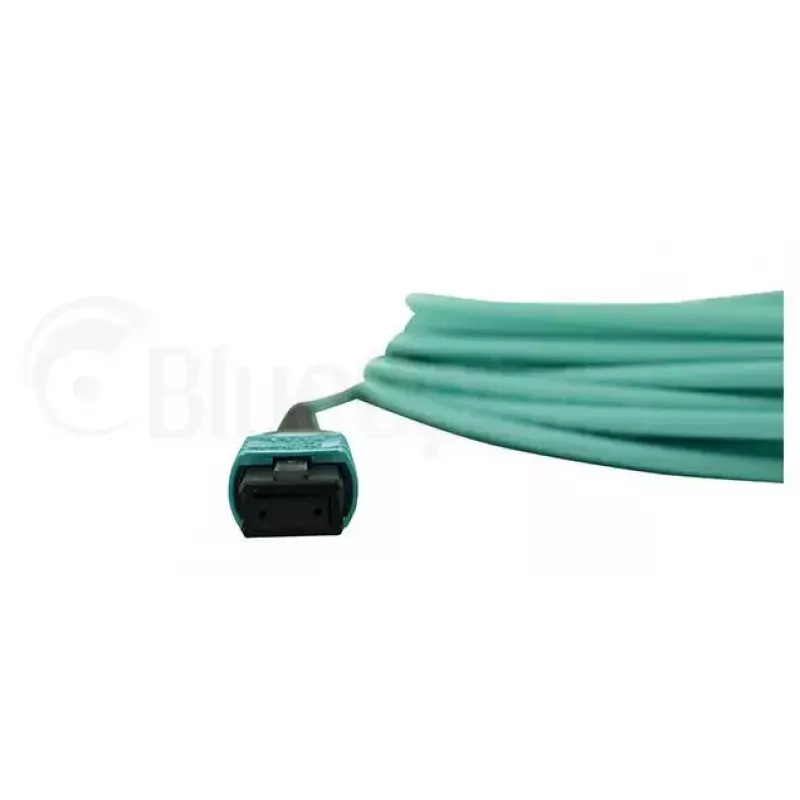

BlueOptics AT-MTP12-10 InfiniBand optický kábel 10 m OM3 MTP

The BlueOptics AT-MTP12-10 InfiniBand fibre optic cable 10 m OM3 MTP is a multi-fibre assembly designed for high-speed data transmission in InfiniBand networks and other high-performance computing environments. This 10-metre OM3 cable uses MTP connectors to provide dense, reliable connections suitable for parallel optics and multi-channel links. The cable supports full duplex communication and has a core diameter of 125 µm, compatible with standard multimode transceivers and patch panels.

Advantages

The BlueOptics AT-MTP12-10 delivers consistent signal integrity over 10 metres with OM3 multimode performance optimized for 10 Gigabit and higher data rates. MTP connectors allow for compact, high-density terminations and simplified installation in racks and patch frames. The cable construction and connector design reduce insertion loss and back reflection, helping maintain link performance in InfiniBand and data centre applications.

Suitable for

• InfiniBand interconnects and high-performance computing clusters
• Data centre fibre backbones and patching between switches and servers
• Parallel optics arrays and multi-channel transceiver connections
• Rack-to-rack and cabinet-level fibre routing where high density is required

Key specifications

• Length: 10 m
• Fibre type: OM3 multimode
• Core diameter: 125 µm
• Connector type: MTP (multi-fibre push-on)
• Transmission mode: Full duplex
• Designed for high-speed data rates typical of InfiniBand and Ethernet applications

How to use

Route the BlueOptics AT-MTP12-10 cable between panels, switches, or transceivers ensuring minimum bend radius is observed to prevent increased attenuation. Align and insert MTP connectors into compatible MTP adapter ports, securing any latch or retention mechanism. Verify link integrity using an appropriate fibre tester or by checking network link status. If connecting to transceivers that require polarity or ribbon orientation, confirm correct end-to-end mapping before commissioning.

Recommendations

Store and install the cable in a clean environment and avoid contaminating connector endfaces; use dust caps when connectors are not mated. Maintain bend radius and avoid tight ties or kinks. For optimal performance in high-density systems, use rated MTP adapters and follow equipment vendor guidelines for connector polarity and fibre mapping.
