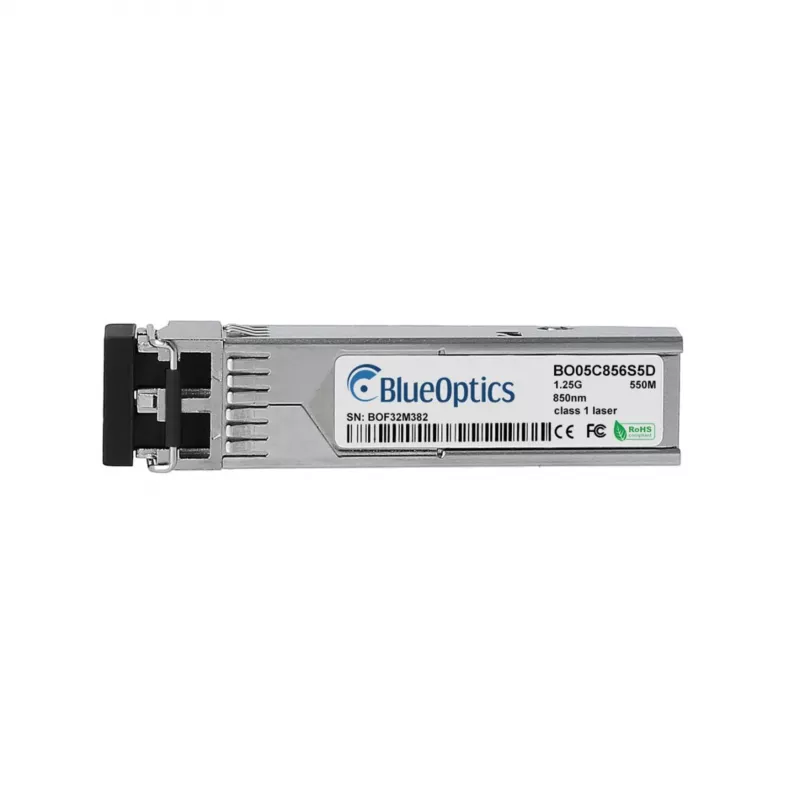

BlueOptics BO05C856S5D kompatibilný SFP transceiver, 1000BASE-SX, LC Duplex, 850nm, 550m, Multimode

The BlueOptics BO05C856S5D is a high-performance SFP transceiver designed to be fully compatible with Finisar FTLF8519P2BNL and other MSA-compliant devices. It delivers reliable Gigabit Ethernet connectivity over multimode fiber, making it an ideal solution for enterprise networks, data centers, and telecommunications applications.

Advantages

This transceiver offers cost-effective compatibility without compromising performance. It supports hot-plug installation, digital diagnostic monitoring (DDM) for real-time network management, and low power consumption under 1W. The 850nm wavelength and LC duplex connector ensure seamless integration with existing 1000BASE-SX infrastructure.

Suitable for

• Gigabit Ethernet connections in LANs and data centers
• Upgrading or expanding fiber optic networks
• Replacement or spare for Finisar FTLF8519P2BNL modules
• Short-range multimode fiber links up to 550m

Key specifications

• Transceiver Type: SFP
• Data Rate: 1.25 Gbps
• Standard: 1000BASE-SX
• Wavelength: 850 nm
• Max Distance: 550m over OM2/OM3 MMF
• Connector: LC Duplex
• Fiber Type: Multimode
• DDM/DOM: Yes
• Hot-Pluggable: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 1W
• Compliance: MSA, RoHS

Recommendations

For optimal performance, use with OM3 or OM4 multimode fiber cables. Ensure your network equipment supports SFP modules and 1000BASE-SX standard. This transceiver is a direct replacement for Finisar FTLF8519P2BNL and is tested for full compatibility.
